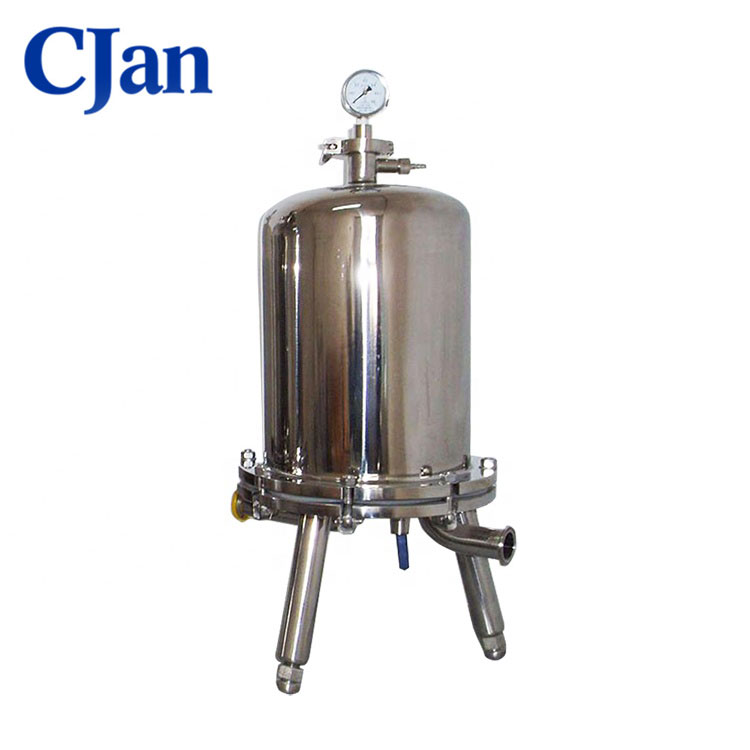

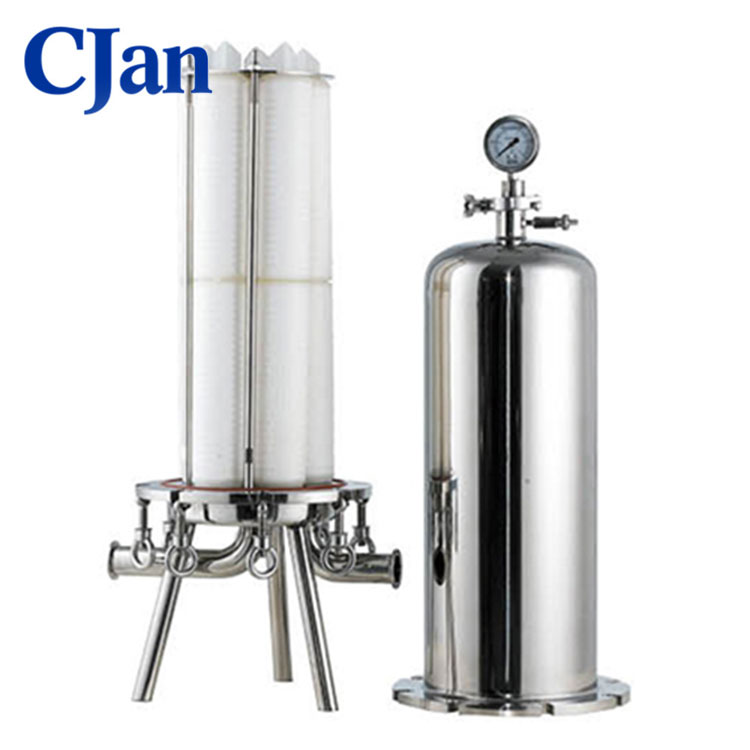

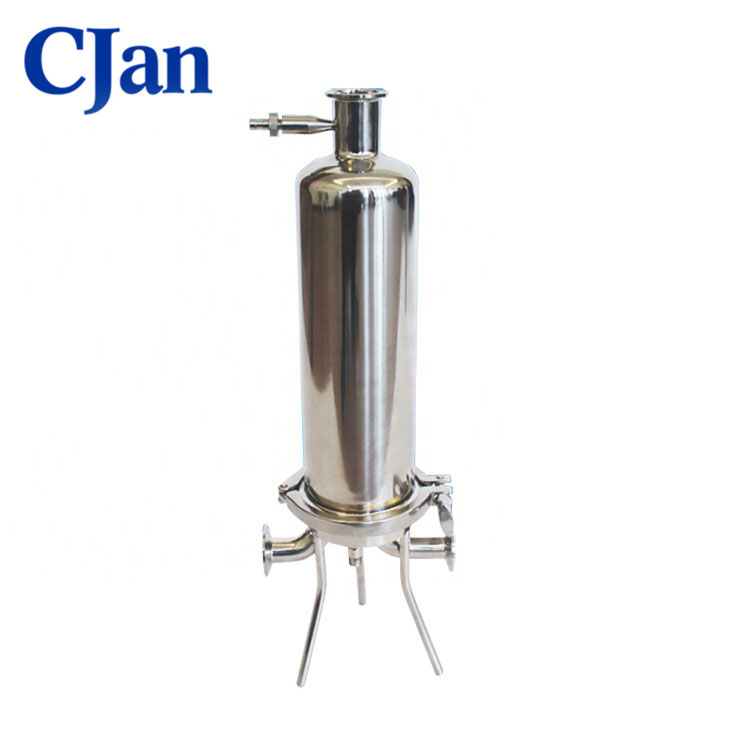

Sanitary Stainless Steel Cartridge Filter Housing

(0 reviews)

109 USD

(473) Views

(0) Contacts

Category: Cartridge Filter Housings

Piece/10.0 pieces

$109.00

Contact Company

CJan Fluid Technology Co., Ltd.

Shanghai, China

visit website

(1519) Views

(34) Contacts

Product Overview

Stainless steel microporous filter for the aseptic liquid filtration and fine filtration, all materials in contact with the material liquid by SS316 or SS304 stainless steel materials manufacturing, and mechanical and electrolytic polishing can provide excellent durability and biggest pit corrosion resistance.
Structure without a healthy dead Angle, the filter drain valve, relief valve, imported material liquid, and filter plugs are easy to clean, can be completely sterilized healthily, drain thoroughly, no residual liquid.

Technical parameters

Import and export: flange, Tri-clamp, welding
Pressure gauge interface: DN38 Tri-clamp
Cylinder connection: flange, Tri-clamp
Filter port: plug in 222, in 226, 215, 220, M30

Operating conditions

Sterilization: 121℃/30Min
Clamp and bolt: SS304
Filter specifications: 5”, 10”, 20”, 30”, 40”
Filtration precision: 0.05um,0.1um,0.22um,0.45um,1.0um,5um
The maximum operating pressure: 0-2.0MPa
The filter shell: SS316L, SS304

Cylinder seals

Silicone rubber, fluorine rubber, epdm rubber, PTFE

Surface polishing

Mechanical or electrolytic polishing, casing surfaceRa<0.4um

Filter element

PP,PTFE,PSE,CA

                                                            After Warranty Service
                                                            Online support

                                                            Warranty of core components
                                                            Not Available

                                                            Core Components
                                                            Filter

                                                            Warranty
                                                            1 Year

                                                            Type
                                                            Liquid Filter
