PP Sediment Pleated Filter Cartridge

(0 reviews)

Get Price

(492) Views

(0) Contacts

Contact Company

Guangzhou Myteck Machinery Co., Ltd.

messages.no address inserted..

(1809) Views

(1) Contacts

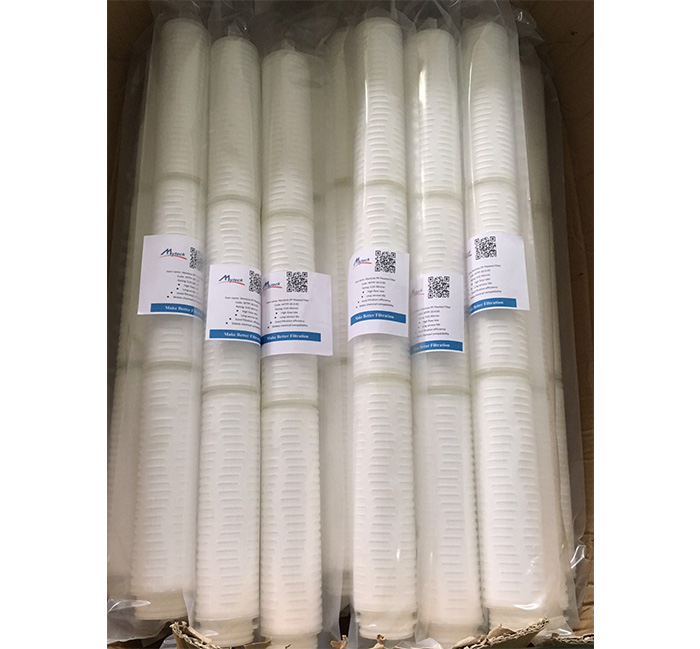

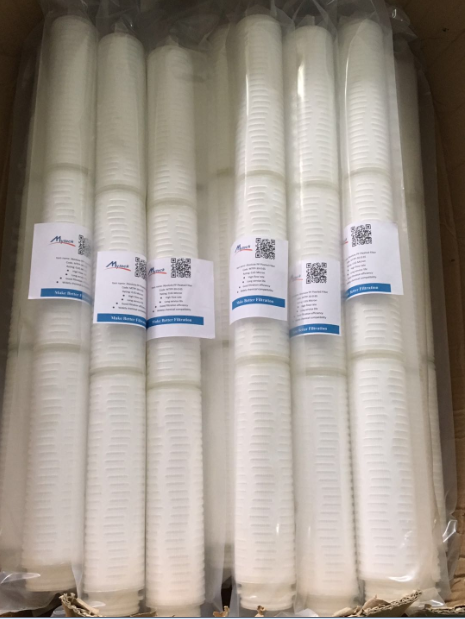

The pleated filter cartridge has a better filtration effect and larger filtration area and longer service life than the melt-blown PP filter.

Features:
1. Wide chemical compatibility, high water output, low-pressure difference, long service life, cheap price.
2. Wide selection of filtration precision from 0.1μm to 60μm.
3. High pressure disinfection and steam sterilization.
Integrity Test: (min bubble, 25℃, 95% isopropyl alcohol)
0.10μm≥0.018Mpa
0.20μm≥0.014Mpa
0.45μm≥0.008Mpa

                                                            Filtration precision
                                                            0.1μm, 0.22μm, 0.45μm, 1μm, 3μm, 5μm, 10μm, 20μm, 60μm

                                                            Main fin types
                                                            triangle, half circle, flat end

                                                            Effective filtration area
                                                            ≥0.65m2

                                                            Main connectors
                                                            220, 215, 222, 226

                                                            length
                                                            2.5"-40"

                                                            Normal working temperature
                                                            ≤55°

                                                            PH value
                                                            1-13

                                                            Highest working temperature
                                                            80° (ΔP≤0.1Mpa)

                                                            Steam sterilization
                                                            121±2℃ 30 minutes

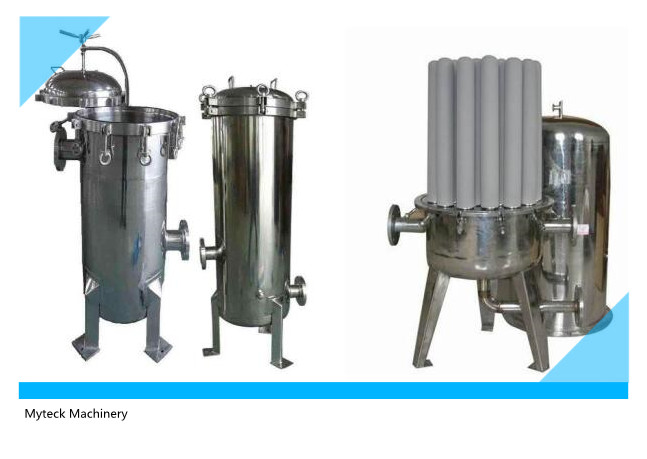

Industrial water purification systems of water and drinks factories before RO membrane to protect RO membrane from being damaged, so-called security filter or precision filter.
The water purification systems of other industries, like pharmaceutical factories, electronics factories, and wastewater treatment.
