Saudi Pipe Systems Company (SPS co.) ( 30 Years )
(0 reviews)

Contact Company

Company Overview.

Company Album
Basic Information.

One of Saudi Arabia's top producers of water pipe systems is Saudi Pipe Systems Company (SPS Co.). In the industrial city of Jeddah, it has successfully created its own factories. SPS Co. was successfully granted an ISO 9001:2000 certification for its products, which are produced in compliance with international standards."SPS is committed to excellence in supplying products and services of the highest quality with maximum regard and respect to the environment," reads the SPS Company Policy. Phase 4 of Jeddah's industrial zone region is home to the four (4) main manufacturing facilities that make up Saudi Pipe Systems Company (SPS Co.).Factory of SPS valves:All varieties of valves, pipe fittings, pipe clamps, and flanges—all necessary components for water, sewage, firefighting, and central air conditioning systems—are processed and manufactured at this business.SPS Foundry Casting Factory: This foundry casting factory specializes in producing designed castings for a wide range of .... Show More

One of Saudi Arabia's top producers of water pipe systems is Saudi Pipe Systems Company (SPS Co.). In the industrial city of Jeddah, it has successfully created its own factories. SPS Co. was successfully granted an ISO 9001:2000 certification for its products, which are produced in compliance with international standards.
"SPS is committed to excellence in supplying products and services of the highest quality with maximum regard and respect to the environment," reads the SPS Company Policy. Phase 4 of Jeddah's industrial zone region is home to the four (4) main manufacturing facilities that make up Saudi Pipe Systems Company (SPS Co.).
Factory of SPS valves:
All varieties of valves, pipe fittings, pipe clamps, and flanges—all necessary components for water, sewage, firefighting, and central air conditioning systems—are processed and manufactured at this business.
SPS Foundry Casting Factory:
This foundry casting factory specializes in producing designed castings for a wide range of metals, including copper, aluminum, and cast iron. It produces both ferrous and non-ferrous metals. This plant features three (3) induction furnaces, each with a melting capability of two tons per hour, and a fully automated casting manufacturing line. The factory is also fully equipped with all the tools required for core making, finishing, and pattern making. Additionally, it has a quality control laboratory of its own, managed and overseen by engineers and staff who are highly certified, knowledgeable, and skilled.

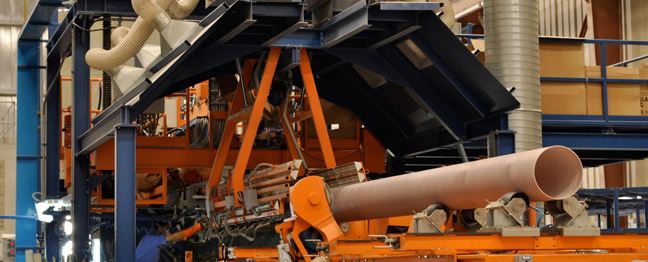

GRP factory:
Due to the rising cost of steel pipes, which has been rising over the past few years, as well as the various issues that arise during handling and installation, as well as issues caused by corrosion, lining failures, and unreliable joints, SPS established a factory that produces the highest quality fiberglass reinforced polyester (FRP) pipes. Its design ethos aims to offer goods with the necessary safety margin and appropriate features. This will allow the pipe to function as intended even after operating for over 50 years under normal service circumstances.
Polyethylene plant:
This factory opened its doors not too long ago. It is a factory with one of the most sophisticated manufacturing lines. In compliance with international standards, it manufactures PE100 high-performance polyethylene straight pipes. For subterranean potable water and gas main applications, Pe100 is frequently utilized.
When installed and used in compliance with the specifications specified in the application, SPS guarantees that every product will be free from material and workmanship defects. All products are guaranteed for one year from the date of shipment; however, SPS will not be liable for damage resulting from improper installation, storage, or handling. SPS's obligation is capped at 115% of the purchase item. SPS is a producer who stands behind the caliber of his goods. SPS has the reputation for reliability and a long history of satisfying service.
Our quality control section inspects and tests individual parts at every stage of the manufacturing process to ensure they continue to function at a high standard.
To meet our exacting standards, we meticulously choose and test all raw materials and parts in our own laboratories. Our factory produces valves, pipe fittings, pipe clamps, and flanges using the most up-to-date control systems and processing techniques. To ensure the best quality, spectrometers, hydraulic tests, and radiography are used.
Our signed license and agreement with DUKER, one of the most prominent pipe fitting and valve manufacturers in Europe, attests to our high level of production standards. Our products are well-liked in both domestic and foreign markets for irrigation, air conditioning, waste management, and water works under the trade name "SPS-DUKER." Gate valves, butterfly valves, check valves, air valves, PRV, and other valves are examples of this. Epoxy powder coating is applied to the exterior and interior of SPS valves. They undergo testing in compliance with global key standards.
Why do individuals select SPS valves?
SPS has implemented cutting-edge valve technology following extensive research on environmental needs conducted across the Middle East. SPS valves are designed for both above- and below-ground installations to last a long time. Epoxy polyester is electrostatically coated on SPS valve components. SPS valves have a smooth surface, strong adherence to metal, great resilience (no cracking), and strong impact resistance. Regular quality control testing for SPS valves includes adhesion, impact resistance, spark testing, and coating thickness.
SPS valves are made to be easily maintained internally without needing to be disassembled. SPS valve stems are made of premium, long-lasting stainless steel with exceptional strength. Water and sewer waste plants can use SPS valves. Saudi Arabia's Jeddah is where SPS valves are made.
Specifically, what kind of chemicals were used for the pre-treatment of the valves before powder coating?
WE MADE USE OF THIS
Using "DISC" for Acid Descale
Diversify DISC is a substance with a phosphoric acid base that is designed to safely remove rust from steel and iron as well as corrosion products caused by the introduction of aluminum into detergent systems. For the majority of applications, pre-cleaning before desisting up is required because DISC can remove light oil and shop dirt. Additionally, this feature makes scale and oxide more soluble, facilitating quick and effective removal.
APPLICATION:
Steel stock cleaning, do-rusting, and minor descaling.
DISC leaves a surface that is easily painted or powder coated when applied before painting.
Rinse with fresh water twice.
Duraclean 20 combined with alkali degrease.
Heavy-duty alkaline cleaner Duroclean 20 is good cleaning copper, brass, and steel.
With its special combination of surfactants and exceptional wetting and penetrating abilities, Duroclean 20 effectively removes greases and oils based on lanolin. During both soak and electro-cleaning procedures, a large number of additional pollutants are eliminated, including oxidized grease and oils.As per British standard CP 301 2: 1 972, Duroclean 20 is compliant.
Rinse with fresh water twice.
Utilizing Novamux "Diverphos F 687" for iron phosphate A phosphate solution called Diverphos F687 is specifically created to create a thin layer of light iron phosphate coating on surfaces made of iron, steel, aluminum, and zinc. Diverphos F687 satisfies the requirements of DEF STAN 03-11 class IV and BS 31 89 type 4. The phosphate coating will offer strong corrosion protection and greatly enhance paint adhesion properties.
Lightly soiled purls are acceptable to Diverphos F687, which may clean and phosphate them in a single step.
Rinse with fresh water twice.
The purpose of powder coating.
Powder coatings work well on both ferrous and nonferrous metals; filings and valves are common examples. It is only fitting that governments around the world are tightening their regulations on the emissions of solvents and other pollutants into the atmosphere. The use of liquid paints that contain hazardous, volatile, and combustible solvents that contaminate our air will still be prohibited. Powder provides a strong protective layer with an eye-catching appearance.
Prior to treatment.
We prepare the surface by cleaning and clearing it of impurities before coating. Where corrosion protection is a primary necessity, we employ chemical pretreatment.
Powder-coated valves don't produce a disagreeable taste or odor or pose a hazardous risk. should they come into touch with the drinkable water.
We can start by looking at the corrosion classes to help us determine what the requirements should be for pre-treatment.
Class "A" corrosion:
Relative humidity below 60% indoors, less risk of rusting
Doors in a well-ventilated, non-heated room are classified as corrosion class "B." less risk of rusting
CORROSION CLASS "C": Indoor environments with varying humidity and temperature. outside in interior climates, away from the coast and commercial areas. moderate risk of corrosion
Corrossion CLASS "D": Near industrial sites and intensively populated areas. Between the coast and open waters.
High danger of corrosion
CORROSION CLASS "E": humid and contestant. close to a chemical manufacturing or use industry.
Extremely high danger of corrosion
Depending on the kind of metal used and where the product falls within the corrosion classifications.
As a result, we believe that class E will use our goods. Therefore, in order to get a high-quality powder coating, we use both the shot blasting technique and a chemical pre-treatment.


Show Less


Jeddah, Saudi Arabia

Business Type Manufacturer
Region/Country Jeddah, Saudi Arabia
Year Established 1995
Number of Employees 51-200 employees

Company Products (8)


(See All)
product
(0 Reviews)
Steel Pipes
(173) Views
(0) Contacts

By: Saudi Pipe Systems Company (SPS co.)

Get Price
View Details
product
(0 Reviews)
Pressure Reducing Valves
(190) Views
(0) Contacts

By: Saudi Pipe Systems Company (SPS co.)

Get Price
View Details
product
(0 Reviews)
Strainer STR-115 BS 4504 (FILTER, Y-TYPE)
(183) Views
(0) Contacts

By: Saudi Pipe Systems Company (SPS co.)

Get Price
View Details
product
(0 Reviews)
Flange Adaptor
(211) Views
(0) Contacts

By: Saudi Pipe Systems Company (SPS co.)

Get Price
View Details
product
(0 Reviews)
Air Valve AIT-117 AWWA C512 (AIR VENT)
(238) Views
(0) Contacts

By: Saudi Pipe Systems Company (SPS co.)

Get Price
View Details
product
(0 Reviews)

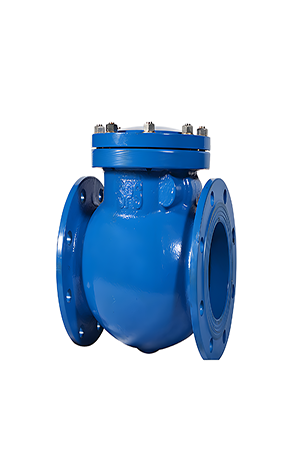

Check Valve CHF-111 BS 5153 (METALLIC SEAT SWING CHECK VALVE)
(140) Views
(0) Contacts

By: Saudi Pipe Systems Company (SPS co.)

Get Price
View Details
product
(0 Reviews)

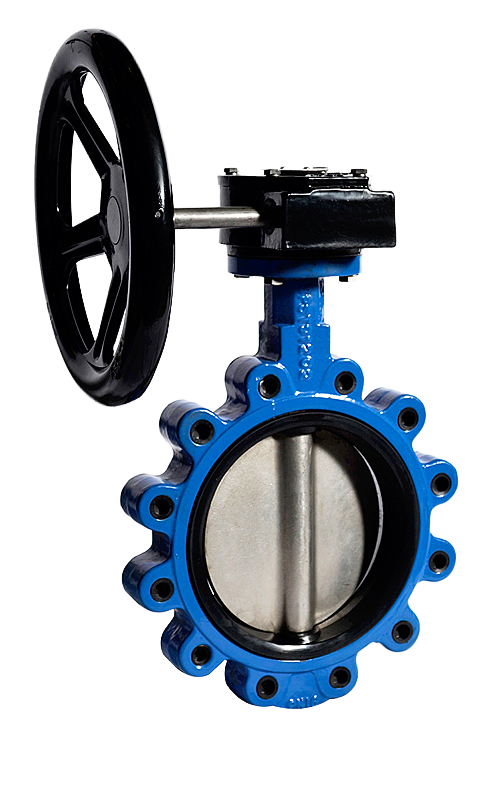

Butterfly Valve BUW-109 LUG
