LiFePO4 Battery 12V 60Ah

(0 reviews)

(391) Views

(0) Contacts

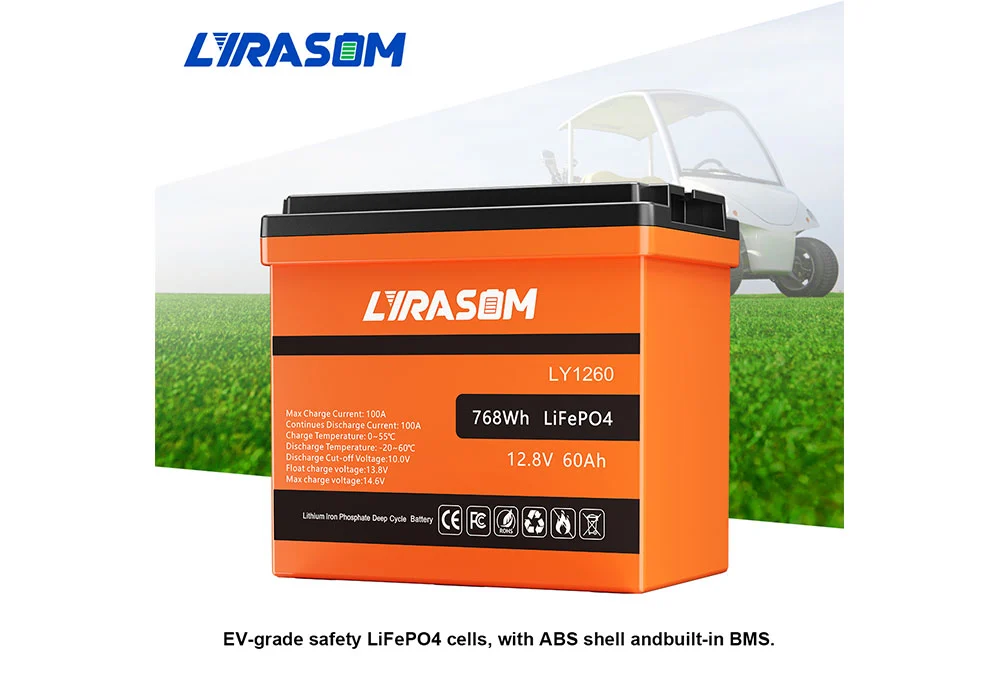

Lightweight and highly capacitance, a 12V 60Ah LiFePO4 battery is widely utilized in off-grid applications, solar power systems, and electric cars. Compared to conventional lead-acid batteries, it offers increased safety features, long-lasting power, and excellent energy economy.

Contact Company

Huizhou Liyuan New Energy Co., Ltd.

Guangdong, China

(1333) Views

(0) Contacts

Model	LY1260	LY12100	LY12150	LY12200
Nominal Capacity	60Ah	100Ah	150Ah	200Ah
Energy	768Wh	1280Wh	1920Wh	2560Wh
Charge Voltage	14.6	14.6	14.6	14.6
Discharge cut-off voltage	10V	10V	10V	10V
Charge Method	CC/CV	CCICV	CCICV	CC/CV
Standard Charge Current	30A	50A	50A	50A
Max. Charge Current	60A	100A	100A	100A
Standard Discharge Current	30A	50A	50A	50A
Max. Continues Discharge current	60A	100A	100A	100A
Peak Current	100A≤5s	150A≤5s	150A≤5s	150A≤5s
Cycle Life, @25°C	6000+ times	6000+ times	6000+ times	6000+ times
Internal Impedance	≤60mΩ	≤50mΩ	≤40mΩ	≤35mΩ
Weight	7kg	10.3kg	14.3kg	18.5kg
Dimension (LxWxH,mm)	229x144x211	340x185x220	502x187x244	502x187x244

                                                            Plastic Case
                                                            ABS

                                                            IP Protection
                                                            IP65

                                                            Certifications
                                                            UN38.3 CE ROHS

                                                            Working Temperature Range
                                                            Charge: 0°C~-55°C   Discharge: -20C~-60C

                                                            Storage Temperature
                                                            -10~50°C

                                                            Self-discharge Rate
                                                            <3% per month

                                                            Output Connector
                                                            M8 Terminal

                                                            Nominal Voltage
                                                            12.8V

Uses for LiFePO4 Batteries

Electric vehicles: Due to its great performance and extended lifespan, 12V 60Ah LiFePO4 batteries are frequently used in electric vehicles such as golf carts, electric bicycles, and electric scooters.
LiFePO4 batteries are perfect for use in solar power systems because they can efficiently store and release energy while withstanding the demanding cycle conditions of regular use.
Marine applications: The 12V 60Ah LiFePO4 battery is starting to replace lead-acid batteries in marine applications due to its high energy density, lightweight design, and extended cycling life.
Off-grid power solutions: When a dependable, portable, and long-lasting power source is needed for off-grid situations like camping and recreational vehicles, LiFePO4 batteries are frequently utilized.

The LiFePO4 Battery's characteristics

Lightweight: Compared to conventional lead-acid batteries, the 12V 60Ah LiFePO4 battery is substantially lighter, making it simpler to handle and transport.
High capacity: This battery offers long-lasting power for a range of applications thanks to its 60Ah capacity.
Enhanced safety: Compared to conventional lithium-ion batteries, LiFePO4 batteries are less likely to have thermal runaway or explode, making them a safer option.
Low self-discharge rate: Compared to lead-acid batteries, LiFePO4 batteries have a far lower self-discharge rate, which enables longer storage times without the need for maintenance charging.
