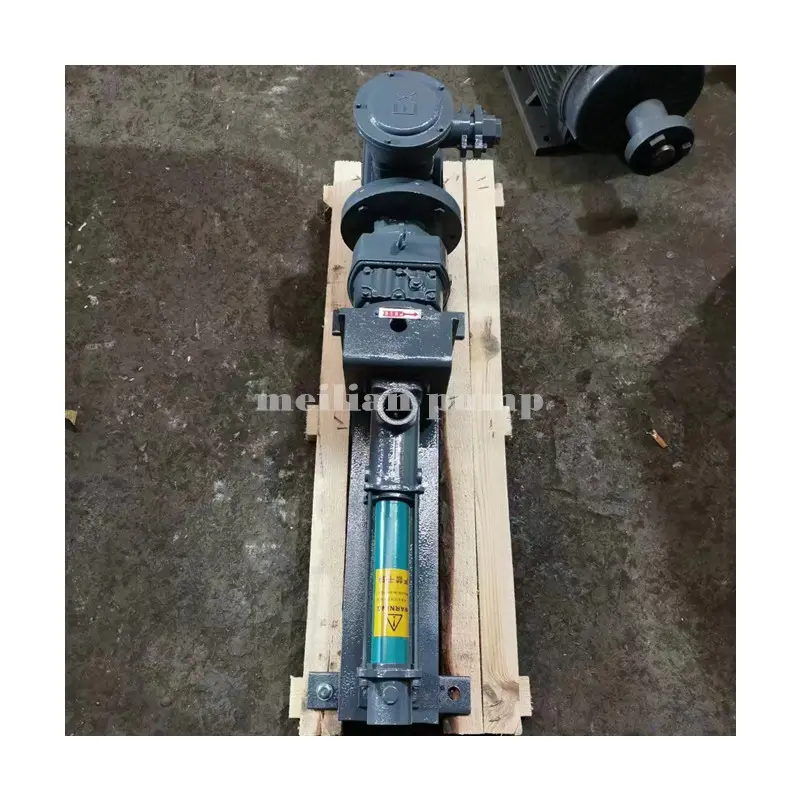

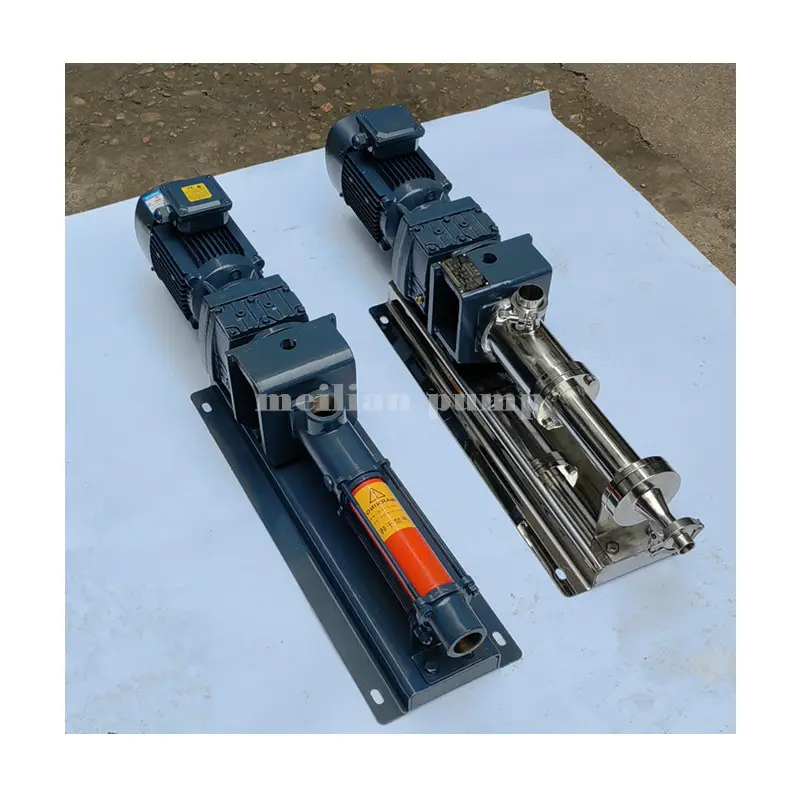

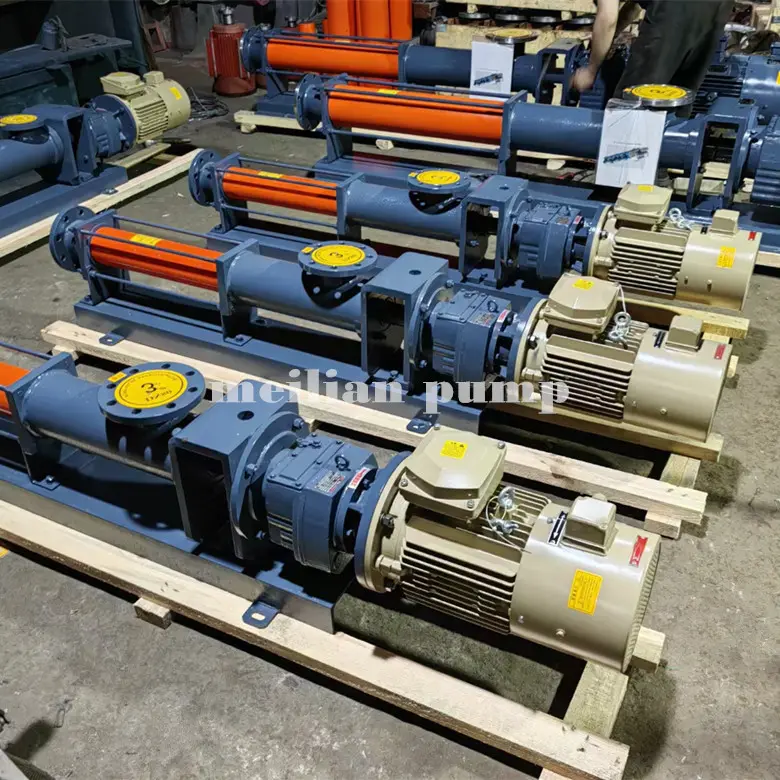

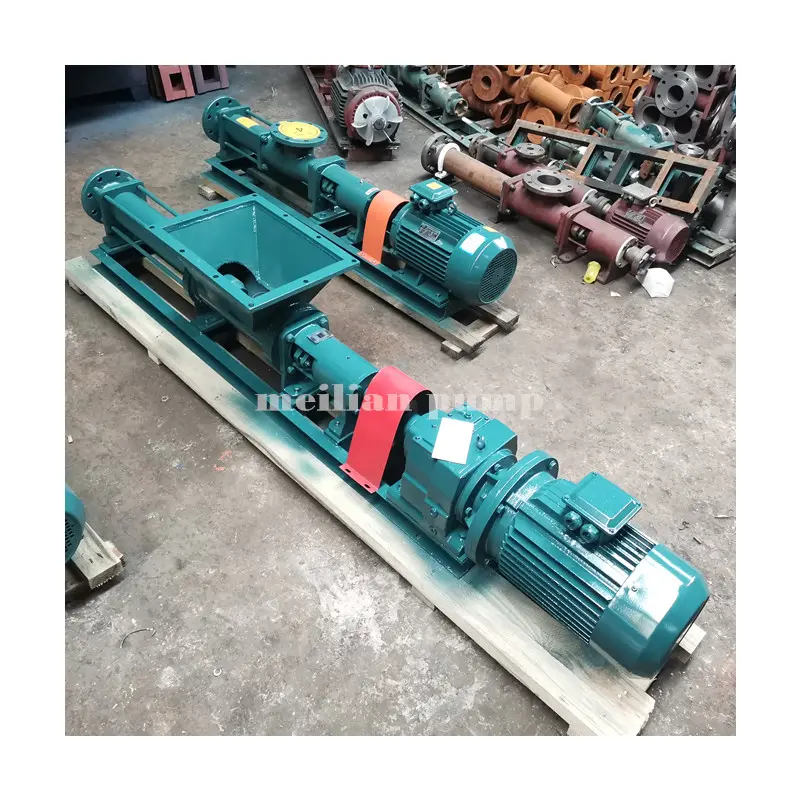

Single Screw Pump NM063BY01L06B

(0 reviews)

Get Price

(307) Views

(0) Contacts

>= 1 pieces
US$450.00

Contact Company

Wenzhou Meilian Pump Valve Co., Ltd.

Zhejiang, China

(733) Views

(6) Contacts

A single screw pump with solids is a positive displacement pump that uses one or more screws to move fluids or solids along the screw axis. In its simplest form (Archimedean screw pump), a single screw rotates in a cylindrical cavity, causing the material to move along the main axis of the screw. This ancient construction is still used in many low-tech applications, such as irrigation systems and agricultural machinery for transporting grain and other solids.

                                                            Working principle
                                                            Screws

                                                            Drivers
                                                            Electric motor or diesel engine

                                                            Flow range
                                                            0.8-150m3/h (3.5-660US.GPM)

                                                            Biggest Head
                                                            120m (393ft)

                                                            Shell material
                                                            Cast iron/stainless steel

                                                            Screw material
                                                            SS201 / SS304 / SS316

                                                            Stator Material
                                                            NBR/Silicone Gel.

                                                            seal
                                                            Packaging and sealing

                                                            Motor Type
                                                            YX3 series motor/gearbox and YX3 series motor/explosion-proof motor

                                                            Maximum allowable fluid temperature
                                                            150 °C(302 °F)  Connection

                                                            Type
                                                            Flange
