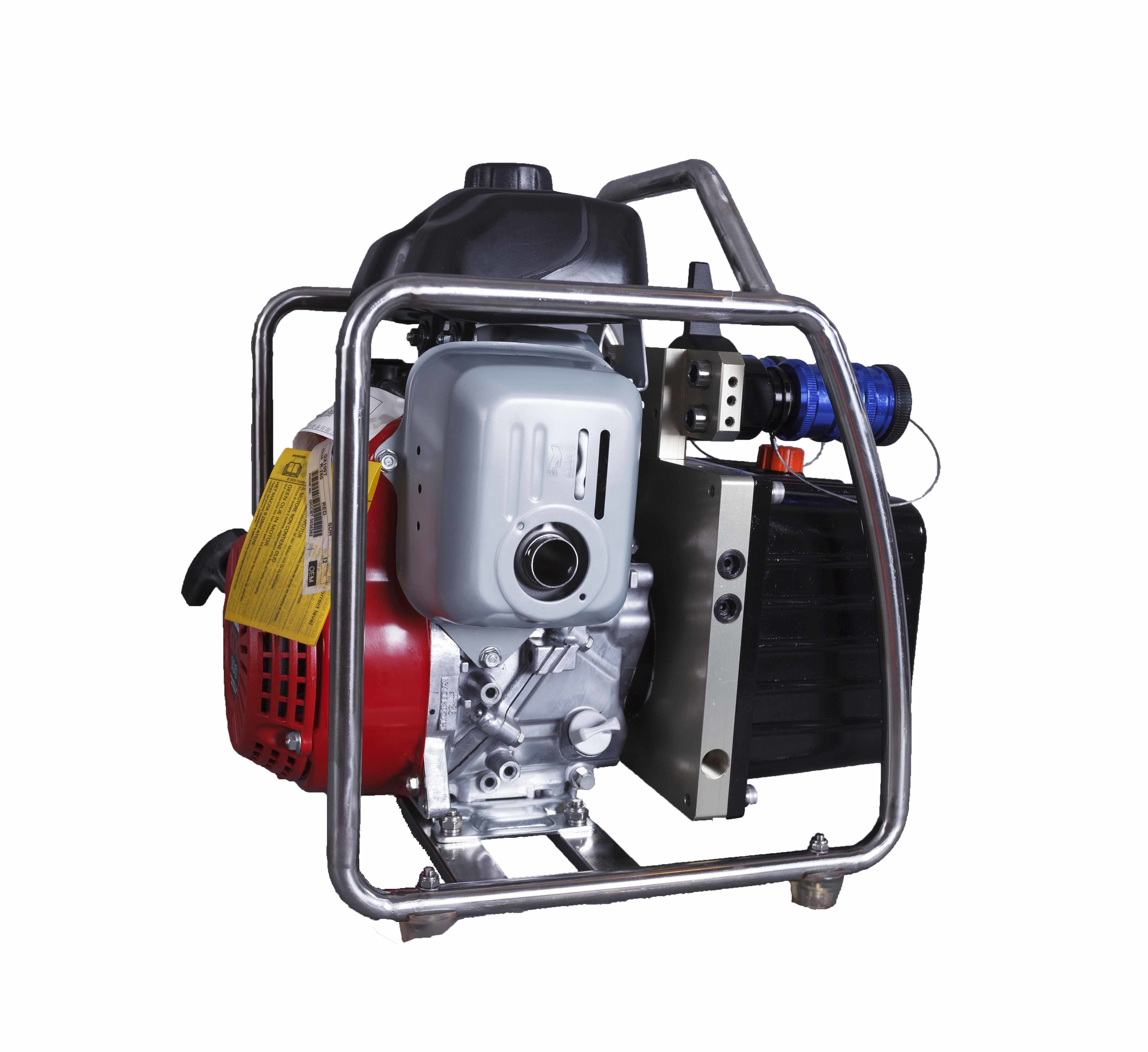

When paired with rescue demolition equipment, the hand-lifted hydraulic motor pump—a compact motor pump—can generate a significant output force. Rescue operations at a variety of disaster accident locations, including fires, earthquakes, landslides, roadways, railroads, and airplanes, frequently use this powered pump. Its features are its tiny size, light weight, portability, ease of use, and high output power. It can efficiently prevent casualties by swiftly rescuing trapped and injured individuals at the scene of accidents and disasters.
One of these motorized pumps can operate independently without causing any damage, or it can be attached to two demolition equipment to operate simultaneously. This results in real dual-group dual output, which is the same as combining two pumps into one.
Its single interface connection mode allows for tool substitution under pressure, and its two-stage pressure output of high and low pressure with automated conversion speeds up the rescue procedure. In addition to controlling two tools simultaneously, the "top-mounted" metal control valve block incorporates "double speed valve" technology that doubles the efficiency of a single tool during rescue.

                                                            Oil pump type/output type
                                                            Double-stage plunger/double output pump

                                                            Rated output pressure
                                                            72MPa

                                                            Power
                                                            2.1KW

                                                            High pressure flow
                                                            0.61 L/min double speed mode 1.2L/min

                                                            Low pressure flow
                                                            2.26 L/min, double speed mode 4.5L/min

                                                            Packing size
                                                            670×450×600mm

                                                            Mass (kg)
                                                            24.95

                                                            Gasoline capacity
                                                            0.77L

                                                            Hydraulic oil capacity
                                                            3.8L

                                                            Applicable temperature
                                                            -30℃-55℃

                                                            The standard configuration

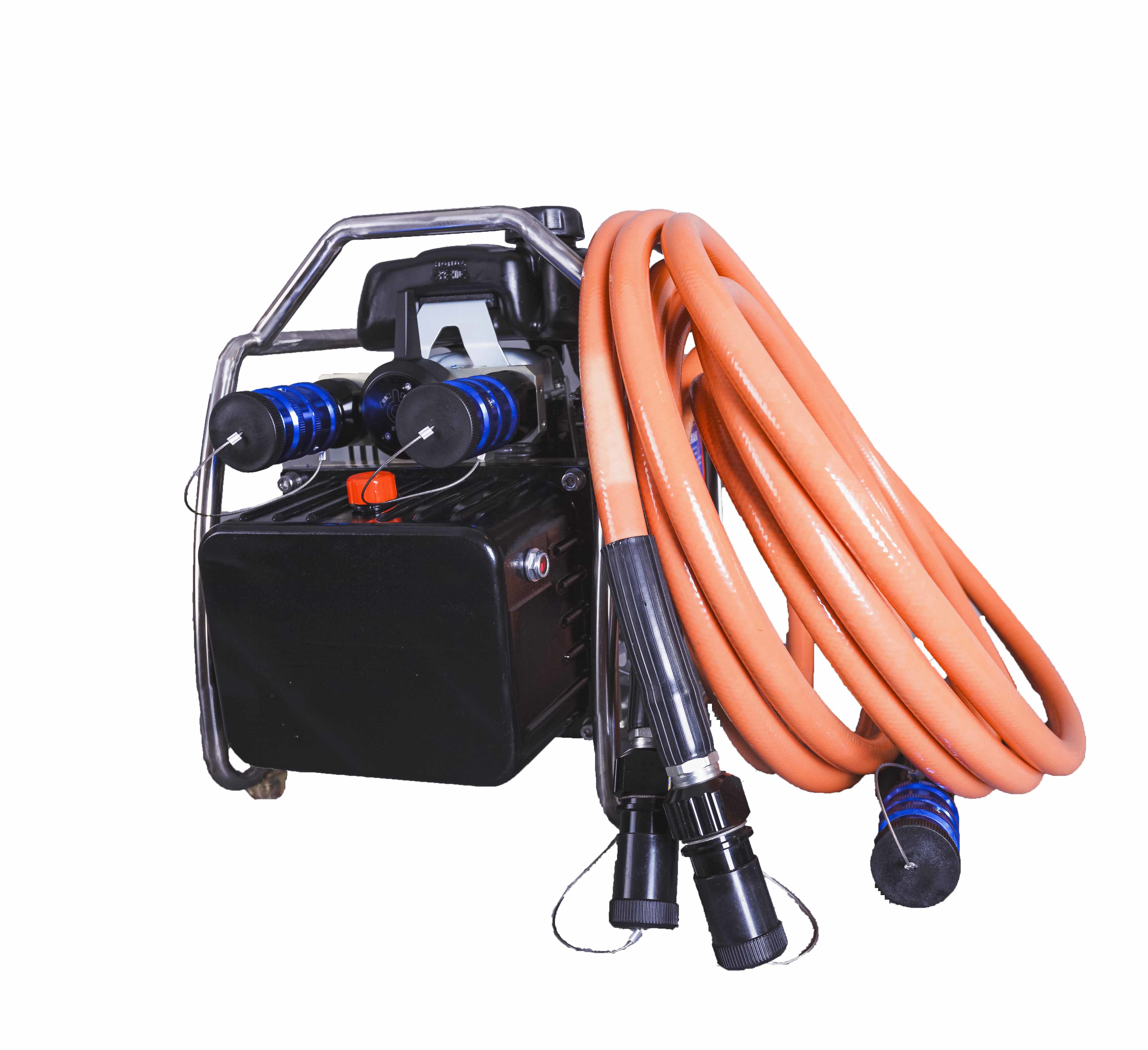

                                                            includes two sets of 5-meter concentric oil pipes

                                                            Product size
                                                            430*320*420mm

Performance characteristics of a water pump:
1. Two demolition tools can operate simultaneously with this motorized pump without interfering with one another.
2. One tool's rescue efficiency can be doubled thanks to its flow doubling capability.
3. Rapid speed and large flow make it appropriate for more complicated rescue locations.
4. It's lightweight, portable, energy-efficient, and makes little noise.
5. To guarantee safe and efficient operation, the corresponding high and low voltages are automatically converted.
6. Rescue workers find it easier to carry tools in the form of brackets.
7. Convenient rescue thanks to two extra sets of 5 m hydraulic pipe components or optional 10 m hydraulic pipe components for backup.
