Ozone Generator

(0 reviews)

Get Price

(161) Views

(0) Contacts

Contact Company

Guangzhou Chunke Environmental Technology Co. Ltd

Guangzhou, China

(1038) Views

(25) Contacts

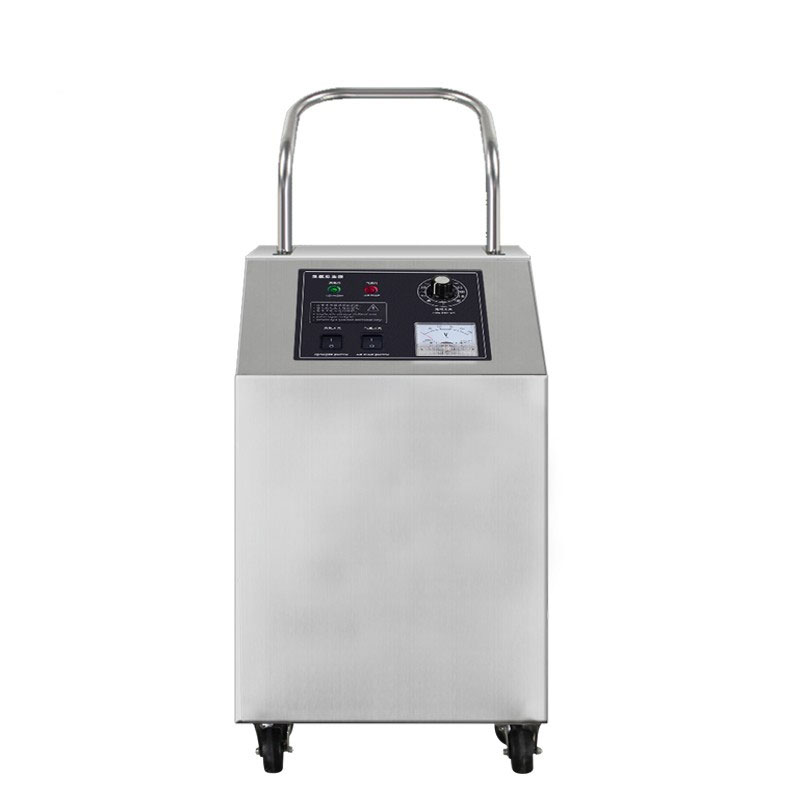

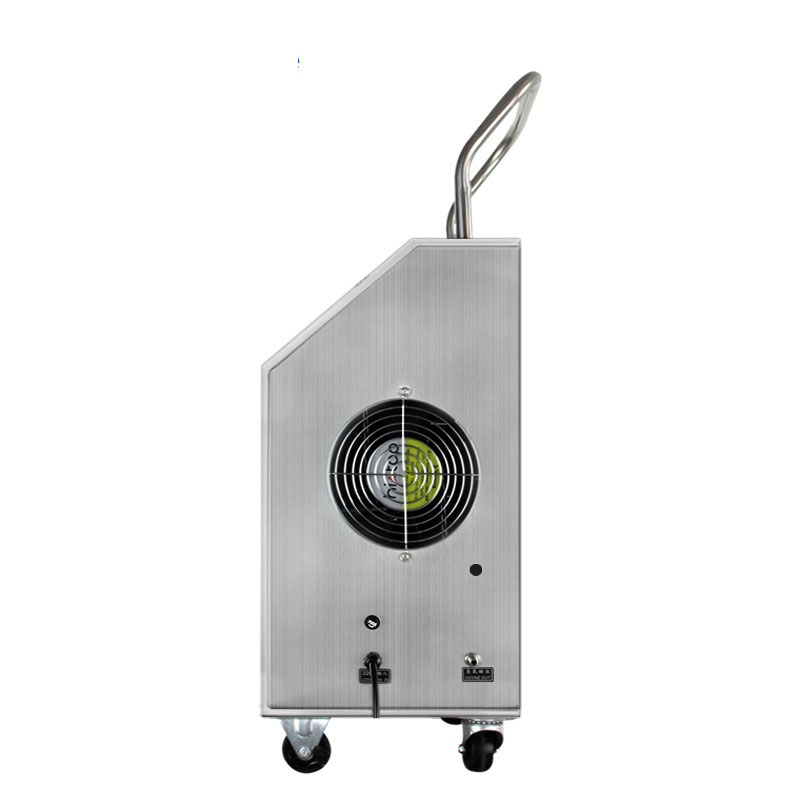

Water Ozone Generator
An ozone generator is a device used to produce ozone. Ozone is easy to be decomposed and cannot be stored. It needs to be made and used on-site. If you need ozone in your process it means you have to integrate Chunke ozone generator into the system. An ozone generator is widely used in tap water, sewage, industrial oxidation, space sterilization, and other fields. It is a widely recognized and highly effective disinfectant.
Ozone is a strong oxidant, in a certain concentration can quickly kill the bacteria in the water, known as "the cleanest oxidant and disinfectant".
Ozone is a very powerful disinfectant. Its ORP is greater than that of chlorine. The ORP for ozone is nearly twice that for hypochlorite. Ozone will also destroy a significant number of organics such as TOC.

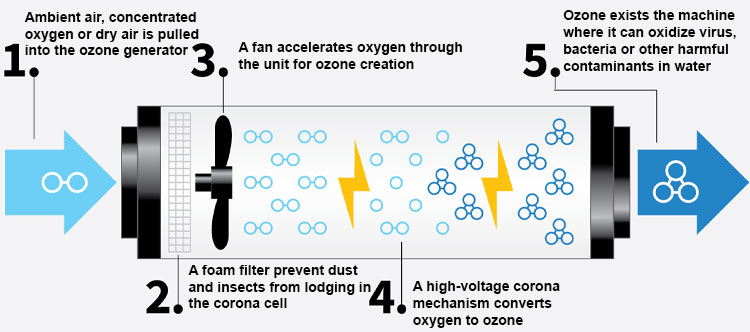

Although ozone can be generated in a number of different fashions, the most economical method is by dielectric barrier discharge by an ozone generator. This method involves the passing of a high-voltage, alternating current (6 to 20kV) through either air or pure oxygen:
3O2 + electric discharge ⇒2O 3
When added ozone to water, ozone quickly converts to oxygen, leaving behind no residual ozone in the ozone system for water treatment. Ozone sterilization systems help you to improve your product quality. Especially used in the drinking water industry for bottled water production, ozone sterilization systems are used with ozone towers to kill all bacteria and viruses in water.
The Table shows the future of most use of ozone systems for water treatment:

Type	Ozone output	Ozone concentration	Purification area	Power	Power source
CK-3g/h	3g/h	15-20mg/h	60-100m³	85W	220v,50Hz
CK-5g/h	5g/h	15-20mg/h	100-210m³	110W	220v,50Hz
CK-10g/h	10g/h	15-20mg/h	200-320m³	180W	220v,50Hz
CK-15g/h	15g/h	15-20mg/h	300-400m³	300W	220v,50Hz
CK-20g/h	20g/h	15-20mg/h	400-600m³	320W	220v,50Hz
CK-25g/h	25g/h	15-20mg/h	600-800m³	330W	220v,50Hz
CK-30g/h	30g/h	15-20mg/h	800-1000m³	350W	220v,50Hz
CK-40g/h	40g/h	15-20mg/h	1000-1200m³	480W	220v,50Hz
CK-50g/h	50g/h	15-20mg/h	1200-1500m³	530W	220v,50Hz
CK-80g/h	80g/h	15-20mg/h	2000-3500m³	1020W	220v,50Hz
CK-100g/h	100g/h	15-20mg/h	4000-6000m³	1140W	220v,50Hz

Ozone sterilization systems or ozone disinfection systems are used in the water treatment industry to kill bacteria and microorganisms.
Chunke ozone generators or ozone systems for water treatment are integrated into the RO water plant.
Also, you can use Chunke ozone generator separately as an ozone sterilization system.
An ozone system for water treatment applications is very effective if you do not want to use chemicals to kill bacteria, viruses, or microorganisms.
Nowadays, because of Covid-19, ozone generators are used for air cleaning as ozone sterilization systems instead of ozone systems for water treatment.
