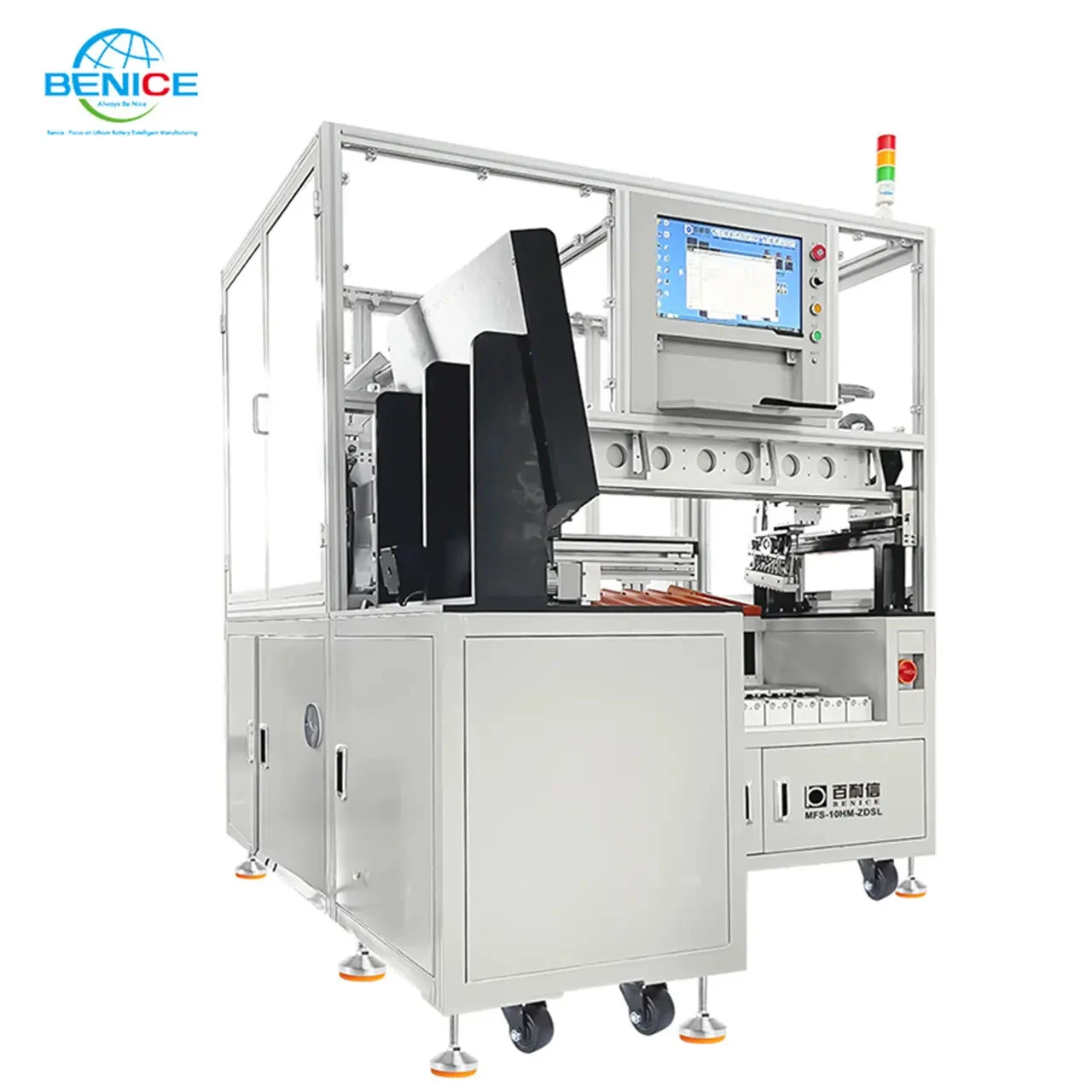

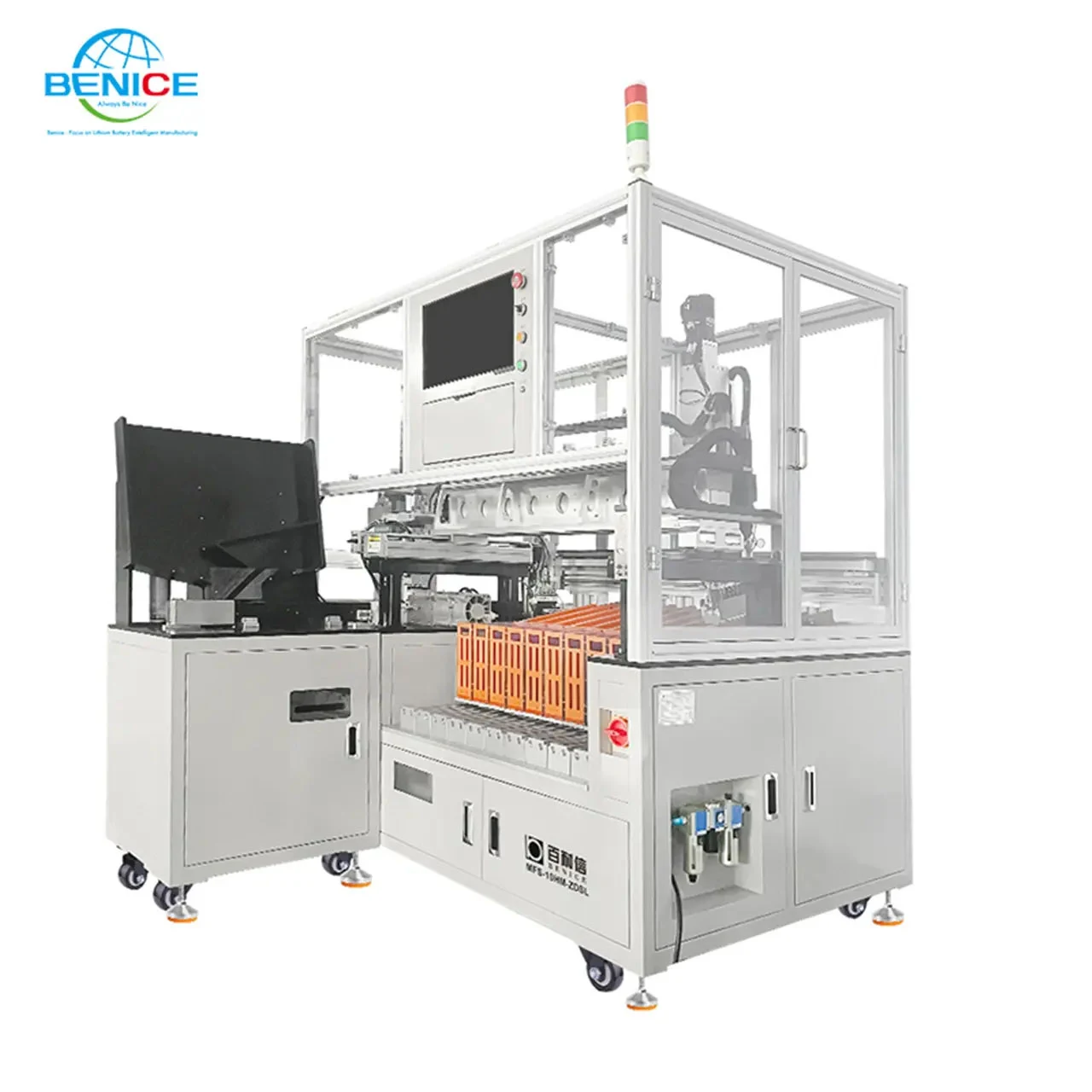

The 18650 lithium battery sorting machine is divided into a 2-stage sorting machine, 6-stage sorting machine, 10-stage sorting machine, and 20-stage sorting machine (also called a 2-channel sorting machine, 6-channel sorting machine, 10-channel sorting machine, 20-channel sorting machine).
The cylindrical battery sorter consists of:
loading part
The hopper of the feeding mechanism is made of Bakelite. Manually only need to place the discharge box at the position of the upper hopper, and then pull out the bottom baffle. Feeding is convenient, with no material jamming. The slotted teeth are driven by a motor and are drawn into the battery one by one, and transported to the buffer belt.
Feeding mechanism
The batteries are conveyed by PVC belts, and the discharge method is one discharge and two discharges. The two ends of the conveyor belt are conveyed and detected separately, and synchronous detection is efficient.
Test conveyor pull mechanism
The conveyor belt traction mechanism is composed of a conveyor belt traction mechanism and a material blocking mechanism. When the number of proximity sensors reaches ten, OCV testing and cell sorting will begin. There are two sets of left and right sorting structures for this OCV test, so you don’t have to worry about shutting down or getting stuck
