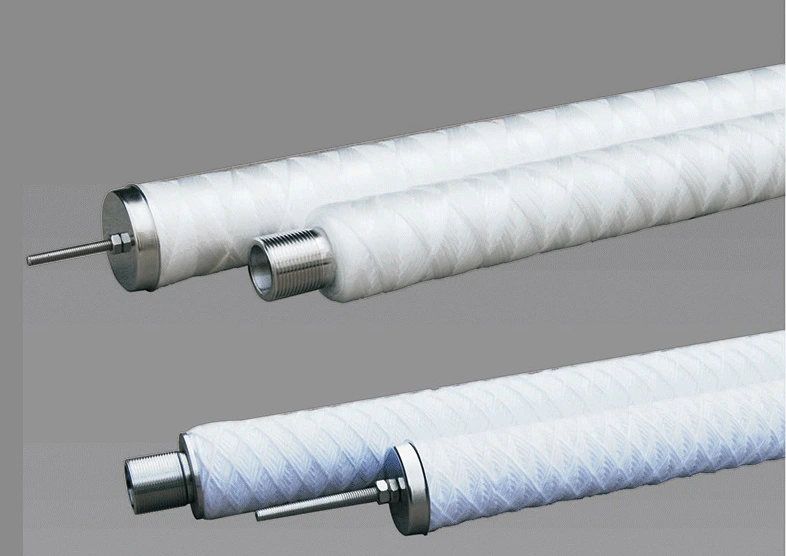

Condensate filter element
Powder resin-covered filters and pre-filters are generally used in power plant condensate water treatment systems. Filter elements are installed inside the filter. The surface of the filter element can be coated with fiber powder and anion and cation resin powder to achieve the purpose of filtration and desalination. When the pressure difference between the inlet and outlet of the filter or the conductivity of the filter effluent or the silicon reaches the set value, the filter is in a state of failure, and the filter will be burst and backwashed, and then put into operation after film laying.
Filter media
water-suspended solids, particulate matter, water fouling, bacteria and algae, rust, etc.
Equipment performance
Internal thread structure for enhanced compression resistance:
Wide chemical compatibility, large flux, low differential pressure, Can be washed and regenerated, economical, sterilized by chemical method, in-line steam sterilization.
Material:
Winding material: PP polypropylene fiber/absorbent cotton

Skeleton: SS304

Filter element form: folded.
Structure:
Sparse outside and dense inside, honeycomb structure, large dirt holding capacity.

                                                            Name
                                                            Condensate filter element

                                                            Filter Outer Diameter
                                                            Φ50,Φ 60mm

                                                            Inner diameter of filter element
                                                            medium Φ25,Φ28mm

                                                            Center Frame
                                                            70"/1778mm ,60"/ 1524mm

                                                            Stainless Steel 304/ 316  Top structure
                                                            M6, M8, M10 thread

                                                            Maximum operating temperature
                                                            85℃

                                                            Connection
                                                            Thread

                                                            Maximum operating temperature
                                                            2.9m3/h-3.2m3/h

                                                            Filter material
                                                            polypropylene fiber; absorbent cotton thread; glass fiber thread;

                                                            Bottom structure
                                                            connecting thread M33x1.5, M33x2, G1, 13/16n -24 BSW connection  Customized according to different working conditions

Application
The pharmaceutical industry, food industry, electronics industry, petroleum and chemical industry, etc.

Equipment advantages

A certain number of filter elements are installed in the filter, water enters from the outside of each filter element, flows out from the porous tube in the center of the filter element, and impurities are trapped on the surface of the filter element.
There are two main types of filter elements, the winding filter element is used when the membrane is laid, and the folded filter element is used when the membrane is not laid.
The precision of the pleated filter element is 10um when the unit is started, and the precision of the filter element is 2um or 5μm during normal operation.
