Spindle Core Drilling Rig

(0 reviews)

Get Price

(38) Views

(0) Contacts

1 - 4 sets 5 - 9 sets

$15,000.00 $9,700.00

>= 10 sets

$3,200.00

Contact Company

Henan Yugong Machinery Co., Ltd.

Henan, China

(474) Views

(0) Contacts

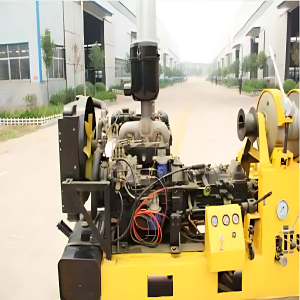

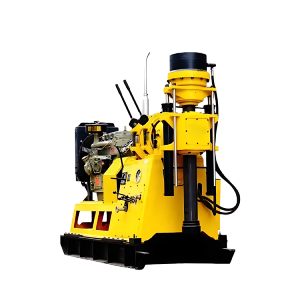

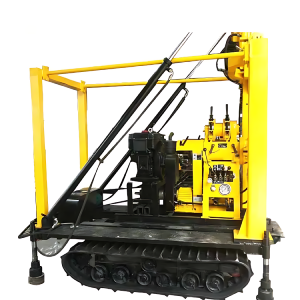

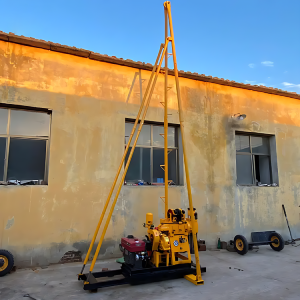

XY-3 Series core drill rig is a kind of spindle core drilling rig for a variety of drilling process requirements which is mainly suitable for medium and shallow drilling and diamond drilling. The machine can match the corresponding motor or diesel engine for power. Meanwhile, the spindle core drilling rig with a simple structure for sale in our company is very easy to operate and disassemble.
Spindle Core Drilling Rig
The drilling rig has always been a hot-selling product of YG Machinery. At present, this spindle core drilling rig has been sold to many countries in the world, with high-cost performance, and can meet the requirements of customers. In addition, we have hydraulic drilling rigs, small water well-drilling rigs, trailer-mounted water well-drilling rigs, crawler DTH drilling rigs, portable DTH drilling rigs, rotary drilling rigs, horizontal directional drilling rigs, etc. Please contact us to know more about machinery

                                                            Model
                                                            XY-3

                                                            Drilling Depth (m)
                                                            600

                                                            Open Hole Diameter (mm)
                                                            325

                                                            Final Hole Diameter(mm)
                                                            75

                                                            Inlet Hose Diameter(mm)
                                                            71

                                                            Outlet Hose Diameter(mm)
                                                            51

                                                            Drill Pipe Diameter(mm)
                                                            60

                                                            Drill Pipe Inclination (°)
                                                            90-75

                                                            Power (kW)
                                                            13.2

                                                            Displacement(L/min)
                                                            250

                                                            Weight (kg)
                                                            1800

                                                            Dimensions(mm)
                                                            2600*900*1750

                                                            Mud Pump
                                                            BW-250

                                                            Work Pressure
                                                            80kg/cm²

                                                            Speed(r/min)
                                                            32-1057

                                                            Stroke(mm)
                                                            600

                                                            Rated Load(ton)
                                                            18

                                                            Height(m)
                                                            11

                                                            Max Pull Force(kg)
                                                            3000

                                                            RopeDiameter(mm)
                                                            12.5

                                                            Pull Speed(m/min)
                                                            0.3-1.9

                                                            Roll Capacity(m)
                                                            65

Features of Spindle Core Drilling Rig:

The rig adopts the MW525 automobile gearbox assembly.
With a 10-speed series and reasonable speed range, high torque, and strong bearing capacity, it can realize remote control of speed.
It has large installed power and two series reverse speed, which can make it easy to deal with accidents.
The structure of the motor drive is compact and the control handle is concentrated which makes the operation simple, flexible, and reliable.
The hole diameter of the vertical shaft is 96mm and can be replaced with a big six-square active drill pipe.
The supporting distance is big and the rigidity of the drilling rig is good.
The hydraulic system can control the feed pressure and speed to adapt to various types of formation drilling needs.
Equipped with a hole bottom pressure indicator which makes it easy to observe what’s going on inside the hole.
The vertical shaft and hoist can be operated independently.
Small in size, lightweight, and easy to move.
