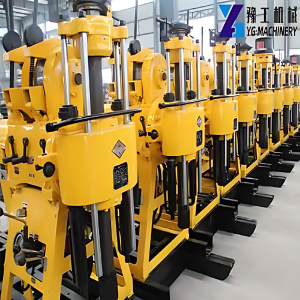

Water Well Drilling Rigs for Sale

(0 reviews)

Get Price

(106) Views

(0) Contacts

Contact Company

Henan Yugong Machinery Co., Ltd.

Henan, China

(474) Views

(0) Contacts

Water well drilling rigs is a series of machine for developing groundwater that people can use the drilling technology to extract groundwater to supplement the water demand of people’s daily life and production. The principles of different drilling equipment are different, which can be divided into the Dayton drilling technology and rotary drilling technology. In addition, there is a variety of water well drilling rigs for sale in YG Machinery, such as tractor-mounted water well drilling rigs, portable water well drilling machines, rotary drilling rigs, horizontal directional drilling rigs, crawler DTH drilling rigs, home water well drilling, etc… Pick up the suitable water well drilling equipment according to your requirements and contact us for more details now.

Types of Water Well Drilling Rigs for Sale

According to the system compositions, we can divide the water well drilling machine into three types: rotary water well drilling rig, impact water well drilling machine, and compound water well drilling rig for sale. Rotary water well drilling equipment can be subdivided into large and small pot drilling machines, rotary drills with forward and reverse circulation, hydraulic power head well drill rigs, DTH impact rotary drill equipment, etc… So many types of water well drilling rigs for customers to choose from. Maybe some people just want to buy this machine, but don’t know which model will be suitable for them. Then I will give a brief introduction to these drilling machines in terms of their size, working mode, working efficiency, suitable operation place, function, and some other aspects. I hope it will be of some help to your choice. And if you still can’t choose the suitable types, please kindly advise your main application. Then we will recommend the best water well drilling rigs for sale in our company to you.

Structure Composition of Water Well Drilling Rigs

Hydraulic oil pump. The large displacement pump provides power for the powerhead, and the small displacement pump provides power for the four-leg oil cylinder, the lifting mast oil cylinder, and the lifting pulley oil cylinder.
Four legs. Small water well drilling rigs consist of hydraulic oil cylinders and fixed frames that operators can adjust the level of the equipment at the worksite and play the role of supporting and stabilizing the body of the machine.
Mast. It is a frame structure welded by a combination of giant steel pipe, channel steel, and angle steel. The inner slots of double-channel steel are used as the running track under the powerhead to ensure the perpendicularity of the drill hole.
Powerhead. Use a gear reducer mechanism and there is a large-hole mandrel in the middle of the low-speed shaft. The upper end of the mandrel can be connected with the rubber tube interface of the concrete pouring equipment to conduct concrete pouring. The lower end of the mandrel connects with the drill pipe and drill bits through the flange. And the high-speed shaft is driven by a large torque hydraulic motor.

System Composition of Water Well Drilling Rigs:

The power system can provide power equipment for the whole machine.
The work system can work according to process requirements.
The transmission system is used to transfer and allocate energy for the working unit.
The Control system can control all systems and equipment, as well as coordinate the work according to the process requirements.
The auxiliary system assists the main system.

The Maintenance of the Water Drilling Machine:

Always check whether the wire rope is replaced;
Pay attention to its continuous use time, the motor can’t be overcharged for so long time;
The motor part of the drills should be carefully handled and avoid raining and splashing water when you need to move the machine.
The drill pipe thread should be lubricated and placed in the rain shelter to avoid rust;
The electric motor wire connection shouldn’t touch the electricity when you don’t use it;
Check the circuit and transformer insurance when the motor doesn’t turn.

How Do the Water Well Drilling Rigs Work?
The work mode of water well drilling rigs is pump-suction and reverse circulation. Under atmospheric pressure, circulating liquid flows from the sedimentation tank to the bottom of the well along the circular gap of the good hole through the back ditch. At this point, the rotary disk drives the drill pipe and rotates the drill bit rotation for drilling. Then the negative pressure established by the mud pump suction draws the debris mud into the inner cavity of the drill pipe and rises to the faucet. And then it is discharged into the sedimentation tank through the mud pump. The circulating liquid continues to flow into the hole after precipitation, and so on, forming a reverse-circulation drilling operation.
Water Well Drilling Machine Price:
Different types of water well-drilling rigs for sale in our company have different prices. If you choose one or more models you want, please click the inquiry button to contact us, then our sales manager will send you the details, catalog, and price list according to the models you pick up. You may rest assured that we will give you an optimal water well-drilling machine price.

                                                            Model
                                                            HZ-130Y/130YY	HZ-180Y/180YY	HZ-200Y/200YY

                                                            Drilling Depth (m)
                                                            130	180	200

                                                            Open Drilling Diameter (mm)
                                                            220	220	325

                                                            Dimensions(mm)
                                                            2400*950*1400	2400*950*1400	2700*950*1770

                                                            Final Hole Diameter(mm)
                                                            75

                                                            Weight (kg)
                                                            920	950	1150

                                                            Drill Pipe Diameter(mm)
                                                            42-60

                                                            Drill Pipe Inclination (°)
                                                            90-75

                                                            Power (kW)
                                                            13.2	13.2	14.7

Applications

The water well drilling machine can not only be used for domestic water, agriculture water, and industrial water drilling but also is suitable for hydrogeological exploration, construction engineering, and bridge foundation drilling.
