Membrane Element

(0 reviews)

Get Price

(257) Views

(0) Contacts

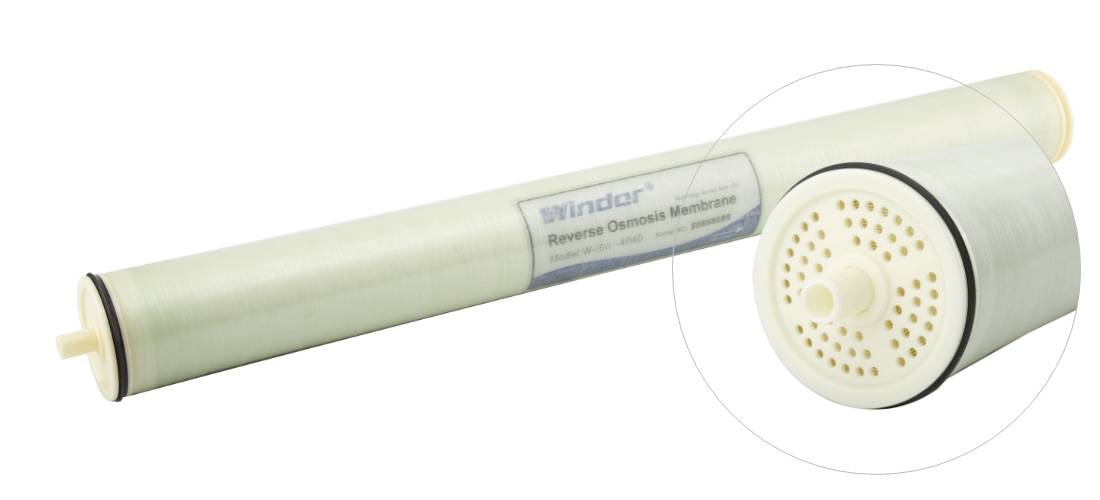

BW membrane element series has the characteristics of high water production and good desalination performance.

Contact Company

Hebei ChengDa Water Technology Co., Ltd.

Hebei, China

(804) Views

(20) Contacts

                                                            Active Membrane Ft²(m2)
                                                            85 (7.9)

                                                            Model
                                                            W-BW-4040

                                                            Recovery rate (%)
                                                            15

                                                            Max. single membrane element pressure drop
                                                            15 psi (0.1 MPa)

                                                            Operational pressure psi (MPa)
                                                            255 (1.55)

                                                            Average yield GPD (m³/d)
                                                            2600 (9.8)

                                                            Salt rejection (%)
                                                            99.5

                                                            PH Range of Feed Water During Continuous Operation
                                                            2–12

                                                            Max. Operating pressure psi (MPa)
                                                            600 psi (4.1 MPa)

                                                            Free chlorine concentration
                                                            ﹤ 0.1 ppm

                                                            Max. inflow temperature (°C)
                                                            45 °C

                                                            Max. water flow GPM (m³/h)
                                                            16 GPM (3.6 m³/h)

                                                            Max. inflow SDI
                                                            5
