Complete On Grid Solar System Kit 1kw 5kw 10kw 15kw IP65 Home Solar Panel System

(0 reviews)

Get Price

(73) Views

(0) Contacts

Contact Company

Lovsun Solar Energy Co., Ltd

Hong Kong, China

(169) Views

(0) Contacts

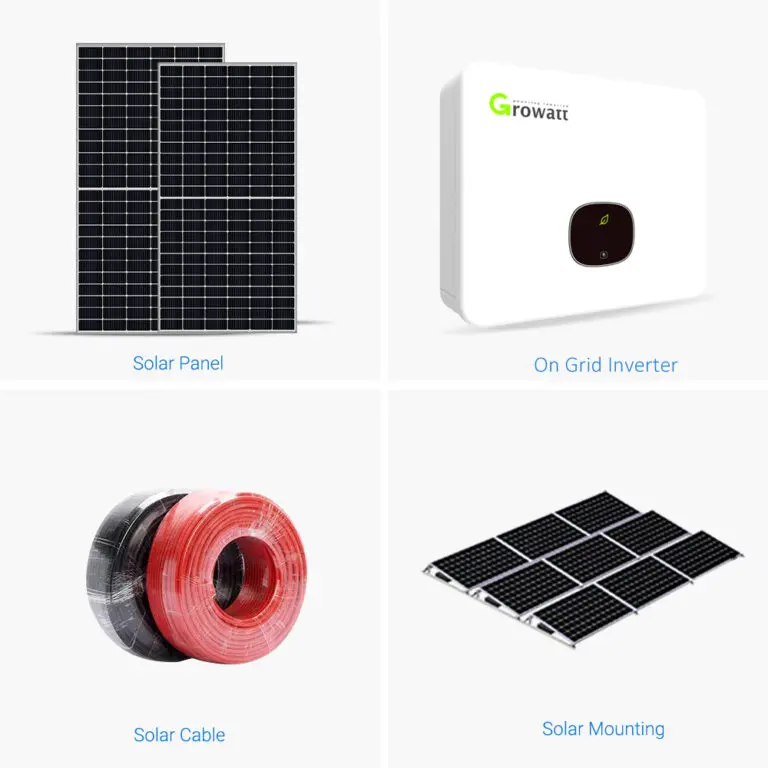

Components
Complete On Grid System
System Power (KW)
3KW
5KW
10KW
Wi-Fi/Gprs Module
1pc
1pc
1pc
450 W Mono Solar Panel (Pcs)
7 pcs
10 pcs
20 pcs
DC/AC Switch Break (Pcs)
1/1 pc
1/1 pc
2/1 pc
PV Cable (M)
100 meters
200 meters
400 meters
Mounting System
Customized
Customized
Customized
MC4 (Pair)
4 pairs
4 pairs
8 pairs

Solar Panel Features include

21.5% conversion efficiency
Improved performance in low light
MBB cell technology
IP68 junction box
Aluminum alloy frame
Class A application
12-year product warranty
25-year power output guarantee

Growatt On-Grid Solar Inverter (Optional) Features include

A touch key and OLED display
Type II SPD on the DC side
Export control
Maximum efficiency of 98.4%
String monitoring
Dual MPPT trackers.

PV Mounting System Features include

Customized for roof and ground
Adjustable angle from 0 to 65 degrees
Compatible with all types of solar panels
Mid & End Clamps: 35, 40, 45, 50mm
L Foot Asphalt Shingle Mount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
25-year warranty

DC/AC Disconnect Switch Features include

IP65 rated.
Rated voltage: 600VDC/1000VDC
Rated current: 16A/32A
Ambient temperature: -25℃ to 85℃
15-Year Warranty

Components	Complete On Grid System
System Power (KW)	3KW	5KW	10KW
Wi-Fi/Gprs Module	1pc	1pc	1pc
450 W Mono Solar Panel (Pcs)	7 pcs	10 pcs	20 pcs
DC/AC Switch Break (Pcs)	1/1 pc	1/1 pc	2/1 pc
PV Cable (M)	100 meters	200 meters	400 meters
Mounting System	Customized	Customized	Customized
MC4 (Pair)	4 pairs	4 pairs	8 pairs
