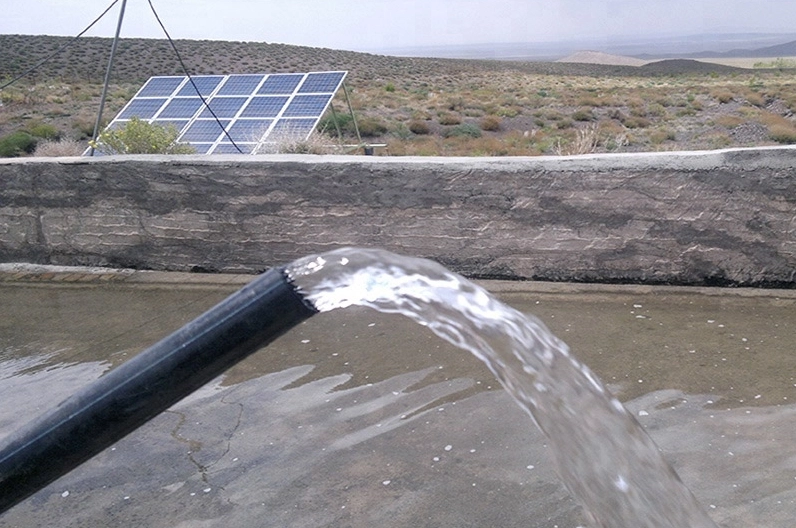

INVT recently launched the GD100-PV line of solar VFDs, designed specifically for solar pumping applications. Designed to improve usability and performance while expanding the product's power range and appropriate voltage levels, the solar pump inverter is based on the original models. The voltage level can be applied to pumps with a power range of 0.4kW to 110kW that are single phase or three phase (220V and 380V, respectively).

Model	-SS2	-S2	-2		-4
AC input voltage (V)	220(-15%) ~240(+10%) (1PH)		220(-15%) ~240(+10%) (3PH)		380(-15%) ~440(+10%) (3PH)
Max. DC voltage (V)	440	440	440		800
Start-up voltage (V)	200	200	200		300
Lowest working voltage (V)	150	150	150		250
Recommended DC input voltage range (V)	200~400	200~400	200~400		300~750
Recommended MPP voltage (V)	330	330	330		550
Series	Model	Rated output power (KW)	Rated input current(A)	Rated output current(A)		Max.DC input current(A)
-SS2 Model Single-phase,220V input/output (0.4~2.2KW)	GD100-0R4G-SS2-PV	0.4	6.5	4.2		9
	GD100-0R7G-SS2-PV	0.75	9.3	7.2		9
	GD100-1R5G-SS2-PV	1.5	15.7	10.2		12
	GD100-2R2G-SS2-PV	2.2	24	14		12
-S2 Model Single-phase,220V input (0.4~2.2KW)	GD100-0R4G-S2-PV	0.4	6.5	2.5		9
	GD100-0R7G-S2-PV	0.75	9.3	4.2		9
	GD100-1R5G-S2-PV	1.5	15.7	7.5		12
	GD100-2R2G-S2-PV	2.2	24	10		12
-2 Model Three-phase,220V (4~7.5KW)	GD100-1R5G-2-PV	1.5	7.7	7.5		12
	GD100-2R2G-2-PV	2.2	11	10		12
	GD100-004G-2-PV	4	17	16		20
	GD100-5R5G-2-PV	5.5	25	20		30
	GD100-7R5G-2-PV	7.5	33	30		40
-4 Model Three-phase,380V (0.75~200KW)	GD100-0R7G-4-PV	0.75	3.4	2.5		9
	GD100-1R5G-4-PV	1.5	5.0	4.2		9
	GD100-2R2G-4-PV	2.2	5.8	5.5		12
	GD100-004G-4-PV	4.0	13.5	9.5		16.5
	GD100-5R5G-4-PV	5.5	19.5	14		23.9
	GD100-7R5G-4-PV	7.5	25	18.5		30.6
	GD100-011G-4-PV	11	32	25		39.2
	GD100-015G-4-PV	15	40	32		49
	GD100-018G-4-PV	18.5	47	38		50
	GD100-022G-4-PV	22	56	45		60
	GD100-030G-4-PV	30	70	60		81
	GD100-037G-4-PV	37	80	75		90
	GD100-045G-4-PV	45	94	92		130
	GD100-055G-4-PV	55	128	115		150
	GD100-075G-4-PV	75	160	150		200
	GD100-090G-4-PV	90	190	180		250
	GD100-110G-4-PV	110	225	215		300
	GD100-132G-4-PV	132	265	260		360
	GD100-160G-4-PV	160	310	305		430
	GD100-185G-4-PV	185	345	340		500
	GD100-200G-4-PV	200	385	380		550

                                                            Brand
                                                            Invt

                                                            Item NO.
                                                            GD100-200G-4-PV

                                                            Product Origin
                                                            China

                                                            Color
                                                            Black

Characteristics of Solar Water Pump Inverter

Extensive voltage level and power spectrum: Provide support for three-phase 380V and single-phase/220V solar water pump inverters, power range of 0.4 kW to 110 KW
User-friendly: There is no need to configure any parameters—just connect the photovoltaic panel to the inverter, and after powering on, the PV pump can be turned on automatically.
Numerous safety precautions: It features protection features such alarms for reverse connections in the PV polarity and overvoltage protection.
Overheating automatic derating, for example, can significantly prolong the product's lifespan.
Advanced MPPT algorithm guarantees 99% solar power tracking efficiency.
Boost module 2.2KW and below versions can be fitted with a boost module to satisfy low voltage requirements, operation, which can lower the cost of the user system and solar panel setup.
Remote monitoring via GPRS allows for the optional GPRS module, which enables remote website and mobile app monitoring.
AC/DC switch configuration:Every product series is capable of automatically switching between grid AC and PV DC input, allowing for a whole day without maintenance.
IP54 solution: Provides solutions for IP54 rated cabinets.
