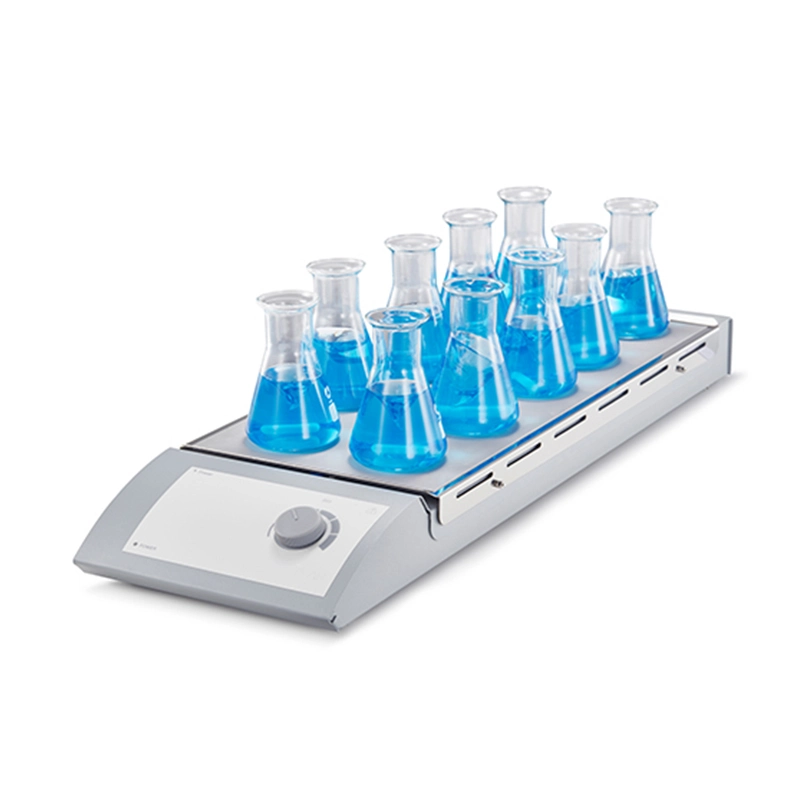

Magnetic Stirrer MS-H-S10 10Channel
(0 reviews)
Get Price
(357) Views
(0) Contacts


Contact Company





Guangzhou Ikeme Technology Co., Ltd.
Guangdong, China
(1584) Views
(5) Contacts

Laboratory magnetic stirrer ika digit manufacturing supplier
The laboratory is a risky and exciting area where new things are found. As such, the stages in the experiment must be followed exactly, and one of the most important tools for the experiment is the laboratory mixer. Preventing material from settling and mixing materials are its primary uses. Depending on the experiment, different stirrers are utilized. The magnetic stirrer rotates the stirring bar by means of the magnetic field's rotation. The stirring bar is roughly 10 mm, 20 mm, or 30 mm long, and some of the magnets are longer. Magnet forms include cylindrical, elliptical, and circular, among others, and can be chosen based on the experiment's scale. It can be done simultaneously and is primarily used for stirring and heating. It works well with low viscosity liquids or solid-liquid combinations.

Specifications MS-H-S10/MS-M-S10
Work plate Dimension 180x450mm
Work plate material Stainless steel with silicone
Motor type Brushless DC motor
Motor rating input 12W
Motor rating output 4W
Power 490W
Heating output 470W
Voltage 100-120/200-240V 50/60Hz
Stirring positions 10
Max. stirring quantity[H2O] 0.4Lx10
Speed display scale
Max. magnetic bar[length] 40mm
Speed range 0-1100rpm
Temperature display scale
Heating temperature range Room temp.-120°C
Over heat Protection 140°C
Temperature display accuracy IP42
Dimension [W x D x H] 182×622×65mm
Weight 3.2kg
Permissible ambient temperature 5-40℃ 80%RH

Main Characteristics of Magnetic Stirrer

  1. Brushless DC motor that requires no maintenance
  2. Top speed of 1100 rpm
  3. Maximum temperature of 120 °C
  4. A silicone cushion covers a stainless steel work plate, offers superior skid resistance and heating uniformity performance.
Main Characteristics of Magnetic Stirrer
  1. Brushless DC motor that requires no maintenance
  2. Range of motion: 0 to 1100 rpm
  3. The silicone cushion covering the stainless steel work plate offers superior skid resistance.
