Hybrid PTV Solar Panel

(0 reviews)

Get Price

(198) Views

(0) Contacts

Contact Company

SolarMaster

Zhejiang, China

(578) Views

(1) Contacts

                                                            Model
                                                            PVT-545M

                                                            Lenghth
                                                            2256mm

                                                            Width
                                                            1133mm

                                                            PV Peak Output *
                                                            545W

                                                            Solar Thermal Peak Output
                                                            1436W

                                                            Gross Area
                                                            2.56m2

                                                            Number of Cells
                                                            144

                                                            Dimensions of the Cell
                                                            182*91mm

                                                            Tempered Framework
                                                            6005-T5 Aluminum Alloy

                                                            Front Glass
                                                            3.2mm

                                                            Cell Type
                                                            Mono-crystalline / Poly

                                                            Module efﬁciency (%)
                                                            21.30%

                                                            Power Rang
                                                            340W-545W

                                                            Short circuit current (Isc)
                                                            13.92A

                                                            Maximum power voltage (Vmpp)
                                                            41.8V

                                                            Open circuit voltage (Voc)
                                                            49.65V

                                                            Maximum power current (Impp)
                                                            13.04A

                                                            Thermal Efficiency
                                                            70%

                                                            Coefﬁcient of thermal losses, a 1
                                                            3.2 W/m².K

                                                            Coefﬁcient of thermal losses, a2
                                                            0.019 W/m².K²

                                                            Solar Thermal Peak Output
                                                            1436W at 545W PV Panel

                                                            Maximum permissible pressure
                                                            10 bar

                                                            Stagnation temperature
                                                            150 C

                                                            Internal liquid capacitance
                                                            1.8L-2.3L

Applications of Hybrid PTV Solar Panel

We can provide you with hot water and electricity with our PVT Hybrid Solar Panel.
As well as being employed in a variety of private and business settings.

Characteristics of Hybrid PTV Solar Panel
A cutting-edge product that produces solar thermal and photovoltaic energy simultaneously is the SolarMaster PVT Hybrid Solar Panel. It can generate hot water for household and commercial use while increasing PV efficiency to a maximum of 50%.

With the following essential characteristics the PVT Solar Panel design is the first of its kind in China:

Solar PV & Solar Thermal in one unit.

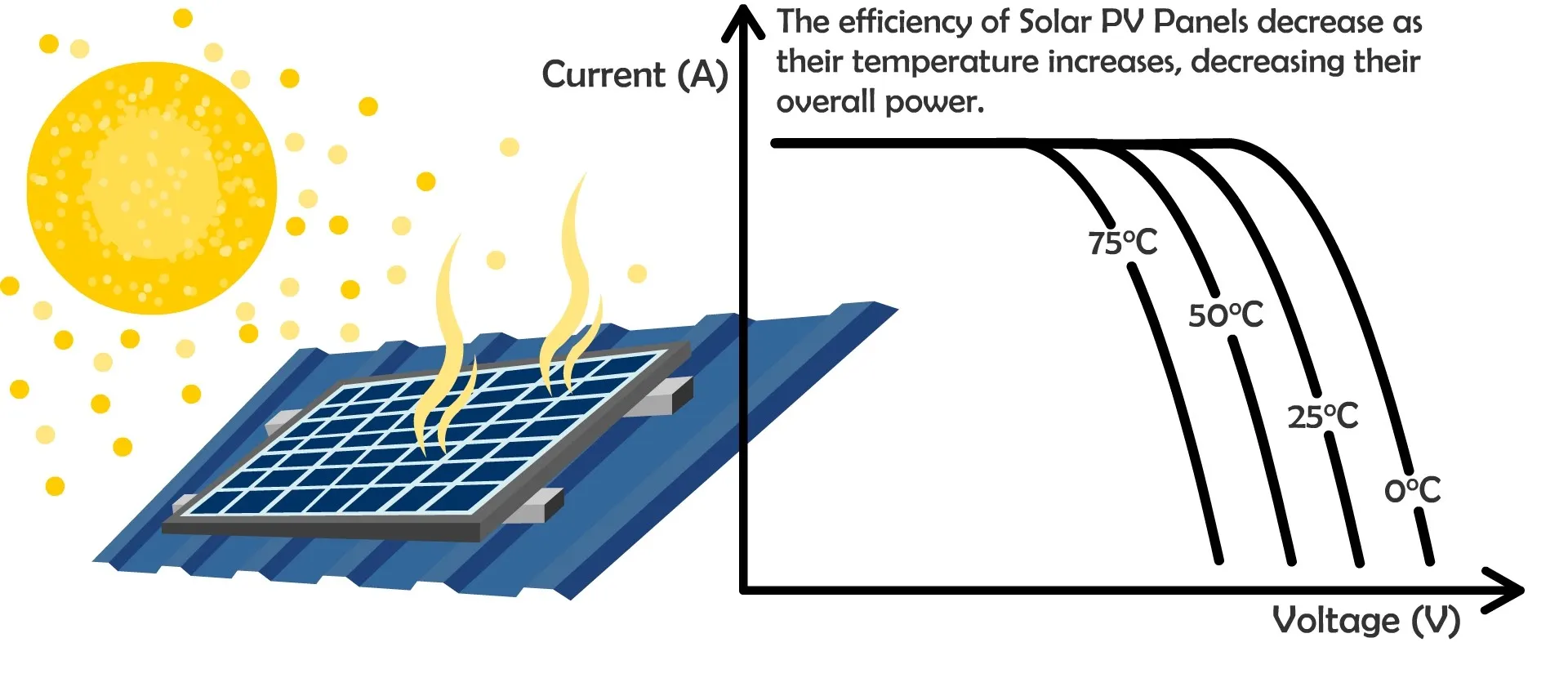

Increase in solar PV efficiency by 20%-50%.

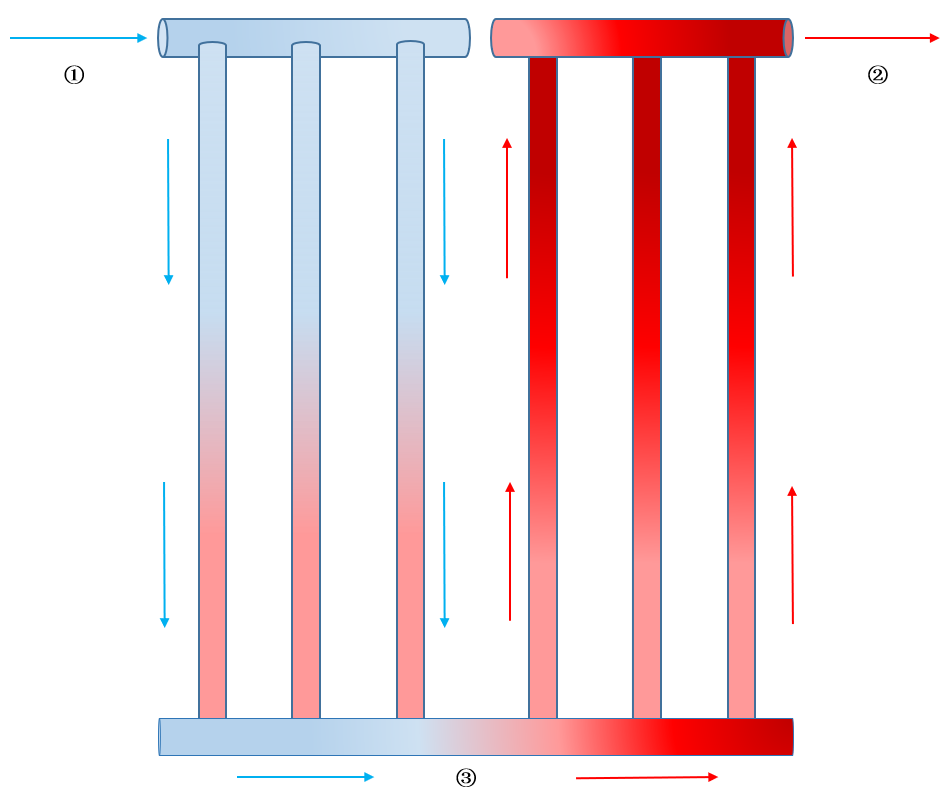

Increase the PV's lifespan with the help of its special internal cooling system.
40–70 degrees Celsius of hot water are created.
Easy structure, requires less upkeep.
High snow load strength and high wind load strength.
Simple to install.
