Semi-Flexible Solar Panel

(0 reviews)

Get Price

(160) Views

(0) Contacts

100 - 999 watts 1000 - 99999 watts
$0.67 $0.58
100000 - 999999 watts >= 1000000 watts
$0.55 $0.49

Contact Company

Shenzhen Huada New Energy Technology Co., Ltd.

Shenzhen, China

(426) Views

(0) Contacts

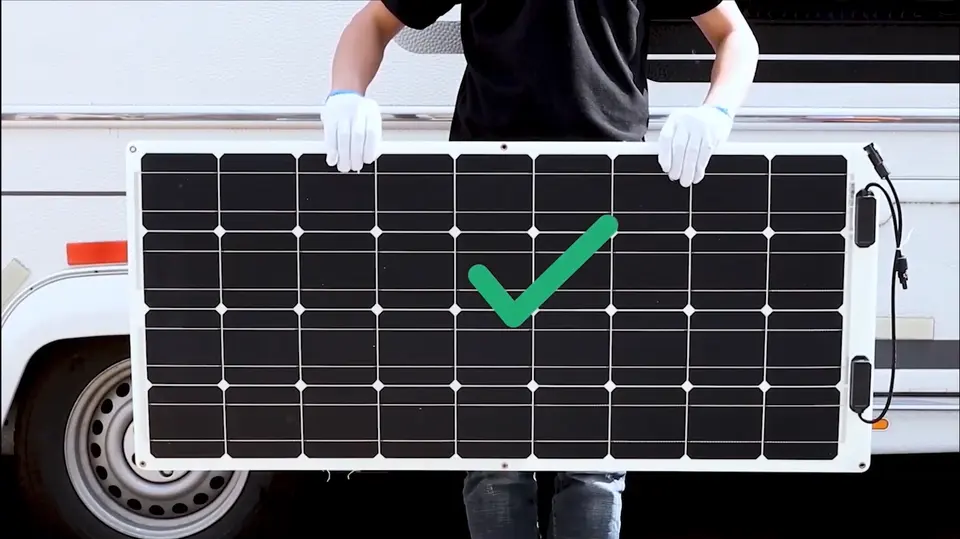

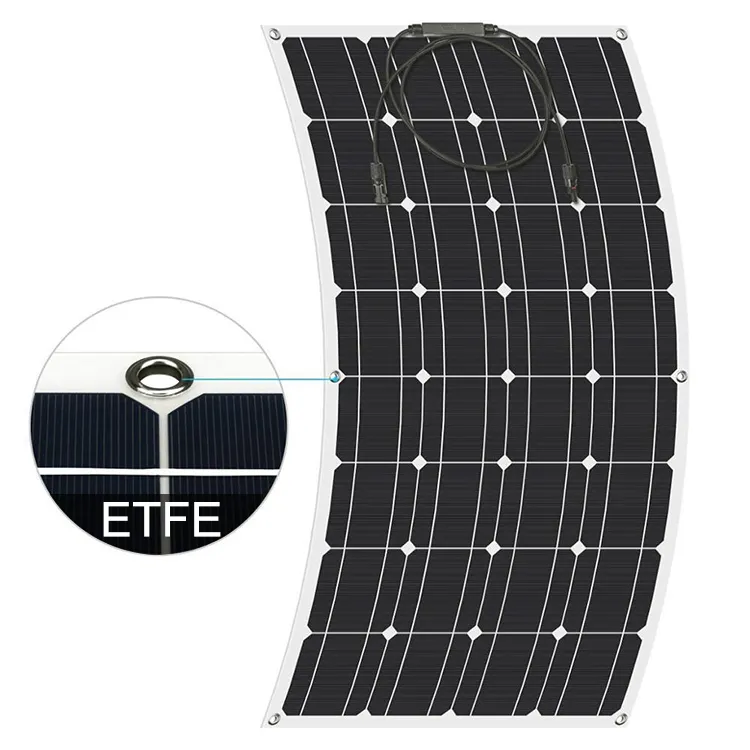

Semi-Flexible solar panels are the lightest, most convenient, and most efficient on the market, Suitable for installation on ships, trucks, travel roofs, and other harsh environments Integrated, bypass diodes to minimize output losses associated with partial shading, waterproof, salt water resistant, and less than 2mm thick, Adaptable to battery: from 5 to 50voltages, lead-acid or lithium

                                                            Maximum Rating Power (Pmax)
                                                            W 95 100 105 110 115

                                                            Open Circuit Voltage (Voc)
                                                            V 21.34 21.58 22.13 22.78 23.32

                                                            Packing configuration
                                                            20pcs/box,12box/pallet ,2800pcs/20ft

                                                            Maximum Power Voltage (Vmp）
                                                            V 18.32 18.47 18.60 18.72 18.9

                                                            Dimensions
                                                            1065*540*18mm

                                                            Weight
                                                            2.0kg

                                                            Short Circuit Current (Isc)
                                                            A 6.42 6.59 6.76 6.85 6.94

                                                            Solar Cell
                                                            32 mono 125*125mm

                                                            Maximum Power Current (Imp）
                                                            A 5.18 5.41 5.65 5.87 6.08

                                                            Power Tolerance
                                                            % 0/+3 0/+3 0/+3 0/+3 0/+3

                                                            Module Efficiency
                                                            %  19 20 21 22 23
