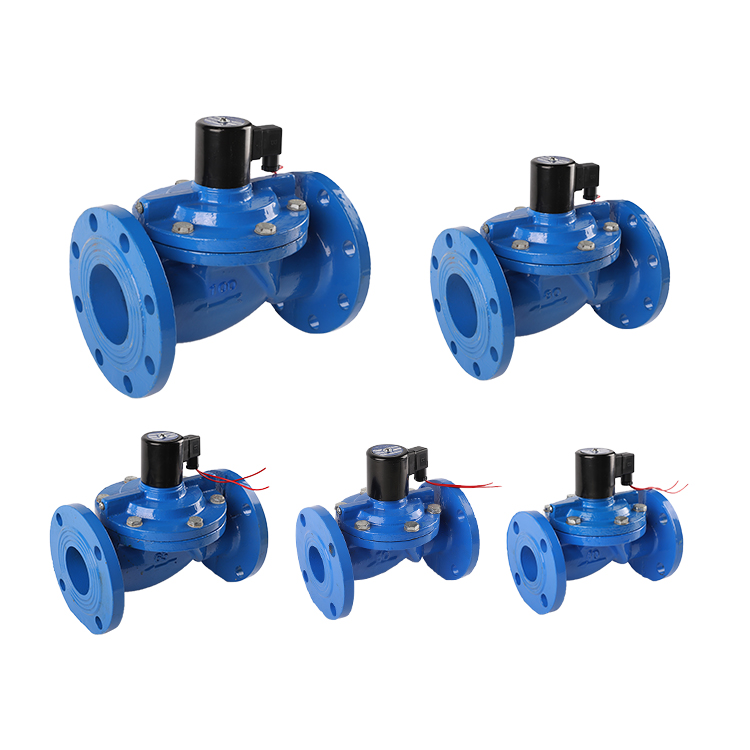

Flange Solenoid Valves

(0 reviews)

Get Price

(561) Views

(0) Contacts

1 - 29 Pieces
$33.00
30 - 49 Pieces
$31.50
>=50 Pieces
$30.50

Contact Company

Yuyao Yueer Valve Co., Ltd.

Zhejiang, China

(1859) Views

(36) Contacts

Solenoid valve installation instructions
1. Clean and flush the impurities and dirt in the pipeline before installation; if the thread needs to be wrapped with raw material tape and other fillers, pay attention not to drop the debris into the pipeline to prevent the solenoid valve from being blocked;
2. When installing, pay attention to keeping the arrow direction on the valve body consistent with the flow direction of the medium; if there is reverse pressure, a check valve must be installed;
3. In order to ensure and extend the service life of the solenoid valve, generally the coil is installed upwards; when space or conditions are limited, some series allow vertical installation.
Cast Iron Valve

The valve body adopts precision sealing casting, and the precise assembly size makes the inside of the valve body without any processing to ensure the sealing performance of the valve door.
Because the valve body adopts a three "O" ring design, it can reduce the friction resistance when opening and closing, greatly reduce the leakage of water and can replace the sealing ring without stopping the water.
The variety is complete, and the product quality is guaranteed. There is an arrow on the valve body, and the solenoid valve generally works in one direction, otherwise, there will be water leakage.

                                                            Type
                                                            SOLENOID VALVES, cast iron Solenoid Valve

                                                            Power
                                                            Solenoid, 15VA

                                                            Voltage
                                                            AC380V/AC220V/AC110V/DC24V/DC12

                                                            Place of Origin
                                                            Zhejiang, China

                                                            Media
                                                            Water

                                                            Temperature of Media
                                                            Normal Temperature

                                                            Brand Name
                                                            Yue Er

                                                            Working pressure
                                                            0.1-1.0Mpa

                                                            Working Temperature
                                                            -5-80℃
