Automatic 3-in-1 Glass Bottle Juice Filling Machine

(0 reviews)

Get Price

(256) Views

(0) Contacts

Contact Company

Zhangjiagang Beyond Machinery Co.,Ltd

Jiangsu, China

(897) Views

(2) Contacts

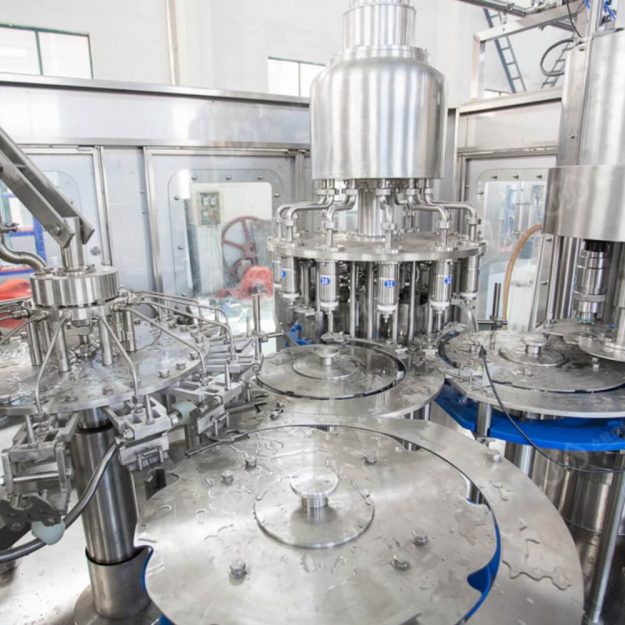

Part of the Rinsing
Rinsing pliers will carry and secure the glass bottles to the rinsing nozzles once they have been moved into the filling process. The bottles can then go to the filling section once the high-pressure rinse nozzles have finished spraying water.
Part of the filling

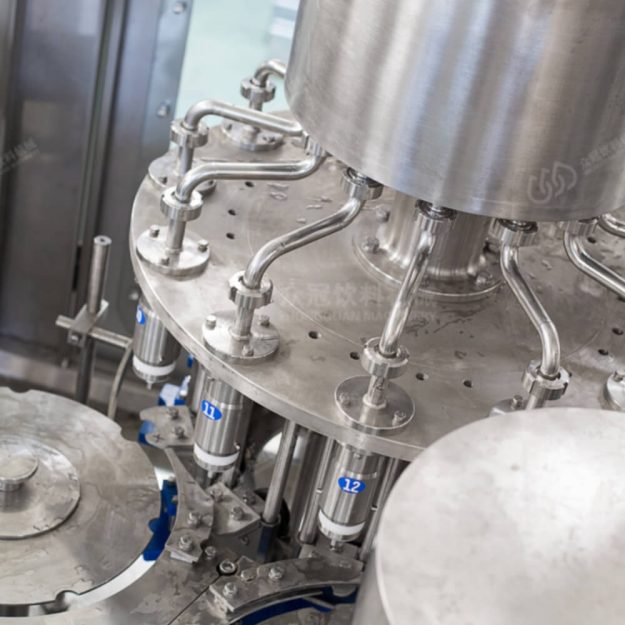

Following rinsing, the glass bottles will be transferred to the filling section via a rotating transmission plate situated between the rinsing and filling sections. After that, high-pressure spraying filling nozzles will fasten the bottle and precisely fill it with an equal volume of juice. The filled bottles will subsequently be sent to the capping section.
Part of Capping
Depending on the type of bottle cap, the revolving capping head caps the filled bottles (a crown cap, for instance, requires a different capping gear, as shown in the following photo). The product conveying belt will then move the completed goods out of the filling machine.

Model:	RCGF16-12-6	RCGF18-18-6	RCGF24-24-8	RCGF32-32-10
capacity: 500ml	4000	6000	8000	12000
filling pressure: (Mpa)	0.15-0.35	0.15-0.35	0.15-0.35	0.15-0.35
rinsing pressure: (Mpa)	0.2-0.25	0.2-0.25	0.2-0.25	0.2-0.25
filling volume: (L)	0.5	3.5	4	6
overall size: (mm)	21501400 2050	24501800 2350	27802200 2350	36002650 2350
weight: (kg)	2500	3500	4500	5500

                                                            bottle shape:
                                                            round or square

                                                            PET bottle (mm)
                                                            (Bottle Diameter): φ 50-. φ 110mm (Height): 150-340mm

                                                            Filling precision
                                                            ≤ ± 5mm

                                                            Cap
                                                            PE srew cap
