GMA20 Automatic Cement Slurry Grout Mixer With Cement Silo

(0 reviews)

Get Price

(240) Views

(0) Contacts

Contact Company

Gaode Equipment

Henan, China

(653) Views

(0) Contacts

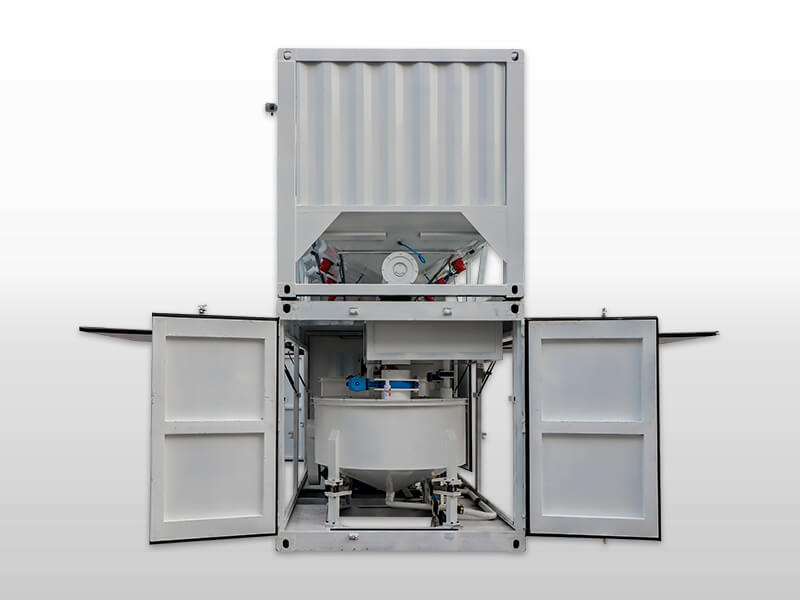

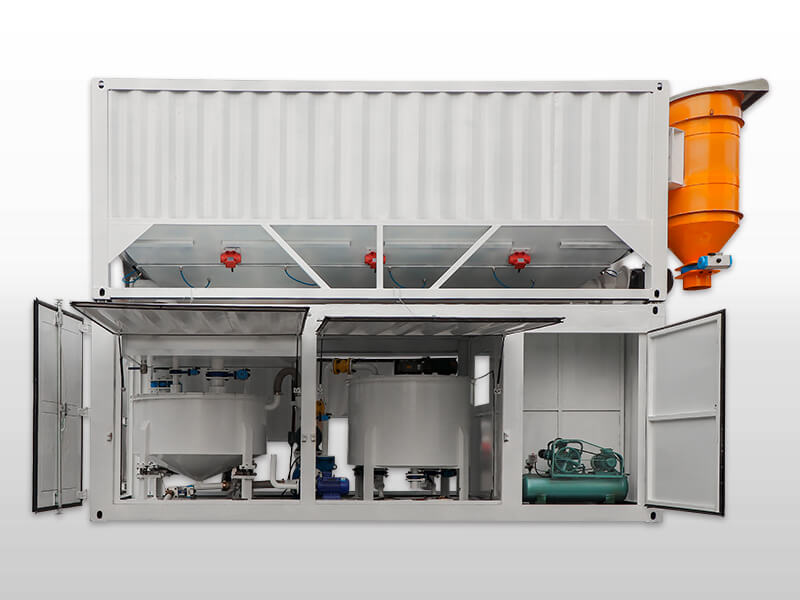

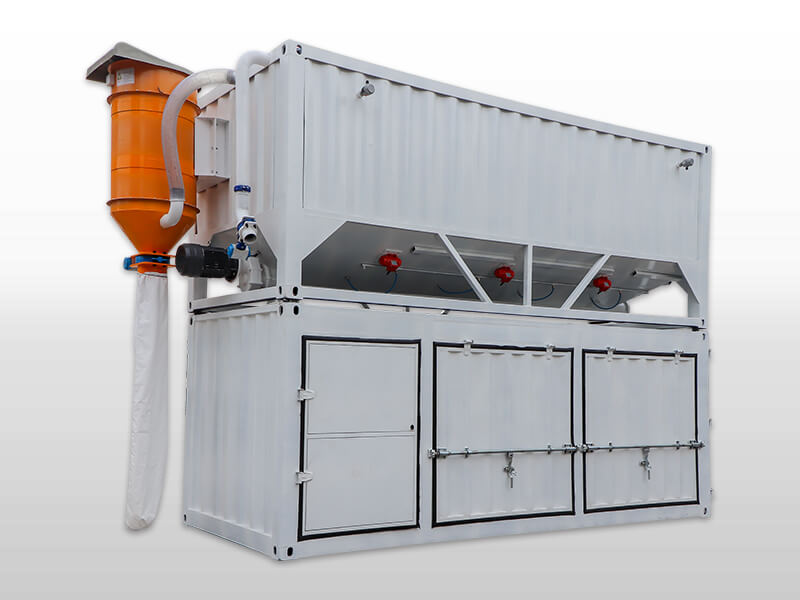

The GMA20 Automatic Slurry Grout Mixer Batching Plant was designed primarily to produce cement grout by mixing water and cement powder in a high-turbulence manner or to create a bentonite sully for plastic muds by mixing water and bentonite powder. Also, the preparation of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid component (for every screw conveyor). HCS17B Horizontal Cement Silo is designed based on a 20ft container size. It can be stored in a standard container directly. Save shipping costs. More container silos can be stacked together to work. The cement mixture or the bentonite sully is then transferred to the other units, according to the type of foreseen geotechnical machines. Automatic slurry grout mixer batching plant can be worked under container silo. 20ft and 40ft container silos both are provided.

                                                            HCS17B Cement Silo Volume
                                                            17m³

                                                            Mixer Max. output
                                                            20m³/h

                                                            Mixer Volume
                                                            1000L

                                                            Agitator Speed
                                                            25r/min

                                                            Agitator Volume
                                                            1100L

                                                            Mixer Flow
                                                            1200L/min

Slurry Grout Mixer Applications
For mixing cement and water, among other materials, the GMA20 Automatic Slurry Grout Mixer Batching Plant with HCS17B Cement Silo is a standard 20GP container type.
The GMA20 Automatic slurry grout mixer batching plant with HCS17B cement silo finds application in various construction and ground improvement projects.

Here are some specific applications of this system:
1. Soil Stabilization
The GMA20 grout mixer plant is used to mix slurry grout that can be injected into the soil to improve its stability. This application is commonly employed in road construction, embankment reinforcement, and slope stabilization projects.
2. Ground Improvement
The grouting system is utilized for ground improvement techniques such as jet grouting, soil mixing, and permeation grouting. It enables the efficient mixing and delivery of grout to strengthen and stabilize the soil, enhancing its load-bearing capacity.
3. Tunneling
In tunneling projects, the GMA20 slurry mixer plant is used to produce slurry grout that is injected into the ground to stabilize and seal the surrounding soil or rock formations. This helps to prevent water ingress and provide structural support during tunnel excavation.
4. Foundation Repairs
The grout mixing system is employed for foundation repair and underpinning applications. Slurry grout mixed with the GMA20 is injected into the ground beneath existing foundations to improve their load-bearing capacity or to lift and level settled foundations.
5. Retaining Walls and Piling
Slurry grout mixed with the GMA20 can be used in the construction of retaining walls and for pile foundation applications. It provides a stable and strong grout material that can enhance the performance and durability of these structures.
6. Dam and Reservoir Construction
The injection slurry batching plant system is utilized in dam and reservoir construction projects for grouting applications. It ensures the proper mixing and delivery of grout to fill voids, stabilize rock formations, and enhance the overall integrity of the structure.
These applications showcase the versatility of the GMA20 automatic slurry grout mixer batching plant with the HCS17B cement silo in various construction and ground improvement projects, providing efficient and reliable solutions for slurry grout mixing and delivery.

Features of Cement Silo:

1. Upper recalling dipstick and lower recalling dipstick
2. Dust collector
3. Pressure relief valve
4. OLI-WOLONG vibrator
1. High-speed colloidal grout mixer.
2. Main pipeline valves are all pneumatic valves.
3. The mixture, cycling pump, and agitator have an automatic cleaning function.
4. Cement can be added by cement silo or screw feeder automatically.
5. The preparation of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid component.
6. Two modes of operation: fully automatic mode and manual mode.
7. Easy to operate and maintain.
8. Up to 5mm particle size.
9. Equipped with some ceiling lamps, for illuminating the different working areas.
10. Can be placed directly in the 20ft cabinet.
