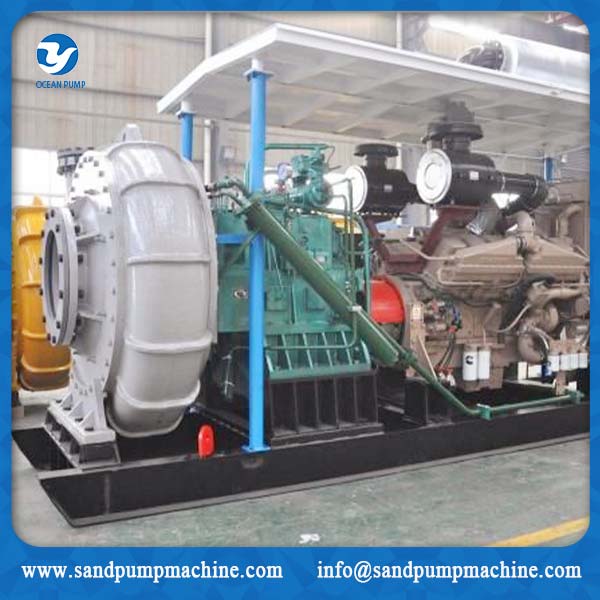

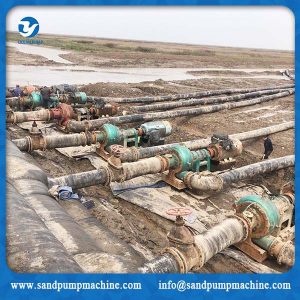

Sand or construction mud slurry is typically transported over large distances using a dredge booster pump. Connect two or more pumps in series to achieve the transportation needs by pressurization when one pump is unable to reach the discharge distance. The products come in sizes ranging from 4 to 40 inches, and a single booster pump may convey goods up to 5000 meters. Sand or construction mud slurry is typically transported over large distances using a dredge booster pump. Connect two or more pumps in series to achieve the transportation needs by pressurization when one pump is unable to reach the discharge distance.
Different slurry pump impeller types can be freely chosen based on the various conveying particles and head requirements when choosing a dredge booster pump, resulting in great efficiency and energy savings. High-concentration slurry delivery is possible with a dredge booster pump. The products come in sizes ranging from 4 to 40 inches, and a single booster pump may convey goods up to 5000 meters.

Dredge booster pump specifications

Model	Flow Q	Head H	RPM	Efficiency	Inlet Dia.	Outlet Dia.	NPSH	Max. particle Dia.
Model	m3/h	m	r/min	%	mm	mm	IL	Five-Blade	Three-Blade
250DB	1100-1300	40-65	500-650	70-74	350	250	<4.5	86	144
300DB	1500-2200	30-65	400-550	74-78	450	300	<4	144	241
450DB	3000-4000	35-67	350-500	76-80	600	450	<4.5	125	254
500DB	4000-5500	40-65	350-450	78-80	650	500	<4.8	150	250
600DB	5000-9000	55-80	320-400	81-85	650	600	<6	160	220
700DB	8000-12000	60-85	280-380	83-85	750	700	<6	180	280
800DB	10000-15000	50-70	260-360	79-80	850	800	<6	200	300
900DB	12000-19000	50-75	280-330	73-85	950	900	<6	210	320
1000DB	16000-25000	23-76	180-290	85-87	1100	1000	<6	230	350

                                                            Rated Power(kw)
                                                            22-315

                                                            Standard Flow(m3/h)
                                                            1100-25000

                                                            Standard Head(m)
                                                            23-76

The dredge booster pump's characteristics
1. Able to handle the largest size and percentage of solids in sand and slurry
2. A strong framework.
3. Long-distance transportation performance is excellent.
4. Materials that are highly resistant to wear.
5. Design of the most efficient impeller and volute.
6. Sturdy bearing and shaft design.
7. Auxiliary impeller design, which successfully stops leaks.
8. An interchangeable, wear-resistant alloy sleeve that is quenched.
9. A bearing cooling circulation system and thin oil lubrication system.
10. Sturdy bearing and shaft design.
11. Customized manufacturing and design are available.
12. Simple to assemble and dismantle.
13. Minimal downtime and upkeep.
14. Rotation can be done to the right or left.
15. The location of the outlet is optional.
16. Remove the impeller easily by knocking out the ring.
