Booster Pump Operating Conditions
1. Ambient temperature: Max. +40°C
2. Liquid temperature: +4°C ~ +40°C
3. System Pressure: Max. 8.5 kg/cm²
4. Relative humidity: Max. 85% (RH)
5. Under normal operation, it is not necessary to adjust the pressure unless the cut-in pressure is higher than the preset activation point (refer to specification).

Booster Pump Applications

The HQ series pumps are designed for water supply and pressure boosting in residential, commercial, and light industrial applications where low or inadequate water pressure exists.
It is suitable for boosting pressure from underground or surface water supplies.

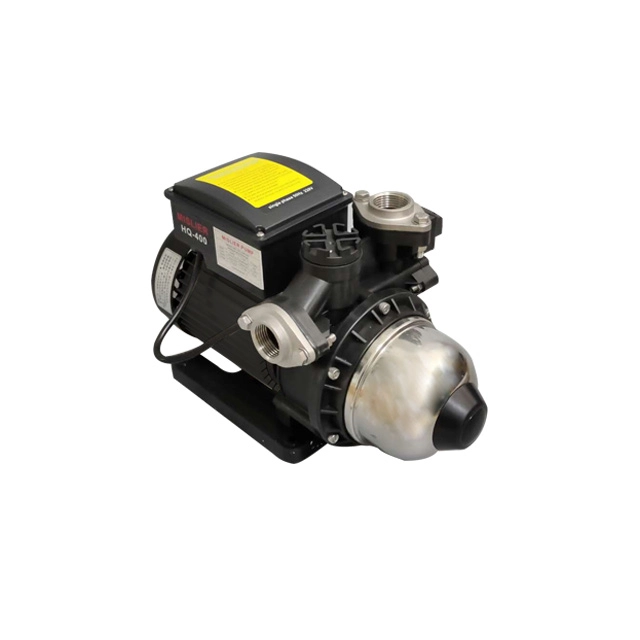

Underground or Surface Water Supplies

Booster Pump Features
1. The HQ is a complete, all-in-one unit, consisting of a pump, motor, pressure tank, and electronic controller. The built-in electronic controller provides constant pressure which ensures that the pump starts automatically when water is consumed and operates continuously until water is not required.
2. Compact design and quiet operation make the HQ series suitable for many applications.
3. The HQ is constructed from top-quality corrosion-resistant materials.
4. Pump has a built-in dry-run shut-off with an automatic reset function.
5. The motor has a built-in thermal overload to protect against high operating temperatures and overcurrent.
6. The HQ has an anti-cycling feature that prevents the pump from continuously starting and stopping when you have a dripping tap or minor leak in the system.
7. The pumps will lift the water up to 7.6m. with a foot valve and pump suction piping filled with water.
