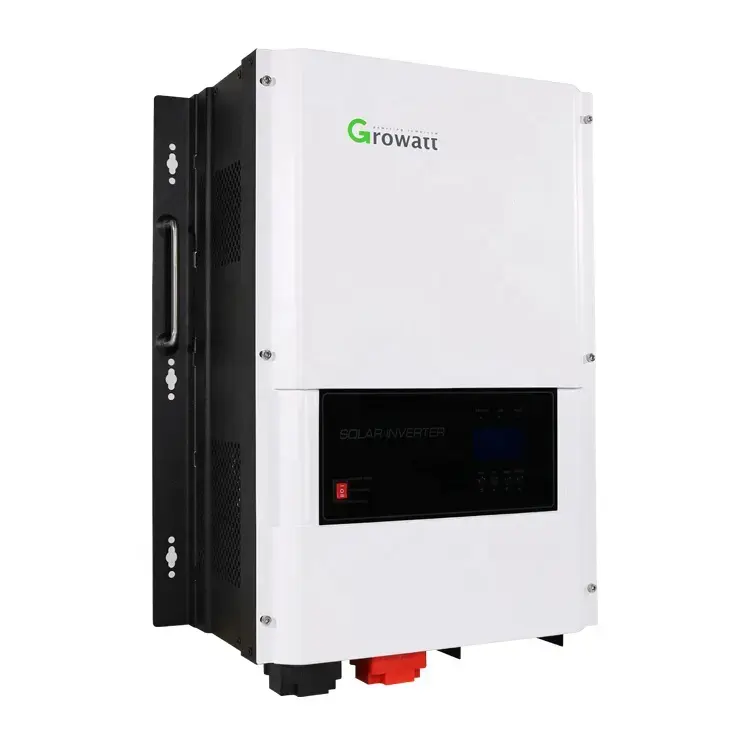

Growatt SPF 4000-12000T DVM Off Grid Inverter
(0 reviews)
Get Price
(213) Views
(0) Contacts

GROWATT 48V DC SPF 5000 ES Growatt Solar Inverter Growatt Off Grid Inverter


Contact Company





Anhui Hepburn Energy Technology Co., Ltd.
Anhui, China
(566) Views
(2) Contacts

Datasheet
SPF 4000T DVM
SPF 5000T DVM
SPF 6000T DVM
SPF 8000T DVM
SPF 10000T DVM
SPF 12000T DVM
INVERTER OUTPUT
Rated Power
4KW
5KW
6KW
8KW
10KW
12KW
Surge Rating
12KW
15KW
18KW
24KW
30KW
36KW
SOLAR CHARGER
Maximum PV Charge Current
80A
120A
Maximum PV Array Power
5000W
7000W
Number of independent MPP trackers/string per MPP tracker
1/1
2/1
MPPT Range Operating Voltage (VDC)
60~145VDC
60~145VDC
Maximum PV Array Open Circuit Voltage
150VDC
150VDC
Maximum Efficiency
>98%
>98%
AC INPUT
Max. Charging Current
40A
50A
60A
70A
80A
100A
MECHANICAL SPECIFICATIONS
Dimensions(W/H/D)
360/540/218mm
360/540/218mm
360/540/218mm
380/650/225mm
380/650/225mm
380/650/225mm
Weight
42kg
47kg
52kg
64kg
66kg
75kg
Efficiency
Max. efficiency
97.5%
97.5%
97.5%
97.6%
97.6%
97.7%
Euro-European efficiency
97.0%
97.0%
97.0%
97.1%
97.1%
97.1%

MPPT efficiency 99.5%
DC switch yes
DC reverse polarity protection yes
Integrated all - pole sensitive leakage yes
Battery reverse protection yes
Grid monitoring yes
Output over current protection yes
Ground fault monitoring yes
Output over voltage protection yes
Battery Voltage 48DVC
Battery Type Lithium/Lead-acid
Waveform Pure sine wave/same as input(bypass mode)
Transfer Time 10ms(max)
Nominal Output Voltage RMS 104-110-115-120/208-220-230-240VAC(optional)
Inverter Efficiency(Peak) >85%
Output Frequency 50Hz/60Hz+/-0.3Hz
Voltage 240VAC
Frequency Range 50Hz/60Hz (Auto sensing)
Selectable Voltage Range 184~272VAC(UPS);154~272VAC(APL)
Operation Temperature Range 0°C to 45°C
Capacity of battery 3~12kWh
Protection Degree IP20

Off-grid inverter applications:
This multipurpose split-phase output off-grid solar inverter is ideal for self-consumption and off-grid backup power applications since it combines a UPS function module, a low-frequency pure sine wave inverter, and an MPPT solar charge controller into one device.

Off-grid inverter characteristics:
1. MPPT solar charge controller
2. Rated power 4KW to 12KW
3. A huge transformer in a low-frequency inverter
4. AC output with pure sine waves
5. Protection against overload, short circuit, and deep discharge
6. LCD setting for adjustable AC/solar input priority
7. Adaptable to generator power or mains voltage
8. WiFi/GPRS remote monitoring
