Singel-Phase Off Grid Inverter

(0 reviews)

(159) Views

(0) Contacts

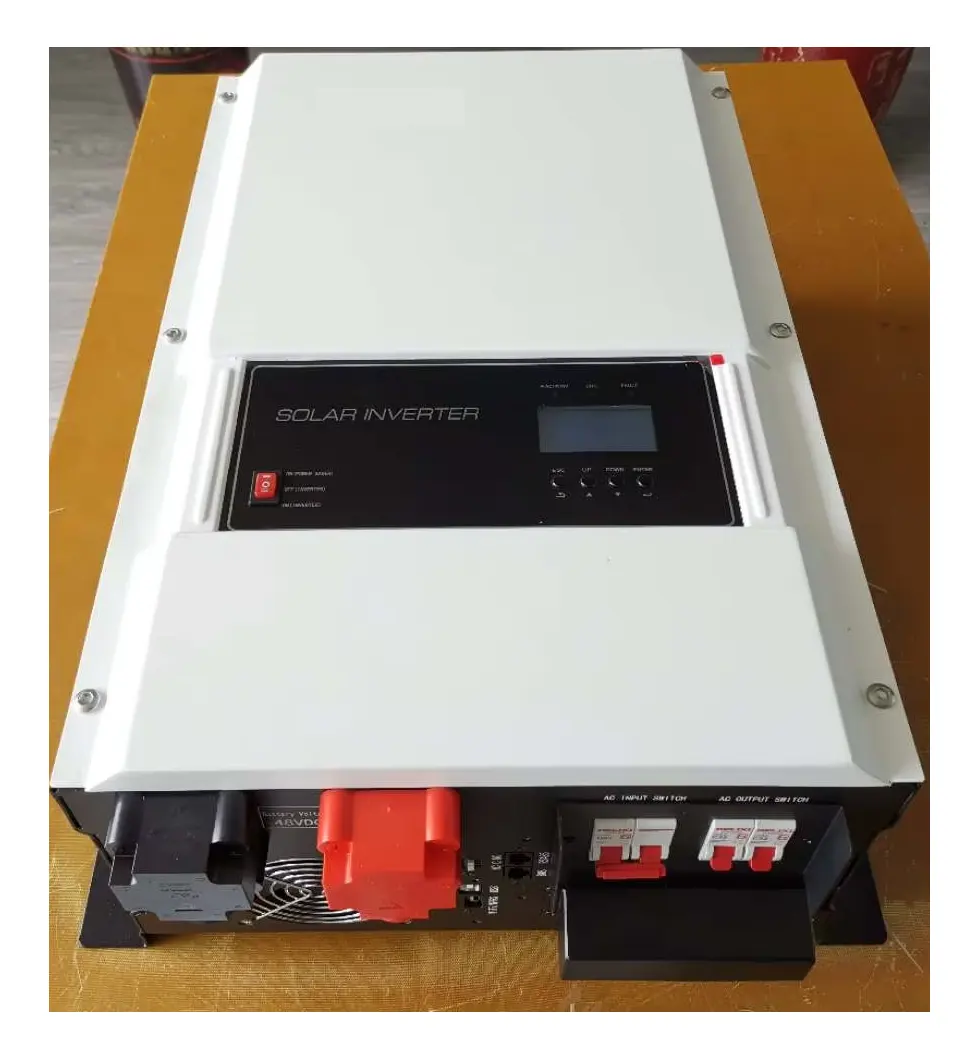

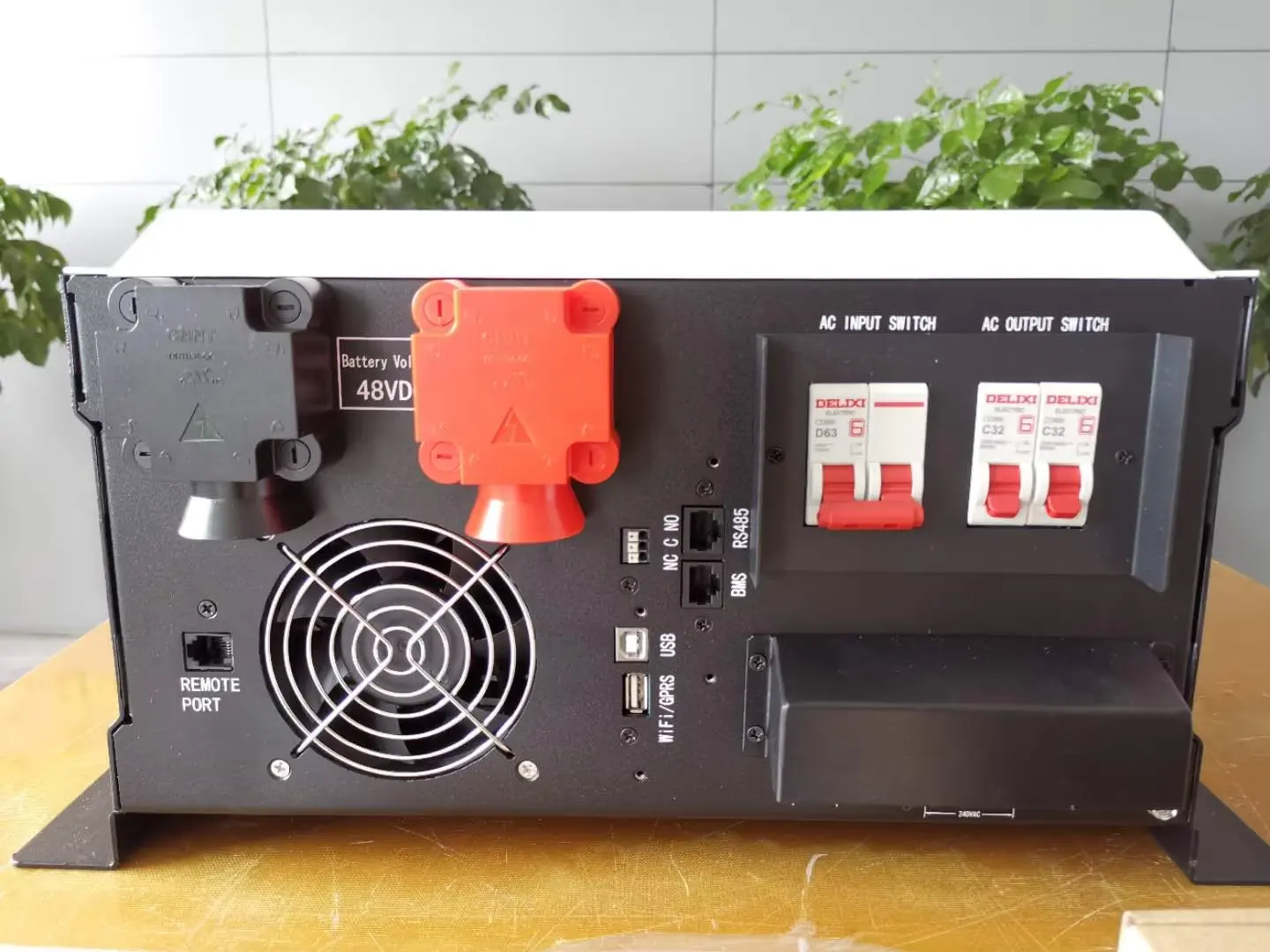

Amazing GROWATT Off Grid Inverter 8Kw HVM Solar Storage Inverter 4Kw 5Kw 6Kw 8Kw 10Kw 12Kw Singel-Phase Off Grid Inverter

Contact Company

Nanjing Amazing Technology Co., Ltd.

Jiangsu, China

(811) Views

(8) Contacts

Product Details
Product Reviews

                                                            Datasheet
                                                            SPF-8000T HVM

                                                            Battery Type
                                                            Lithium/Lead-acid

                                                            Battery Voltage
                                                            48VDC

                                                            Rated Power
                                                            8KW

                                                            Maximum PV Charge Current
                                                            120A

                                                            Maximum Charge Current
                                                            70A

                                                            Protection Degree
                                                            IP20

                                                            Operating Temperature Range
                                                            0°C - 45°C

                                                            Dimension (W/H/D)
                                                            380/650/255mm

                                                            Net Weight
                                                            64kgs

                                                            Surge Rating
                                                            24KW

                                                            Maximum PV Array Power
                                                            7000W

                                                            Voltage
                                                            230 VAC

                                                            Transfer Time
                                                            10ms typical，20ms MAX

                                                            Waveform
                                                            Pure sine wave/Same as input（bypass mode）

                                                            Power Factor
                                                            1.0

                                                            Output Frequency
                                                            50Hz/60Hz ±0.3Hz

                                                            Number of Independent MPP Trackers/ Strings Per MPP Tracker
                                                            2/1

                                                            Maximum Efficiency
                                                            ＞98%

                                                            MPPT Range @ Operating Voltage
                                                            60~145VDC

                                                            Maximum PV Array Open Circuit Voltage
                                                            150VDC

                                                            Line Mode Efficiency
                                                            ＞95%

                                                            Inverter Efficiency (Peak)
                                                            ＞88%

                                                            NOminal Output Voltage RMS
                                                            220V/230V/240VAC(±10%RMS)

                                                            Selectable Voltage Range
                                                            154-272 VAC (for appliances) ; 184-272 VAC (UPS)

                                                            Frequency Range
                                                            50Hz/60Hz (Auto sensing)
