Full Kit Hybrid Small Solar Power Solar System 220v 380v Single Phase Three Phase 10 kW, 3000 kW, 5 kW, 10 kWh

Zhejiang, China

(642) Views

(5) Contacts

Fundamental System Architecture

The basic use of this inverter is demonstrated in the following illustration.
In order to have a fully functional system, it also includes the following equipment.
Utility or Generator
PV modules
For further system architectural options based on your needs, speak with your system integrator.
In a home or office setting, this inverter may power a variety of gadgets, including motors.
Items like air conditioners and freezers.

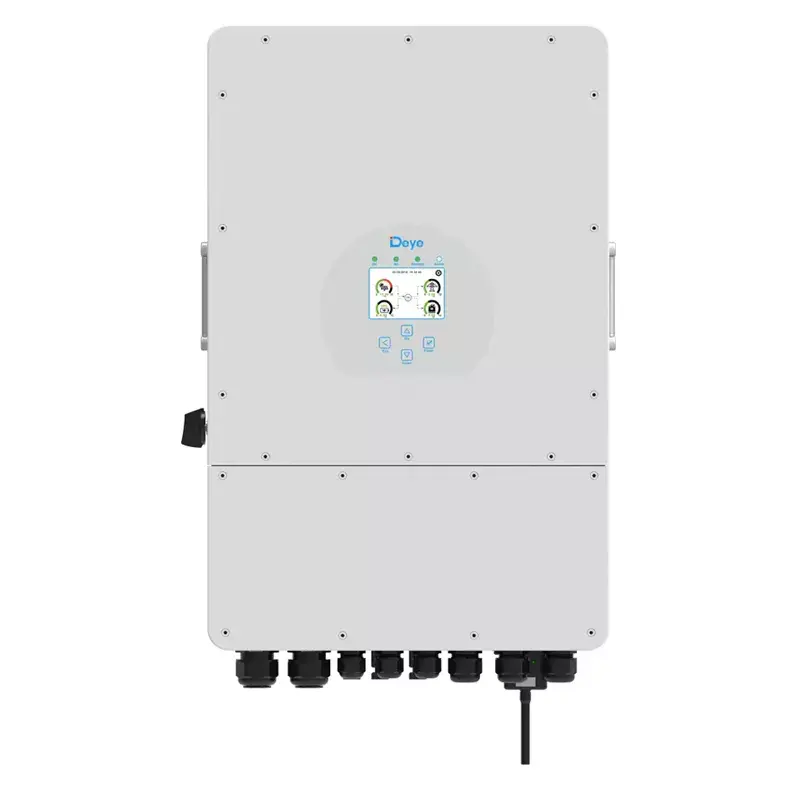

Deye Hybrid Solar Power system single phase output 3.6 kW, 5 kW, 8 kW
Power/Module	3.6KW SUN-3.6K-SG03LP1-EU	5KW SUN-5K-SG03LP1-EU	6KW SUN-6K-SG03LP1-EU	8KW SUN-8K-SG01LP1-EU
Wi-Fi module	1 pc	1 pc	1 pc	1pcs

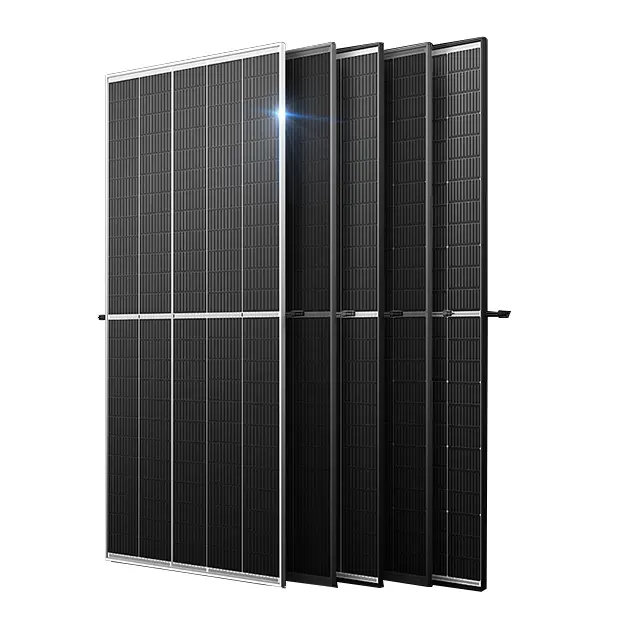

Mono Solar Panel 450w	8 pcs	12 pcs	14 pcs	16 pcs

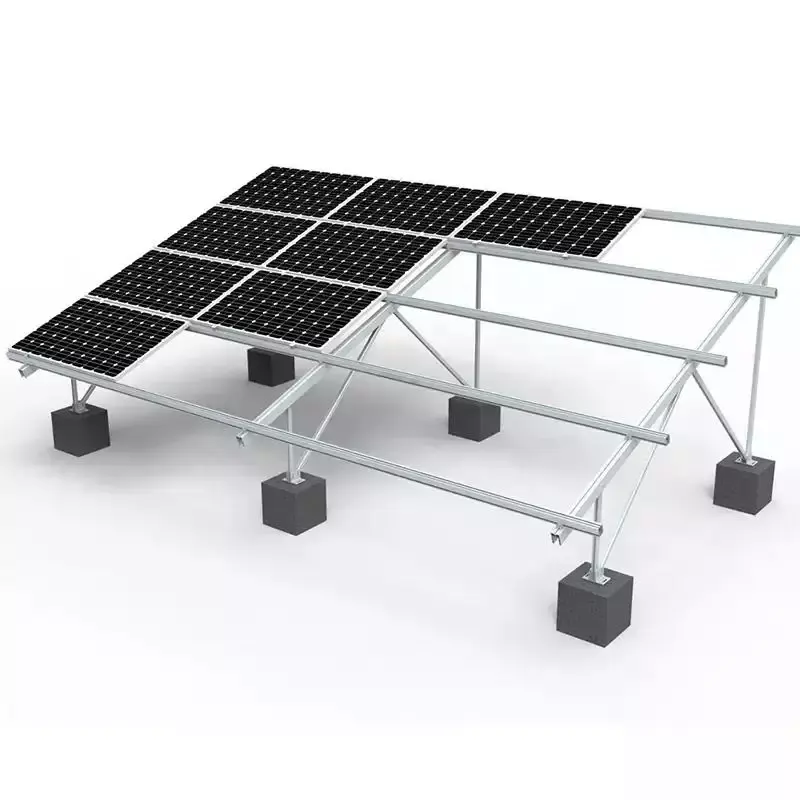

Mounting bracket	1 set roof or ground	1 set roof or ground	1 set roof or ground	1 set roof or ground

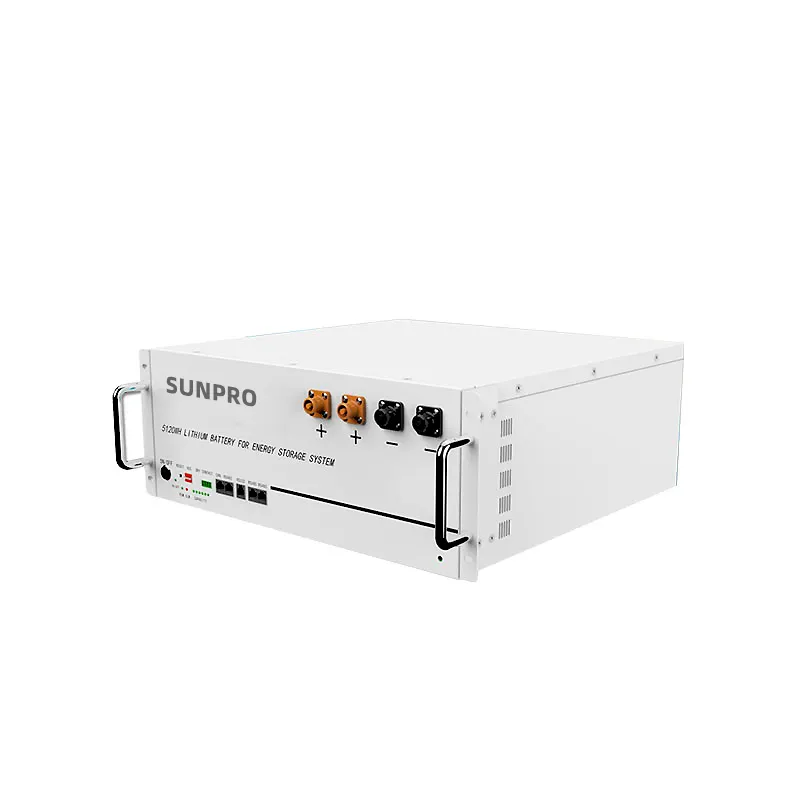

lithium battery	5.12	5.12	5.12	5.12

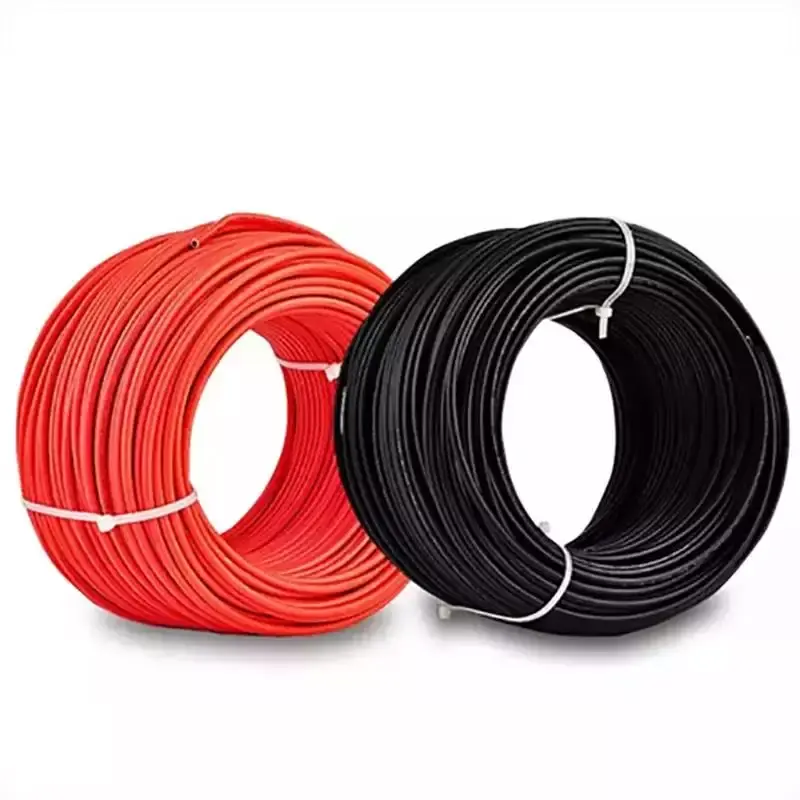

PV cable	200m	200m	300m	300m
MC4 connector	10 pairs	10 pairs	10 pairs	10 pairs
Deye Hybrid Solar Power system three phase output, 5KW-12KW
Power/Module	5KW SUN-5K-SG04LP3-EU	8KW SUN-8K-SG04LP3-EU	10KW SUN-10K-SG04LP3-EU	12KW SUN-12K-SG04LP3-EU
Wi-Fi module	1 pc	1 pc	1 pc	1pcs
Mono Solar Panel 450w	12 pcs	20 pcs	24 pcs	26 pcs
Mounting bracket	1 set roof or ground	1 set roof or ground	1 set roof or ground	1 set roof or ground
lithium battery	5.12	5.12	10.24	10.24
PV Cable	200m	300m	400m	400m
MC4 connector	10 pairs	10 pairs	10 pairs	10 pairs

Characteristics of Hybrid Solar Power System

Three-phase pure sine wave inverter, 230V/400V.
Self-consumption and grid feedback.
Auto restart as the air conditioner recovers.
Programmable grid or battery supply priority.
Multiple operating modes can be programmed, including UPS, off-grid, and on-grid.
Through LCD settings, battery charging current and voltage can be adjusted according to applications.
Priority for AC, solar, and generator chargers can be adjusted via an LCD option.
Both generator power and mains voltage are compatible.
Protection against overload, overheating, and short circuits.
Designing a smart battery charger to maximize battery performance
Limit functions stop too much power from flowing into the grid.
Integrating two strings for a single MPP tracker and enabling Wi-Fi tracking as well.
Three-stage MPPT charging on a smart settable for maximum battery performance.
Function of time of use.
Clever load feature.
