Home / Treatment Systems / Nanofiltration System / Commercial Nanofiltration NF Systems NF-300

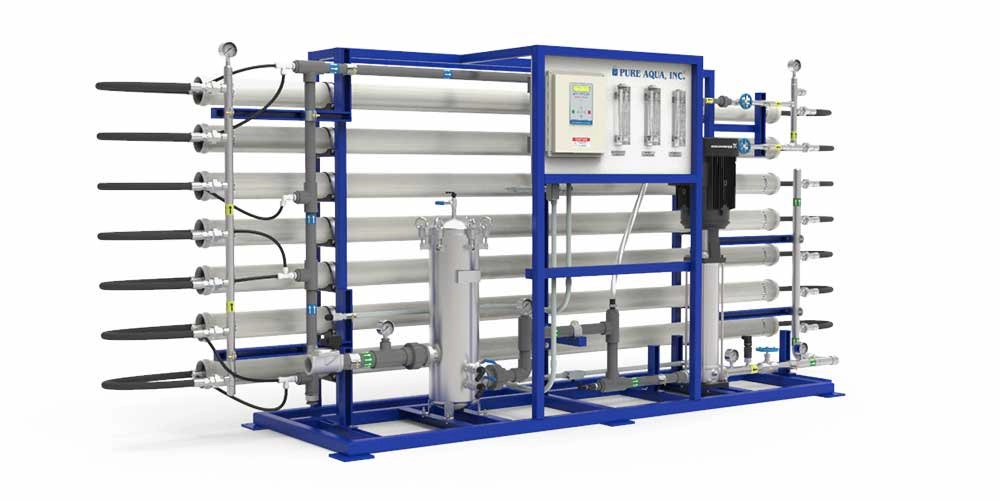

Commercial Nanofiltration NF Systems NF-300
(0 reviews)
Get Price
(96) Views
(0) Contacts


Contact Company





Aqua Components LLC
Riyadh, Saudi Arabia
(480) Views
(8) Contacts

In order to soften (remove polyvalent cations) and remove disinfection by-product precursors like natural and synthetic organic matter, Pure Aqua's Commercial Nanofiltration Systems NF-300 Series is a membrane filtration device that is most frequently used with water that has low total dissolved solids, such as surface water and fresh groundwater.
One of the greatest water treatment options available is a commercial nanofiltration system. Its special qualities (enumerated below) contribute to providing significant benefits in a number of applications, such as creating excellent water from untreated water. Furthermore, these systems have been engineered to be extremely effective in water softening applications without requiring additional chemicals or salts. Because nanofiltration systems use state-of-the-art membrane technology, they have become the most popular option in commercial applications. In addition to removing tannins and turbidity from water, NF systems are now significantly more effective than RO systems at removing color thanks to these more recent characteristics.
Another factor contributing to NF systems' appeal is their low operating pressures, which reduce power and energy expenses. Since NF systems have less sensitive membranes and are better able to reject bivalent ions like calcium, magnesium, uranium, and radium, they don't need as much pretreatment as reverse osmosis systems. Additionally, its molecular weight is between ultrafiltration and reverse osmosis, increasing its adaptability for various sectors.
Please give our team a call to find out more about how our entire line of commercial nanofiltration systems can benefit your business if you require cutting-edge systems for applications involving the production of fresh drinking water, food and beverage water treatment, agriculture, hospitals, restaurants, etc.

Potential Choices:
  1. Hour and water meters
  2. Dosing devices for chemicals
  3. Methods for media prefiltration
  4. Devices for UV sterilization
  5. Softening devices for water
  6. Following RO systems
  7. Both pre- and post-treatment skid mounted
  8. Containerized NF systems
  9. Give the water conductivity monitor food.
  10. The membrane cleaning skid
  11. Hourly automatic flushing
  12. Combining feed and permeate
  13. Export crating
  14. Third-phase, 50/60 Hz, 220V or 380-415V
  15. Switch for the product tank level
  16. Sensor-equipped pH meter for feed or product
  17. Feed a sensor to an ORP monitor
  18. Flow totalizer

Max. feed water temperature 42°C
Feed water pressure 20 to 50 psi
Operating pressure 80 to 150 psi
H2S must be removed
Turbidity should be removed
Max. Iron content 0.05 ppm
Feed water TDS 0-1,000 ppm
Equipment upgrade higher TDS
Hardness over 1 GPG requires antiscalant dosing
pH tolerance range 3-11
Max. Silica Tolerance 60 ppm @ 60% recovery
Operate at higher TDS lowering recovery

Applications of Nanofiltration NF Systems
Nanofiltration is also becoming a more widely used simultaneous concentration and partial (monovalent ion) demineralization, as well as in industries such as food and beverage, dairy, and textile industry wastewater treatment

Typical Characteristics of Nanofiltration NF Systems:
  1. LCD display
  2. Starter motor
  3. NEMA 12 enclosure
  4. Switch with low pressure
  5. Switch with high pressure
  6. Gauges of liquid-filled pressure
  7. Monitor of permeate conductivity
  8. Concentrate and permeate flow meters
  9. Carbon steel frame with a powder coating
  10. Membranes with a 4-inch TFC spiral winding
  11. Multistage pump made of stainless steel with a TEFC motor
  12. FRP membrane enclosures
  13. Cartridge prefilter with a 5 micron size
  14. 460V, 3Ph, 60Hz power needs
  15. Control panel based on microprocessor
  16. Set points and programmable time delays
