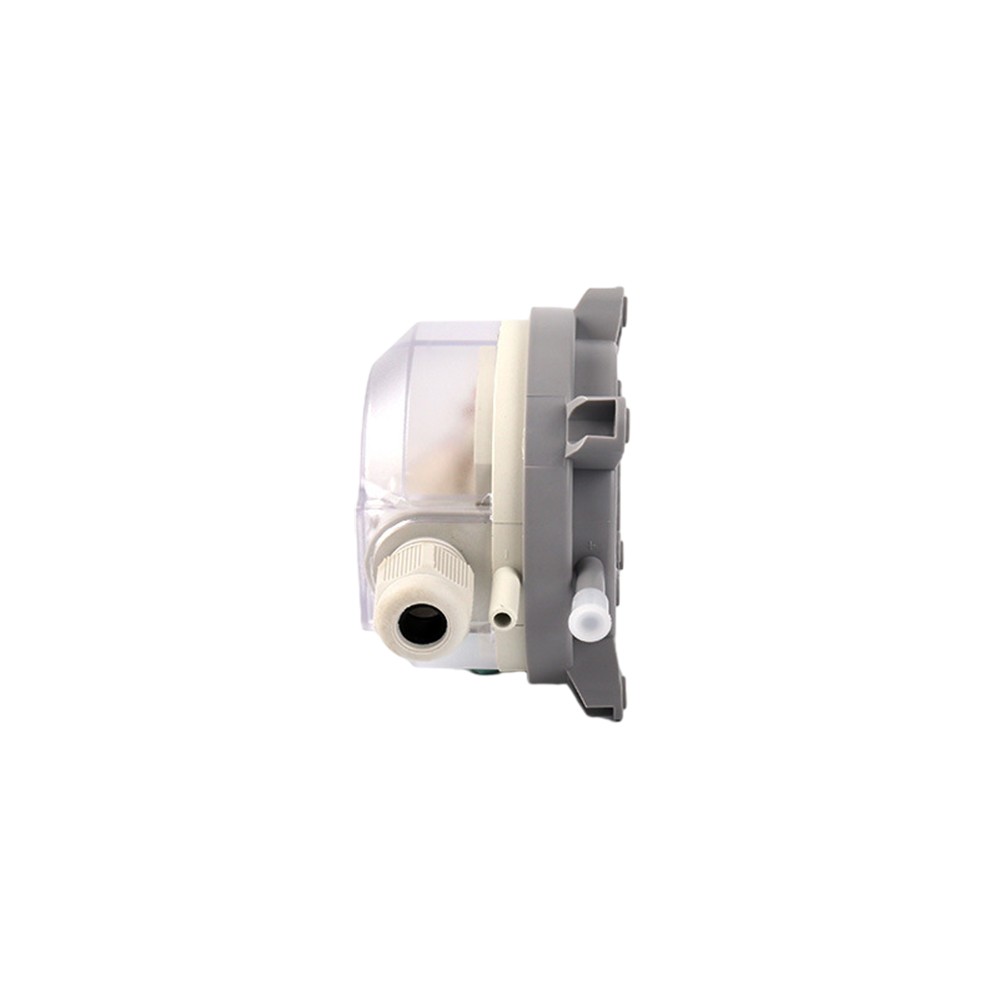

Differential Pressure Switch

(0 reviews)

Get Price

(79) Views

(0) Contacts

Contact Company

Changzhou KB Instrument & Meter Co., Ltd.

Jiangsu, China

(752) Views

(0) Contacts

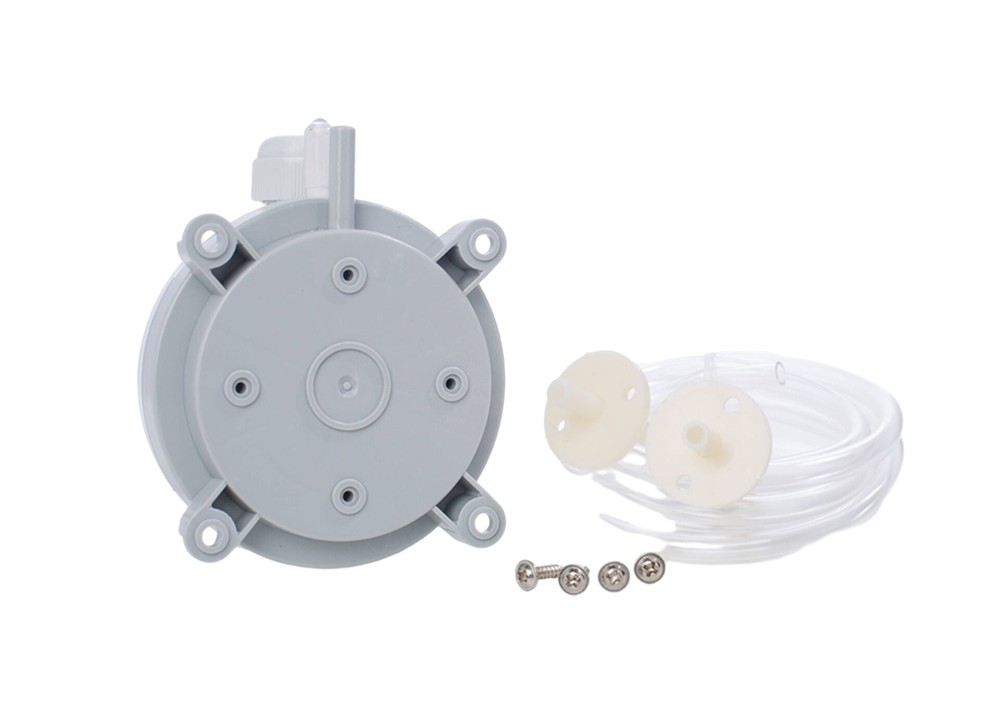

CONTENTS OF DELIVERY
The delivery includes (in the case of individual packages) the following parts:
1 930 Differential Pressure Switch
1 data sheet with installation information for the duct kit consisting of:

3 m of silicone hose
Joining pipes with 5 screws
Self-tapping screws for mounting the housing
Terminal screws for electrical installation.

APPLICATIONS of Differential Pressure Switch
Differential pressure switches, such as those used to monitor the air flow status of an air-handling system, a fan, a filter, or a fire damper.

The advantages of a differential pressure switch

Easily change the switching point using the Pascal scale.
It is feasible to change the direction of the CM conduit entry in 180° steps.
Ovals of Differential Pressure Switch
CE approval according to the low-voltage directive EEC73/23.

TECHNICAL SPECIFICATIONS of Differential Pressure Switch

Max. operating pressure 2500 Pa
Pressure media air, non-flammable gases, and non-aggressive gases
Pressure connections of two plastic tubes, outside diameter: 6.0 mm
Switching capacity 1.5 A, (0.4)/250 Vac
Electrical connections can be screw terminals, DIN 46244, 6.3 x 0.8, or AMP connectors.
Conduit entry PG11
Protection class IP54
Mounting lugs integrated in the bottom housing (alternative: mounting angles)
Medium/ambient temp. -20 …+85 ℃
Storage temperature: -40…+85℃
Membrane material: silicone
