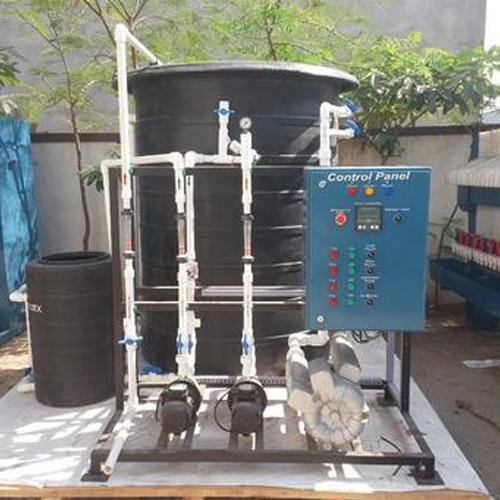

Compact Sewage Treatment Plant

(0 reviews)

Get Price

(748) Views

(0) Contacts

Contact Company

Ecoagulation Technology

Gujarat, India

(1923) Views

(47) Contacts

With sincerity and hard work of our professionals, we have carved a niche for ourselves in this domain by providing a premium quality gamut of Compact Sewage Treatment Plant.

1. Preliminary Treatment: This is the first stage of the sewage treatment plant process and its main objective is the removal of coarse solids and other large materials often found in raw wastewater. Preliminary treatment operations typically include large filtering screens, grit removal and, in some cases, breaking of large objects. Excess grit causes severe pump blockages thereby affecting a range of subsequent treatment pumps. Flow measurement devices, often standing-wave flumes, are always included at the preliminary treatment stage.

2. Primary Treatment: The main purpose of this treatment is to reduce any heavy solids (organic & inorganic) that settle to the bottom by sedimentation while oil, grease & lighter solids float to the surface by skimming. The settled and floating materials are removed and the remaining liquid may be discharged oSTP or subjected to the next stage i.e. secondary treatment. Primary treatment removes about 60% of suspended solids from wastewater.

3. Secondary Treatment: The prime objective is the further treatment of the effluent from primary treatment to remove dissolved and suspended biological matter. The biological solids removed during secondary sedimentation, called secondary or biological sludge, are normally combined with primary sludge for sludge processing. Secondary treatment may require a separation process to remove the micro-organisms from the treated water prior to discharge or tertiary treatment. Secondary treatment removes more than 90% of suspended solids.

                                                            Capacity (KLD)
                                                            4 KLD

                                                            Feed Flow Rate(m3/day or m3/hr)
                                                            4 m3/day

                                                            Application
                                                            Industry	Dairy Industry

                                                            Secondary Treatment Technology
                                                            Mixed Bed Bio Reactor(MBBR)

                                                            Air Blower Power
                                                            8 kW

                                                            Voltage
                                                            220 - 320 Volt

                                                            Impurities To Be Removed
                                                            Oil & Grease, Dissolved Minerals

                                                            Brand
                                                            Ecoagulation Technology

                                                            Power Source
                                                            Electric

                                                            Material Of Construction
                                                            Mild Steel

                                                            Frequency
                                                            50 Hz

                                                            Phase
                                                            Three Phase

                                                            Country of Origin
                                                            Made in India
