MBBR Mixer

(0 reviews)

200 USD

(294) Views

(0) Contacts

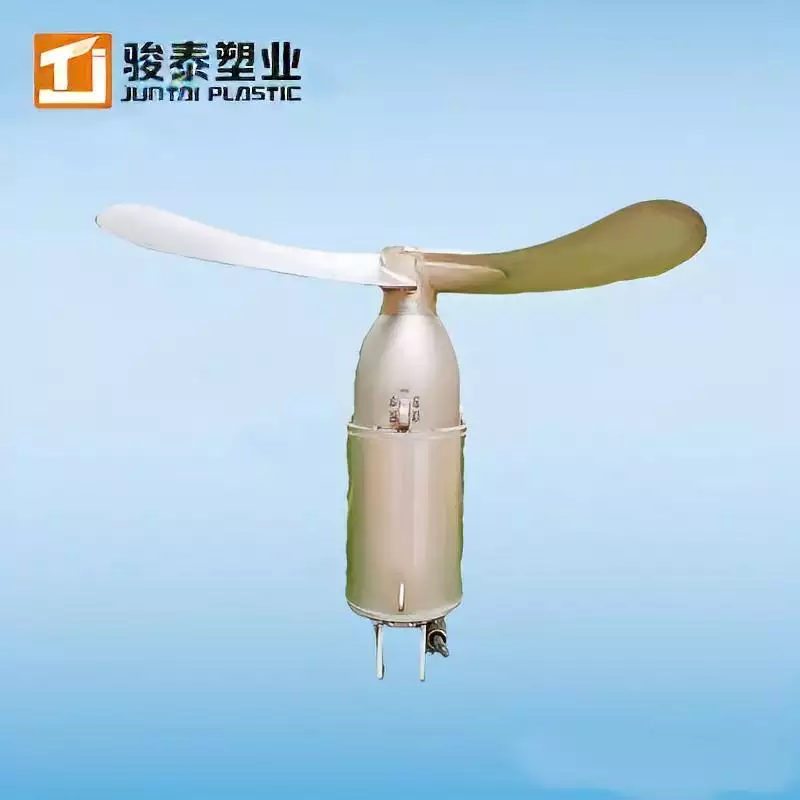

Juntai MBBR Mixer is specially developed for gentle mixing of the liquid plastic carrier elements (bio media) in MBBR tanks.

1 piece/pieces

$200.00 - $800.00

Contact Company

Hangzhou Juntai Plastic Products Co., Ltd

Hangzhou, China

(967) Views

(5) Contacts

1. Low-speed push flow series products use cycloid reducers, equipped with small power, low speed, large impeller diameter, and wide service area. The impeller is made of polyurethane material and aluminum alloy, with high strength and corrosion resistance, which can push the flow and create water flow in addition to the function of mixing.
2. The motor winding of the submersible mixer is insulated with class F and the protection level is IP68. When used in the aeration system of the sewage plant, the energy consumption of the system can be greatly reduced and the oxygen filling volume can be significantly increased, which can effectively prevent sedimentation.
The liquid media used in the MBBR processes in modern sewage treatment plants is usually made of HDPE like Juntai MBBR Media.
1. Lower Speed of Impeller speed is only 106 r/m, but Submersible Mixer most is 400 to 1000r/min, it is only 10 to 20% of them. Double-stage new reducer meets Bio carrier tank with special process requirements
2. Large diameter three-leaf stainless steel blades to meet Hydraulics and bio carrier process requirements
3. The propeller can achieve self-cleaning, the propeller is stainless steel material, Good design but also considers the function of automatic cleaning.
4. Equipped with the installation system developed by Juntai, it can be installed on the equipment from multiple angles.
Low-Speed Mixer Performance Parameters
Juntai MBBR Mixer is designed in such a way that they have an exceptionally large, inner surface area on which the bacteria can grow without being knocked off or otherwise destroyed when they rotate and hit each other.

                                                            Warranty of core components
                                                            5 years

                                                            Core Components
                                                            PLC

                                                            Place of Origin
                                                            Zhejiang, China

                                                            working depth
                                                            less than 20m

                                                            Brand Name
                                                            JUNTAI

                                                            Function
                                                            water mixing & agitator

                                                            Weight
                                                            0.37kW~7.5kW, 50~200Kg

                                                            Weight (KG)
                                                            25 kg

                                                            Power
                                                            0.37kW~7.5kW, 0.37kW~7.5kW

                                                            Productivity
                                                            500L/Hour

                                                            Warranty
                                                            5 years

1. MBBR reactors
2. Fish ensilage
3. Acidic liquids
4. Liquids with a high chloride content, Such as at
5. Desalination plants
6. Anoxic and anaerobic tanks
7. SBR reactors
8. Sludge tanks
