Diesel Engine Water Pump

(0 reviews)

(126) Views

(0) Contacts

Model QS agricultural irrigation water pump isasingle-stage double-suction horizontal split centrifugal pump and used to transport pure water and the liquid of both physical and chemical nature similar to those of water, the maximum temperature of which must not be over80ºc ,suitable for water supply and drainage in factories, mines, cities and electric stations, waterlogged land drainage and irrigation of farming land and carious hydraulic projects.This model is widely used in agriculture irrigation, fire fighting, steel, power industry

US $2,000 / Piece |1 Piece (Min. Order)

Contact Company

Shijiazhuang An Pump Machinery Co., Ltd.

Hebei, China

(657) Views

(0) Contacts

                                                            Type
                                                            Electric or Diesel Engine Chemical Pump

                                                            Media
                                                            Water Pump

                                                            Theory
                                                            Centrifugal Pump

                                                            Trademark
                                                            AN PUMP

                                                            Origin
                                                            Shijiazhuang City, China

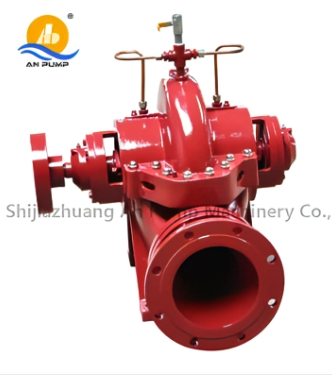

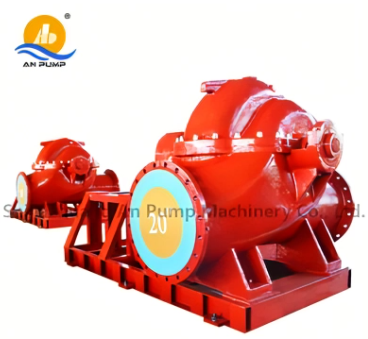

QS Irrigation Split Case Water Pump Application

Irrigation system	Agriculture irrigation,farm irrigation and spray irrigation
General water supply	Circulation of HVAC building systems,water booster service, boiler feed,general circulation service and more.
Agriculture/food/beverage	Irrigation,water supply,food processing,beverage processing ,fertilizers.
Manufacturing	Pulp and paper fans,plastic&rubber,metal&steel, pharmaceutical,paper mills,air wash,marine ballast service.
Fire/disaster relief	Fire pumps,fire protection,flood control,disaster relief, federal/military.
Utilities:Water/waste water	Power generation stations,desalination, energy recovery turbines
Chemical/mining	Chemical plants,refineries,petroleum distribution,coal sites, pumping.

QS Irrigation Split Case Water Pump Feature
QS pump is a single-stage double suction in the open centrifugal pump, used to transport pure water and physical and chemical properties similar to water liquid, its maximum temperature must notexceed 125 ºC,
(1) Have QS and QSH two types.
Viewed from motor, the direction of the QSH pump is anti-clockwise, that is the suction in the left, the discharge in the right. The rotating direction of the type QS pump is clockwise, that is the suction in the right, the discharge in the left. Also can move the driver to another edge according to the user's requires. Then, the rotating direction, the suction and discharge direction isin the opposite as the described above.
(2)Supply full set split-casing centrifugal pump, motor, coupling, the inlet diameterless than 200mm match the common base.
(3)The pump is axial split casing construction.
(4)Large capacity
