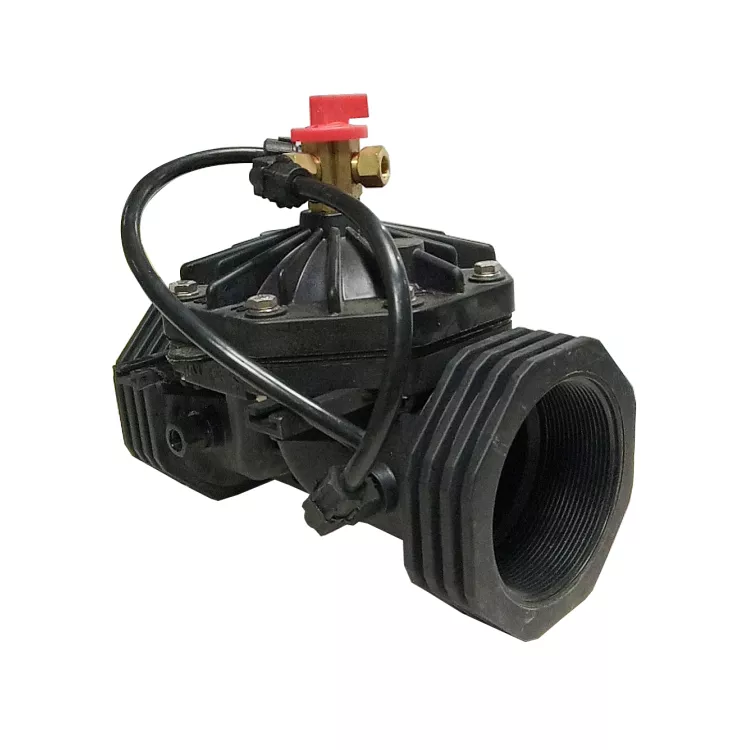

Thread Pressure Sustaining Valve 1.5”Female

(0 reviews)

30 USD

(718) Views

(0) Contacts

Pressure Sustaining Valves are automatic and operate according to pressure.

1 Piece
US $30-35

Contact Company

Fujian Dafengshou Irrigation Technology Co., Ltd.

Fujian, China

(1734) Views

(9) Contacts

Maintaining Pressure Automatic valves work in response to pressure. Flow limitation, pumps, pressure and surge control, flush valves, pilots, and solenoids, among other combinations. In this way, system hydraulic conditions are continuously balanced and controlled, safeguarding system components and design specifications. The globe-equipped, angled valves, which range in size from 1.5" to 6", can be double-chambered and are made of composite and engineering plastics. Its internal structure has a streamlined design that significantly lowers head loss and increases water flow.

                                                            Item NO.
                                                            SRPF15

                                                            Measurement(cm)
                                                            25.5*24.5*22

                                                            G.W(Kgs)
                                                            2.0

                                                            Working pressure range
                                                            0.35-10bar

                                                            Pressure adjustment range
                                                            0.8-6.5bar

                                                            Connection method
                                                            internal thread / flange

                                                            Pressure adjustment range
                                                            0.08-0.65mpa

Applications of Thread Pressure Sustaining Valve
1. Systems of Low Supplied Pressure Irrigation.
2. Watering System for Agriculture.
3. Stations for Reducing Pressure.
4. System of water supply.

Characteristics of Thread Pressure Sustaining Valve
1. Pressure Control via Hydraulics.
2. Avoids deformation of the diaphragm.
3. Large capacity for flow.
4. Outstanding performance in regulating low flow.
5. Constructed using sturdy materials.
