Online Multi-parameter Self-cleaning Sensor

(0 reviews)

Get Price

(510) Views

(0) Contacts

>= 2 pieces

$1,450.00

Contact Company

Yantai Chemins Instrument Co., Ltd.

Shandong, China

(1779) Views

(20) Contacts

Online multi-parameter self-cleaning digital sensor, using integrated design, reliable and easy-to-use products. Up to 5 parameters can be measured at the same time, and the data can be directly transmitted to the acquisition platform.

Dissolved oxygen sensor
Measuring range	0～20mg/L
Precision	±2%F.S.
Resolution	0.01mg/L
Turbidity sensor
Measuring range	0～1000NTU
Precision	±3%F.S.
Resolution	0.1NTU
Conductivity sensor
Measuring range	0～5000uS/cm
Precision	±1.5% F.S.
Resolution	1
pH sensor
Measuring range	0～14pH
Precision	±0.1pH
Resolution	0.01pH
Ammonium Nitrogen
Measuring range	0～10.00mg/L or 0～100.00mg/L
Precision	±10% or ±1mg/L
Resolution	0.01mg/L
Temperature
Measuring range	0～50℃
Precision	±0.5℃
Resolution	0.1℃
Additional information
output method	RS-485(Modbus/RTU)
Cleaning method	automatic cleaning
Power supply	12VDC±5%
Cable length	Standard 5 meters, other lengths can be customized

Model iMP-300

Product Features:

Product Advantages

In integrated design, up to 5 parameters can be measured at the same time.
Built-in temperature, and optional digital sensors such as pH, conductivity, dissolved oxygen, turbidity, etc., suitable for long-term online monitoring.

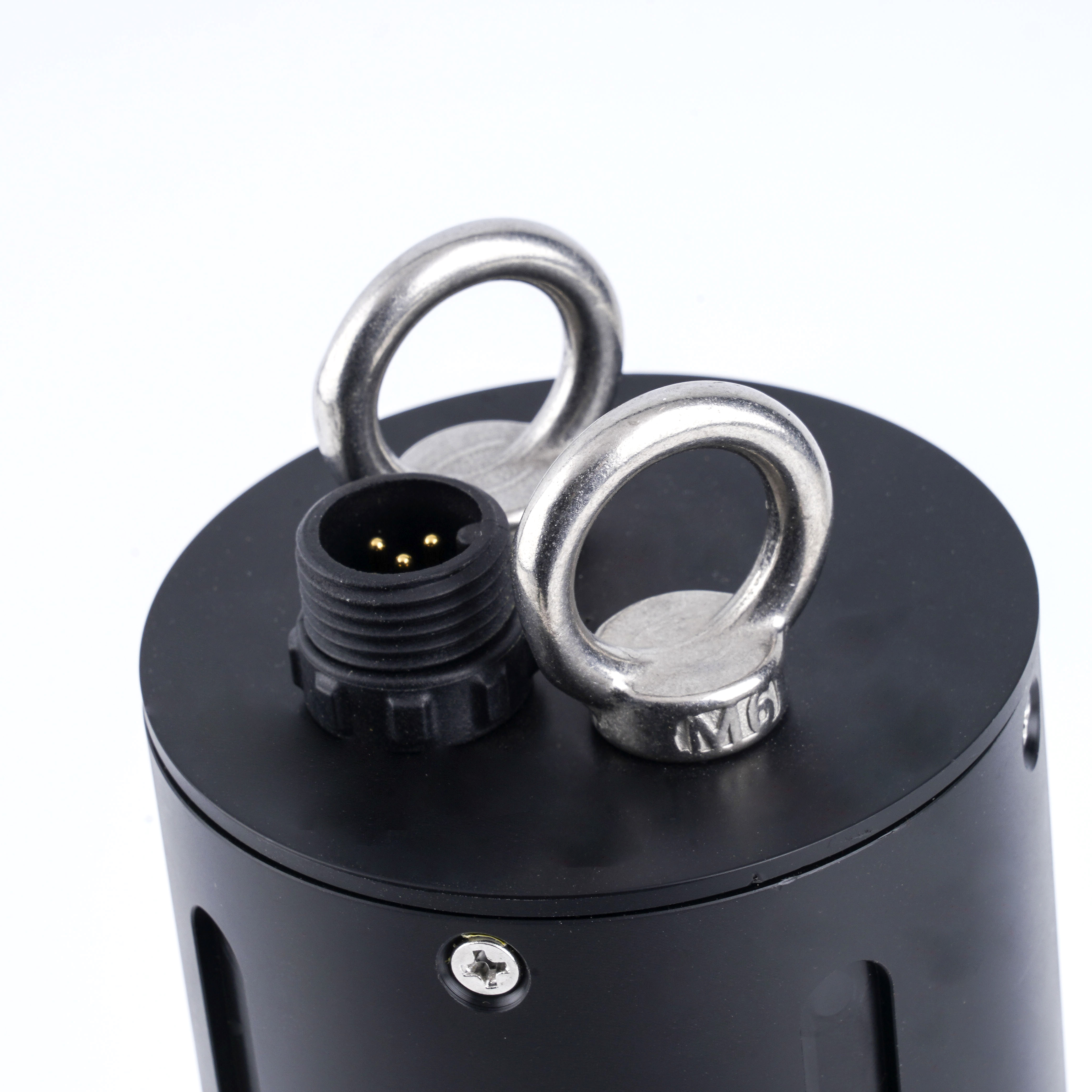

Equipped with an IP68 quick-plug waterproof connector, easy to disassemble.

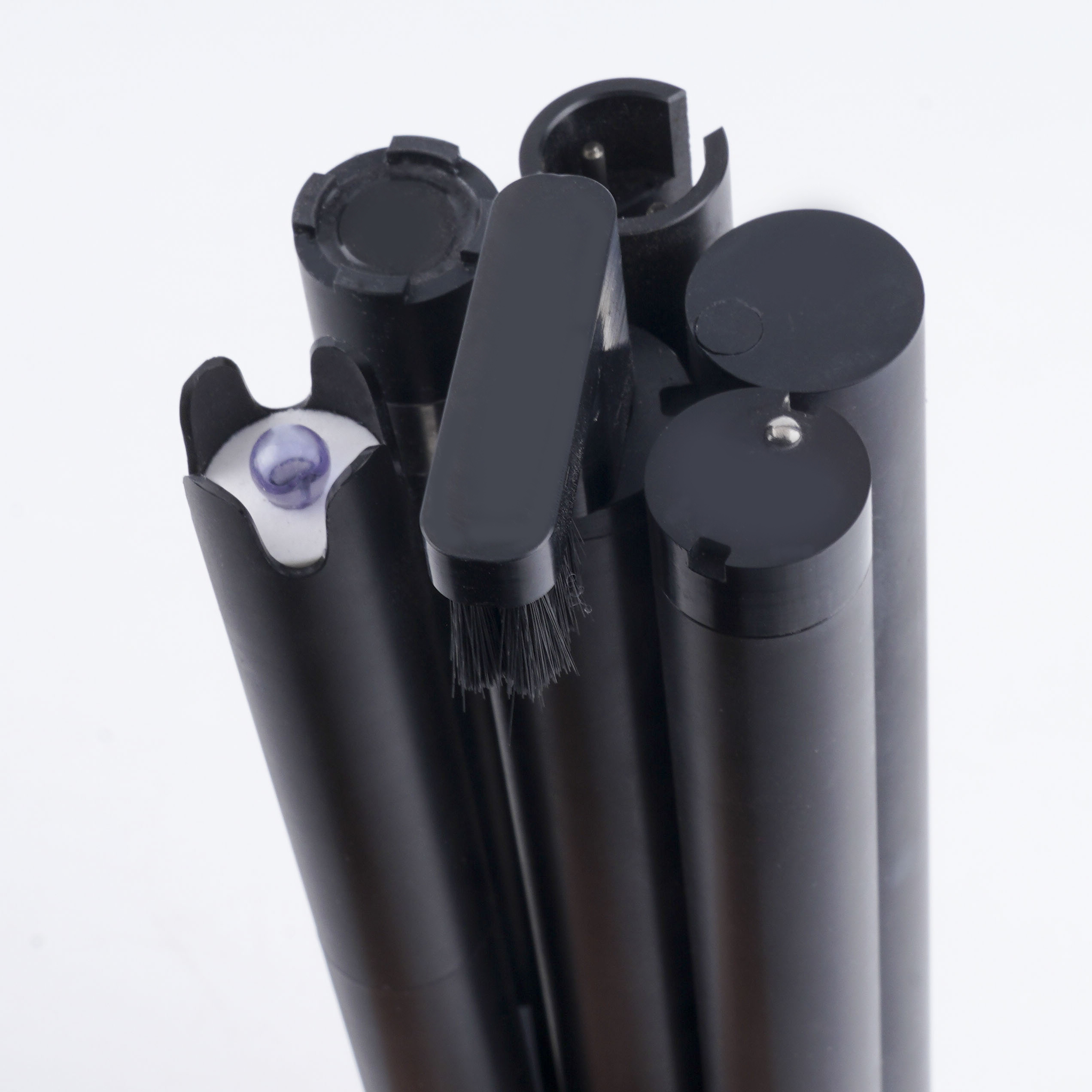

Equipped with an automatic cleaning device, it can effectively clean the sensor surface, prevent microorganisms from attaching, and reduce maintenance costs.

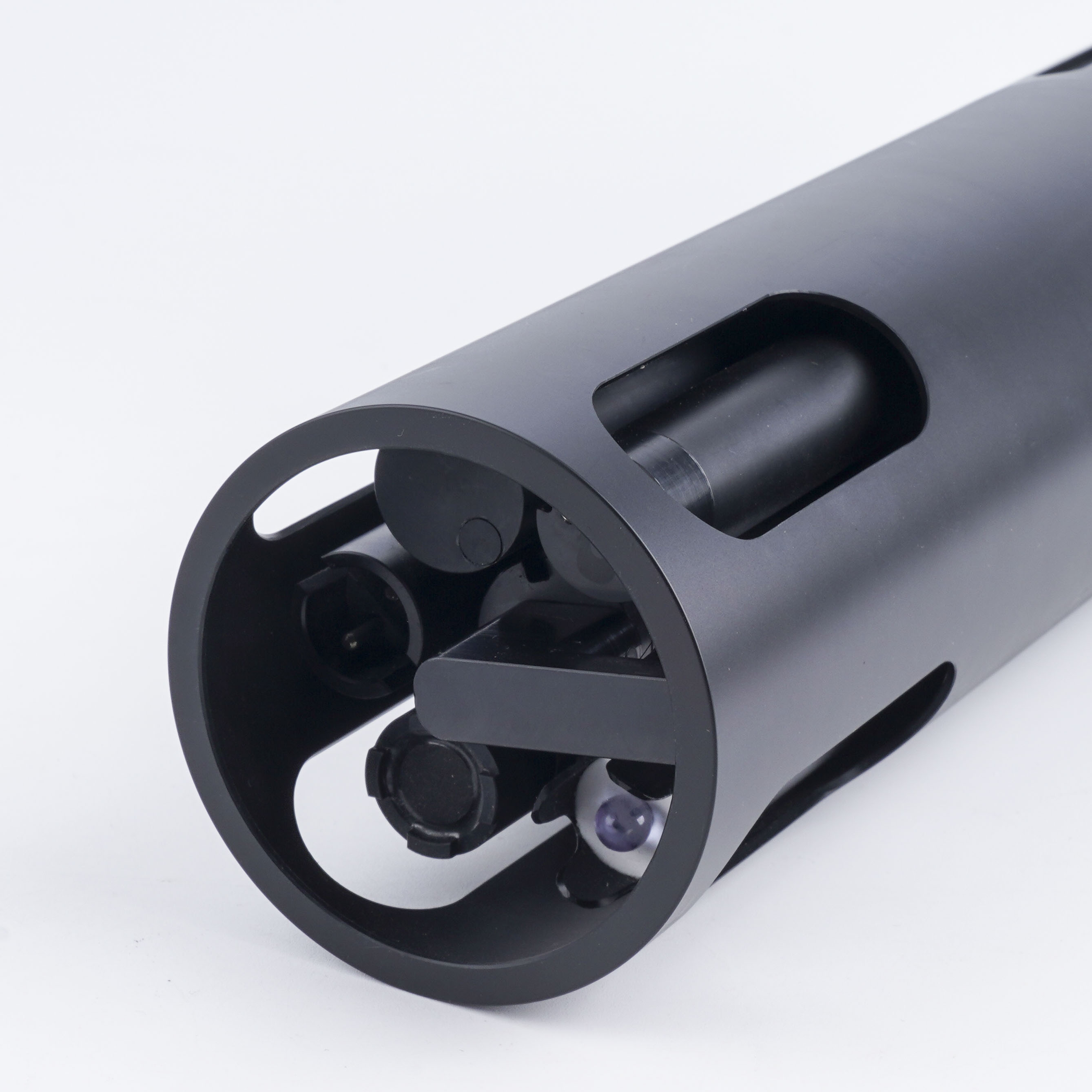

The front-end protective cover effectively prevents foreign objects and biological damage to the probe
