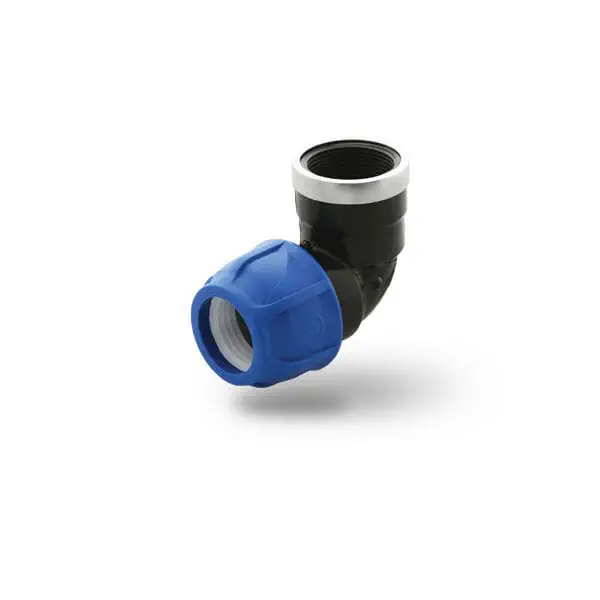

Female Elbow (Stainless Steel Reinforcement Ring)

(0 reviews)

Get Price

(33) Views

(0) Contacts

Contact Company

Poelsan

Samsun, Turkey

(1626) Views

(0) Contacts

Installation Instructions

Poelsan compression fittings should be kept away from hard or sharp objects during storage or installation phases.
If the installation is underground, it should be covered with sand to prevent contact with hard and sharp objects.
Damaged fittings shouldn’t be used under any circumstances.
To be able to get the best efficiency from Poelsan compression fittings, tee and elbow pieces should be joined at 90°, other fittings should be joined at 180° to the system.
The installation with different angles will make extra tensile on the fittings and will decrease the lifetime of the system.
The teflon bands should be used with the threaded pieces.
The band should be used enough to prevent water leakage and wrapped around the threaded part in the twisting direction.
Over-twisting the nut will cause extra tension on the adaptor. A nut, which is exposed to such an extra tension, cannot provide the guaranteed pressure value.
Therefore, the user should remember that the material is plastic and the nut should be twisted with a force only enough to prevent leakage.
Final Check of the Installation
VISUAL CHECK

During installation, the system should be checked visually in order to determine the damaged adaptors.

LEAKPROOFNESS CHECK

After the installation, the system should be checked with water under testing pressure to determine the water leak.

CONDITIONS THAT MAY CAUSE LEAKAGE
The measurements of the threads of Poelsan compression fittings are produced according to the standards.
● Unfitness of the measurements of the threads of other metal or plastic material,
● Inefficient use of the Teflon band,
● Spoiling of the threads because of the improper installation or over-twisting of the nut,
● Not chamfering the pipe during assembly causes the ring to be damaged or dislocated.
● The ovality of pipes is more than the tolerance values,
● Wrong installation, inefficient twisting, or cracking the nut by over-twisting,
● Twisting the nut and installing the adaptor without joining the locking ring and the O-ring holder may cause leakage in the system.

                                                            Configuration
                                                            elbow

                                                            Material
                                                            polypropylene, galvanized steel

                                                            Other characteristics
                                                            female

                                                            Type
                                                            threaded

                                                            Pressure Values
                                                            Ø 20 mm – Ø 110 mm : PN 16

Female Elbow applications

Urban Potable Water Networks
Landscaping Systems
Agricultural Irrigation – Greenhouses

Specifications of Female Elbow

Manufactured from high-quality polypropylene with strong impact resistance.
Conical tightening design prevents issues caused by pipe size variations or ovality.
UV-resistant structure inhibits algae and bacteria formation.
Rubber O-rings ensure leak-proof performance under high pressure.
Features a smooth, homogeneous, non-porous inner surface.
Free from harmful compounds that could affect water's taste or odour.
Female threaded versions include a corrosion-resistant reinforcing ring for reliable sealing under varying temperatures.
Thread sizes comply with ISO 7-1 Standard.
Fully compatible with ISO 17885 Standard.
