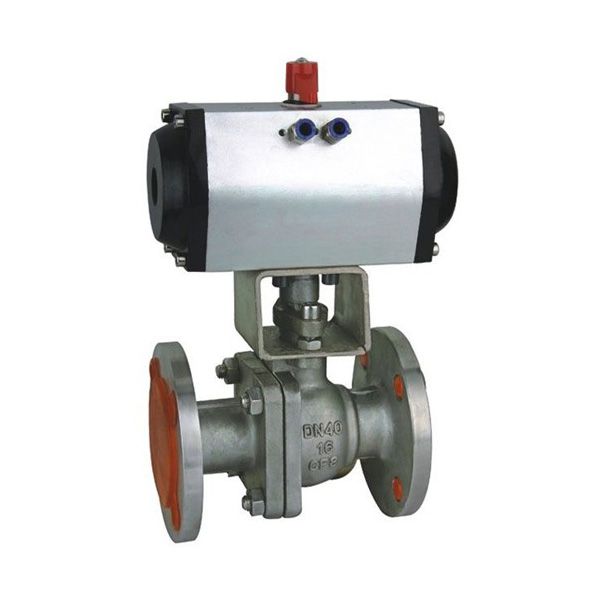

Flanged Ball Valve

(0 reviews)

Get Price

(209) Views

(0) Contacts

Contact Company

Zhejiang Akmk Automation Co., Ltd.

Zhejiang, China

(876) Views

(13) Contacts

Stainless steel flanged ball valve for on/off control of water, air, oil, and other compatible media. Spring return actuators require a pneumatic pilot signal to change the valve position, and the spring will return the valve to its normal fail-safe position. Double-acting actuators use air pressure to open the valve and air pressure to close the valve.

Technical indicators
Body: carbon steel or stainless steel
Seat: TFM or 50/50
terminal connection
ANSI 150# (1/2 to 8 inches)
ANSI 300# (1/2" to 8")
Temperature range:
Melting point: 475°F
50/50: 525°F
greatest pressure:
Maximum differential pressure is 275 PSI, WCB-285 PSI.
The hydrostatic pressure test (body) and air pressure test (seat) meet the following requirements:
ANSI 150#
Stainless Steel: 425 PSIG
Carbon Steel: 450 PSIG

Model Q641

Refinery
petrochemical
chemical process equipment
Process Control Applications
Water and Waste Applications
Pipeline application

Advantages of pneumatic ball valves over other types of valves may include:
1. Higher flow rates
2. Higher pressures
3. Higher temperatures
4. Wider media compatibility
5. Straight flow paths reduced water hammer
6. Use in hazardous environments.
