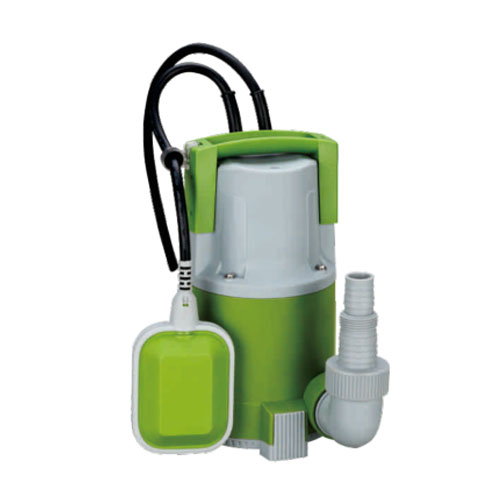

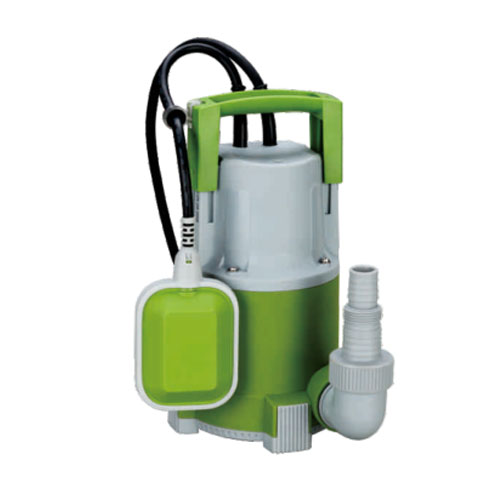

QXXX124 Plastic Submersible Pump With AdjustablePump Handle And Floater Switch

(0 reviews)

Get Price

(920) Views

(0) Contacts

100 - 500 pieces 501 - 999 pieces >= 1000 pieces
$31.50 $28.50 $25.50

Contact Company

Junhe Pumps Holding Co., Ltd.

Zhejiang, China

(3476) Views

(7) Contacts

Plastic submersible pump with an adjustable pump handle and floater switch for clean water application only.

Simple design, stable performance, and high quality make this pump become the best-selling second-generation pump range in Junhe.

Pump

Protection class:IPX8

Max.medium temperature:95℉

Plastic pump body Dia of connecting pipe: G3/4"

Lowest pump starting level: 85mm

Lowest pump sucking level: 28mm

Motor

Insulation class: E

AISI 410 shaft

Model No.	Q250124A	Q400124A	Q550124A	Q750124A	Q900124A
Rated Power	250W	400W	550W	750W	900W
Max.pump height	6m	8m	8.5m	8.5m	9.5m
Max.pump rate	6000l/h	7000l/h	11000l/h	12500l/h	15000l/h
Max.pressure	0.6bar	0.8bar	0.85bar	0.85bar	0.95bar
Dia of connecting pipe	1"G1"1-1/4"G1-1/2"	1"G1"1-1/4"G1-1/2"	1"G1"1-1/4"G1-1/2"	1"G1"1-1/4"G1-1/2"	1"G1"1-1/4"G1-1/2"
Cable specification	HO5RN-F3G0.75mm²	HO5RN-F3G0.75mm²	HO5RN-F3G1.0mm²	HO5RN-F3G1.0mm²	HO7RN-F3G1.0mm²
Lowest pump starting level	100mm	100mm	100mm	100mm	100mm
Lowest pump sucking level	5mm	5mm	5mm	5mm	5mm
Qty in carton box	4pcs	4pcs	4pcs	4pcs	4pcs
Master carton box size	46x38x35cm	46x38x35cm	46x38x35cm	46x38x37cm	46x38x37cm
Master carton box gross weight	17.5kg	18.5kg	22.5kg	23.5kg	25.5kg
Qty/20'GP	1832pcs	1832pcs	1832pcs	1732pcs	1732pcs

                                                            Warranty
                                                            1 years

                                                            Certification
                                                            RoHS/Reach/GS

                                                            Customized support
                                                            OEM, ODM

                                                            Brand Name
                                                            OEM

                                                            Model Number
                                                            Q550B124

                                                            Place of Origin
                                                            Zhejiang, China

                                                            Power Source
                                                            Electric

                                                            Liquid Temperature
                                                            Up to 35 ℃

                                                            Pressure
                                                            0.7bar

                                                            Structure
                                                            Single-stage centrifugal

                                                            Cable Length
                                                            10m

                                                            Lowest pump sucking level
                                                            40mm

                                                            Outlet Size
                                                            1"G1"1-1/4"G1-1/2"

                                                            Voltage
                                                            230V~50Hz

                                                            Power
                                                            550W(400/550/750/900W)

                                                            Color
                                                            Green/Accept customization

                                                            Pump body
                                                            Plastic

                                                            Max.pump rate
                                                            10000l/h(8000/10000/13000/14000l/h)

                                                            Lowest pump starting level
                                                            135mm

                                                            Cable specification
                                                            HO5RN-F3G0.75mm2
