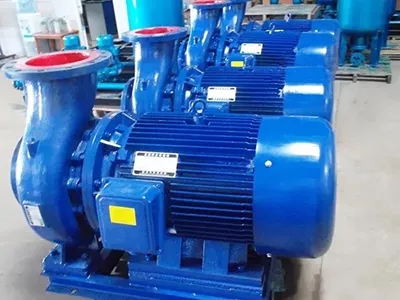

Horizontal Pipeline Centrifugal Water Pump Head 150m

(0 reviews)

Get Price

(337) Views

(0) Contacts

Contact Company

Sinooutput Group Ltd

Shanghai, China

(1886) Views

(27) Contacts

The pump is optimized and designed by a domestic advanced hydraulic model. The pipeline centrifugal pump also derives hot water pumps, high-temperature pumps, chemical pumps, oil pumps, etc. according to the temperature and medium used.

                                                            Flow (m³/h)
                                                            1-1500

                                                            Pump weight (kg)
                                                            17-2200kg

                                                            Head (m)
                                                            7-150

                                                            Efficiency(%)
                                                            19%-84%

                                                            Pressure (MPa)
                                                            1.6

                                                            Motor power(kw)
                                                            0.18-2500

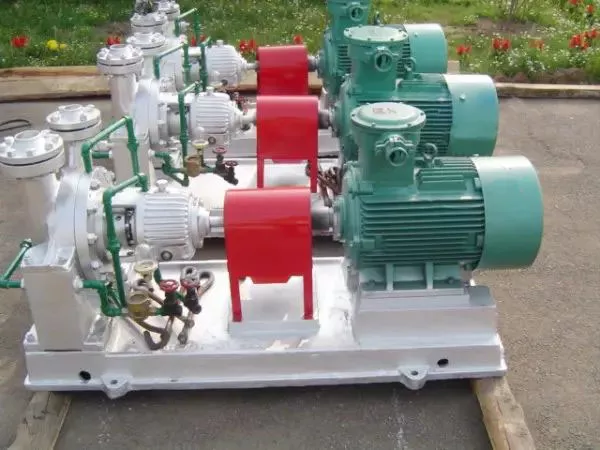

Product use 1. Horizontal pipeline pump, used for conveying clean water and other liquids with similar physical and chemical properties to clean water, suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden irrigation, fire pressurization, and equipment matching, operating temperature T: ≤ 80°C. 2. Hot water (high-temperature) circulating pump is widely used in energy, metallurgy, chemical industry, textile, and papermaking, as well as high-temperature hot water pressurized circulating transportation of boilers in hotels and restaurants and circulating pumps for urban heating systems 3. Horizontal chemical pump, for conveying liquid without solid particles, corrosive, viscosity similar to water, suitable for petroleum, chemical, metallurgy, electric power, papermaking, food, pharmaceutical, and synthetic fiber departments, using temperature T: -20 ℃-120℃. 4. Horizontal oil pump for transporting gasoline, diesel oil, kerosene, and other petroleum products, operating temperature T: -20℃-120℃.

Advantages 1. Smooth operation: the absolute concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure smooth operation without vibration. 2. Water tightness: Carbide seals of different materials ensure no leakage when conveying different media. 3. Low noise: The water pump under the two low-noise bearings runs smoothly, except for the faint sound of the motor, which basically no noise. 4. Low failure rate: The structure is simple and reasonable, the key parts are matched with internationally first-class quality, and the trouble-free working time of the whole machine is greatly improved. 5. Convenient maintenance: replacement of seals and bearings is simple and convenient. 6. Occupying less space: the outlet can be left, right, and upward, which is convenient for pipeline arrangement and installation and saves space
