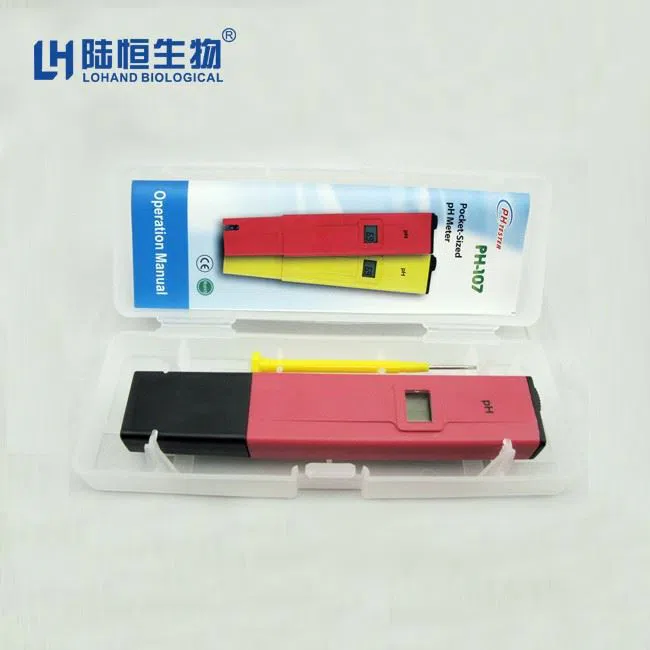

Portable Ph Test Meter

(0 reviews)

Get Price

(70) Views

(0) Contacts

Contact Company

Hangzhou Lohand Biological Technology Co.,Ltd

Zhejiang, China

(964) Views

(16) Contacts

1.Take off the protective cover.

2. And clean the electrode (the electrode is covered around the white crystalline salt, which is a normal phenomenon, as long as the pH electrode can be dissolved in water. The electrode is located and disappeared)

3. In the switch battery compartment, pH will be inserted into the measured liquid, until the liquid dips slightly bottom line. The immersion conditions allow, can make a solution to the location of the line that is slightly higher than that of the immersion

4. Stir gently until the display is stable and the display value is read.

5. After use, clean the electrode with clean water to reduce pollution.

6. A few drops of saturated KCL solution can be dripped into the protective sleeve to maintain the electrode

7. Turn off the switch and put the protective sleeve on it.
PH calibration
Insert the electrode into the standard buffer solution of the pH value of 6.86 (25 C) mixed phosphate and stir gently, and the value is stable. Adjust the correction potentiometer with a small screwdriver until the display value corresponds to the pH value of the standard buffer solution at ambient temperature. The electrode is inserted into pH4.01's Potassium phthalate two formate or pH9.18 in the standard buffer solution of borax.
The display value should be within the allowable range of error compared to the pH value of the buffer solution.

                                                            Product name
                                                            pH meter accuracy  PH-107

                                                            Weight
                                                            50 g

                                                            Range
                                                            0.0 to 14.0 pH

                                                            Resolution
                                                            0.1 pH

                                                            Accuracy
                                                            ±0.1 pH (at20°C)  ±0.2 pH

                                                            Dimensions
                                                            52x30x21 mm  (5.9x1.2x0.8")

                                                            Calibration
                                                            manual, 1 point

                                                            Environment
                                                            RH 95% max;  0 to 50°C (32 to 122°F)

                                                            Life
                                                            approx. 150 hours of use

                                                            Batteries
                                                            3 x 1.5V alkaline
