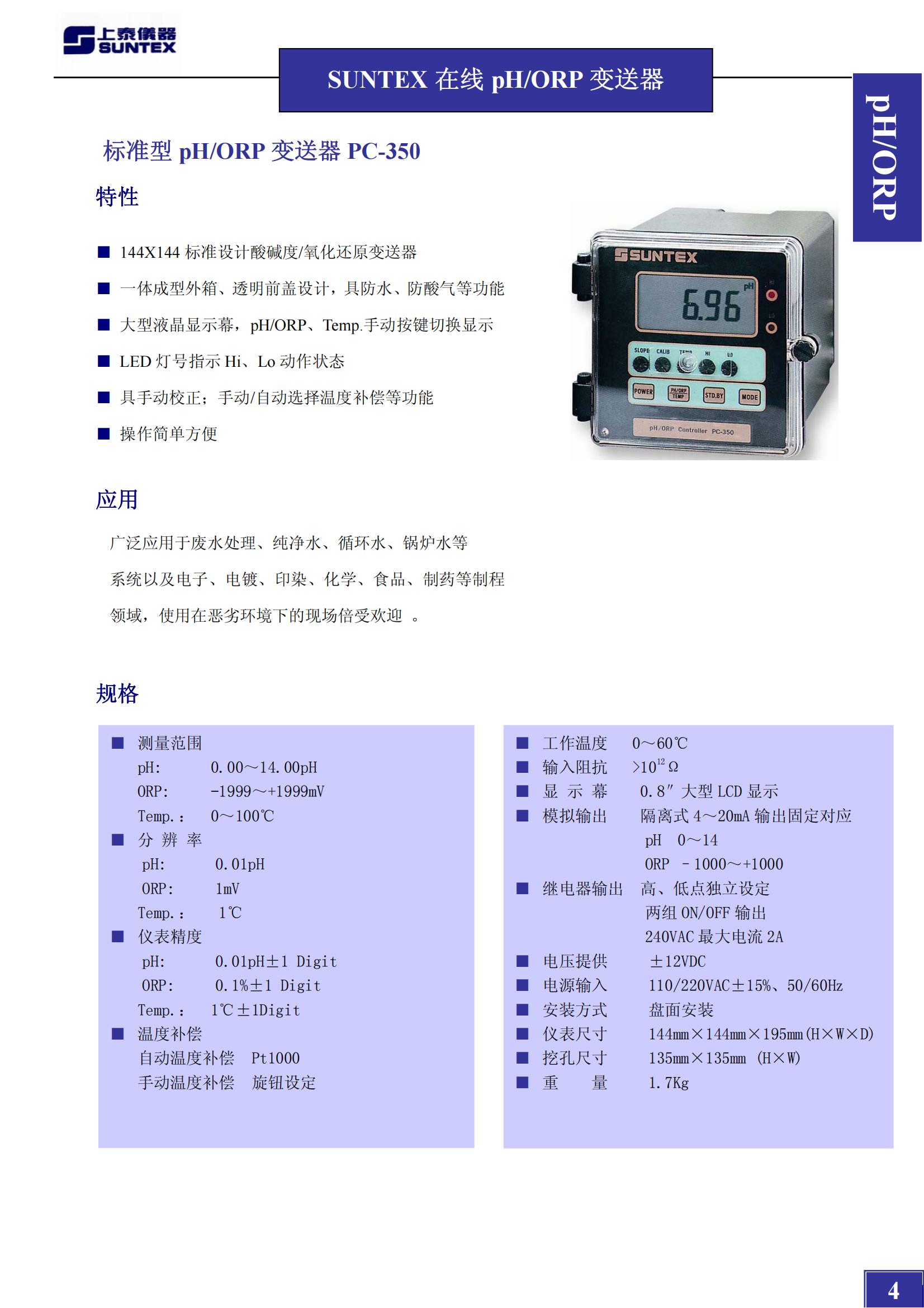

Features of Shanghai PH Meter PC-350
144X144 standard design pH / redox transmitter
One-piece outer box, transparent front cover design, with functions such as waterproof and acid gas proof
Large LCD screen, pH/ORP, Temp. manual key switch display
LED lights indicate Hi, Lo action status
With manual correction; manual/automatic selection of temperature compensation and other functions
Simple and convenient operation

                                                            Measurement range
                                                            pH: 0.00～14.00pH; ORP: -1999～+1999mV; Temp.: 0～100℃

                                                            Weight
                                                            1.7Kg

                                                            Resolution
                                                            pH: 0.01pH; ORP: 1mV; Temp.: 1℃

                                                            Instrument accuracy
                                                            pH: 0.01pH±1Digit; ORP: 0.1%±1Digit; Temp.: 1℃±1Digit

                                                            Temperature compensation
                                                            Automatic temperature compensation Pt1000, manual temperature compensation knob setting

                                                            Working temperature
                                                            0～60℃

                                                            Input impedance
                                                            >10 12 Ω

                                                            Display
                                                            0.8″ large LCD display

                                                            Analog output
                                                            Isolated 4～20mA output fixed correspondence, pH: 0～14, ORP: –1000～+1000

                                                            Relay output
                                                            independent setting of high and low points , two sets of ON/OFF output, 240VAC high current 2A

                                                            Voltage supply
                                                            ±12VDC

                                                            Power input
                                                            110/220VAC±15%, 50/60Hz

                                                            Installation method
                                                            panel installation

                                                            Instrument size
                                                            144mm×144mm×195mm(H×W×D)

                                                            Hole size
                                                            135mm×135mm (H×W)
