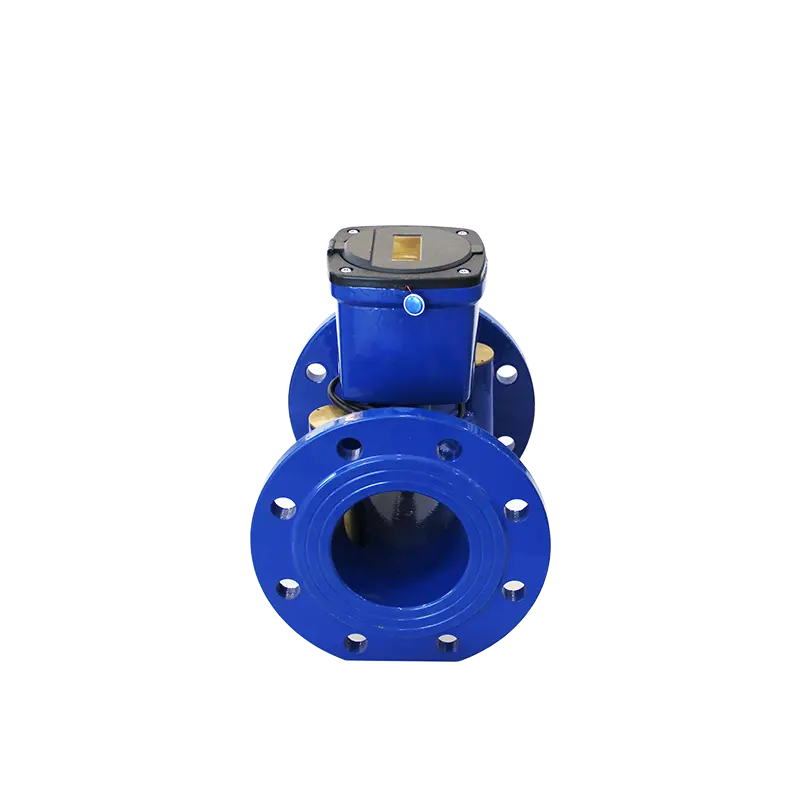

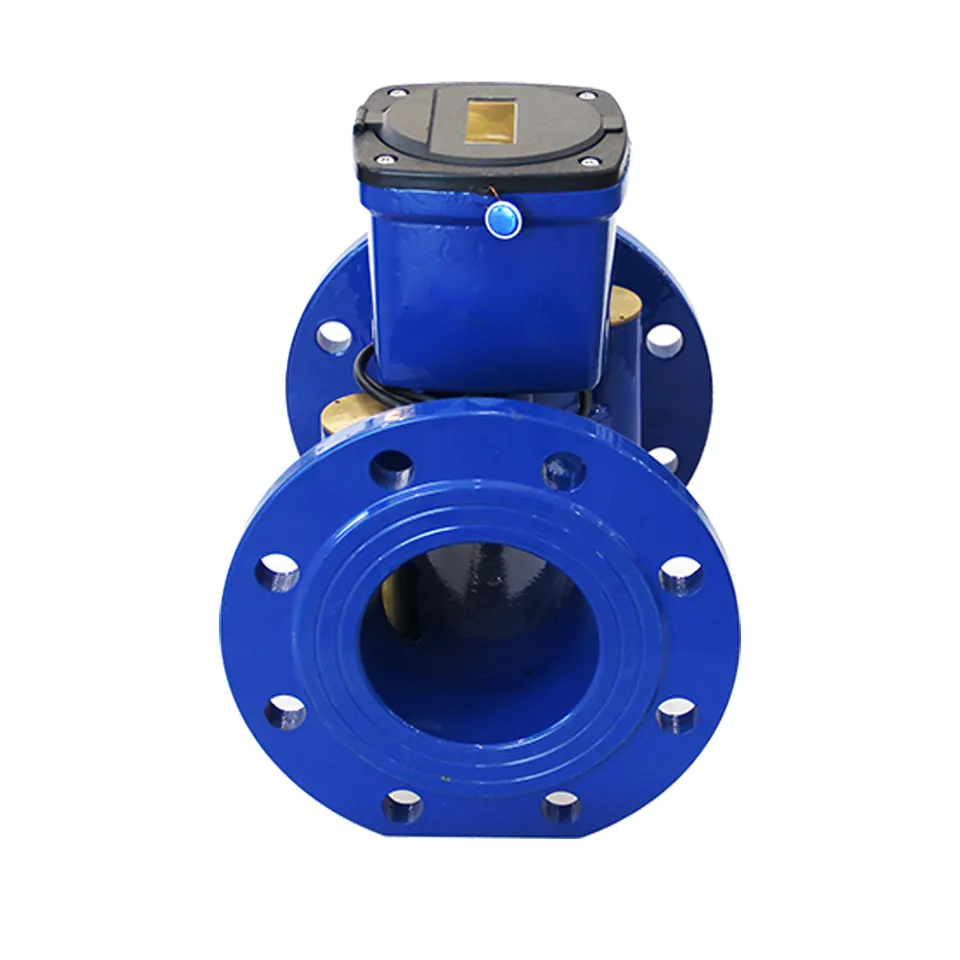

S8 Flange Ultrasonic Water Meter

(0 reviews)

Get Price

(61) Views

(0) Contacts

Contact Company

WESDOM

Henan, China

(279) Views

(4) Contacts

Description of Ultrasonic Water Meter
It is a metering instrument to continuously measure, record, and display volume of water flowing through sensor by use of ultrasonic time difference method. Please read this manual carefully before use, so as to use it to the best advantage and avoid unnecessary loss.
Composition of Ultrasonic Water Meter
It is composed of flow sensors, calculators, pipe fittings, etc., detailed as follows.
Notices for Installation of Ultrasonic Water Meter

Flush pipes before installation to avoid gravel and other foreign objects;
Please note that the arrow direction on the pipe shall be consistent with the water flow direction during installation:
Install a valve and filter before the water meter;
Do not touch the electrical part or pull wires to avoid damage during installation;
Reserve an adequate space for maintenance during installation;
When the water meter is installed in a horizontal or inclined way, the ultrasonic flow probe on pipes shall be placed horizontally, and when installed in a vertical way, make
sure the water flows from down to up.
The joint washer shall be installed correctly to avoid misaligned washer blocking water and affecting the accuracy of the water meter;
The water meter shall not be installed at a place that may be affected by strong mechanical vibrations

Installation Figure

Before using this water meter, the pipe must be filled with water, otherwise, it will lead to inaccurate or even non-measurement.
When installing the water meter, a should be reserved length of DN*10 in front of the water meter. Or should be reserved the length of DN'S behind the water meter?
The water meter shall refresh the display at every 4s, and read the water meter (including the starting value and end value) 4s at least after the valve closed when the test
the water meter, otherwise the testing results may be affected;
Project
Please make sure the medium flow is within the flow range of the water meter during test and use, otherwise, it may result in damage to the water meter;
In case of any malfunction (e.g. metering failed, etc.) during use, please contact the related management department immediately and do not repair it by yourself:
In case of any malfunction (e.g. metering fell, etc.) during use, please contact the related management department immediately and do not repair it by yourself;
