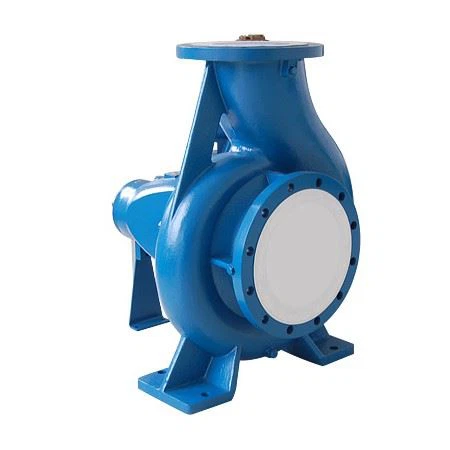

Horizontal End Suction Centrifugal Pump
(0 reviews)
Get Price
(80) Views
(0) Contacts


Contact Company

Ocean Pump Co., Ltd.
Zhejiang, China
(708) Views
(3) Contacts

Design standards
Performance and size according to European BS EN733/DIN24255 standard
Structure
Horizontal, single stage, single suction, volute type, rear opening structure
Outlet diameter (mm)
32-250
Flange standard
Standard configuration: DIN2501;
Optional configuration: ANSI B16.5Class 150lb
Pump body
Standard configuration: cast iron HT200;
Optional configuration: ductile iron QT400-18, stainless steel 304/316
Impeller
Standard configuration: Brass H65;
Optional configuration: Cast Iron HT200, Stainless Steel 304/316
Axis
Standard configuration: stainless steel 2Cr13;
Optional configuration: stainless steel 304/316, 45# steel
Shaft seal
Standard configuration: mechanical seal;
Optional configuration: packing seal

Flow(Q) 2-1100 m³/h
Head(H) 2-152m
Rated speed 1450~2900 rpm (50HZ), 1750~3500 rpm (60HZ)
Special requirements up to 1.6 MPa
Rated temperature -10 Celsius to 105 Celsius
Maximum working pressure 1.2 MPa,
