Dual Axis Solar Tracking System

(0 reviews)

Get Price

(84) Views

(0) Contacts

2 - 9 sets 10 - 49 sets
$1,090.00 $840.00
50 - 99 sets >= 100 sets
$700.00 $670.00

Contact Company

Shandong Zhaori New Energy Tech. Co., Ltd.

Shandong, China

(436) Views

(2) Contacts

Since the Earth’s rotation relative to the sun is not the same all year, with an arc varying by season, a dual-axis tracking system will consistently experience greater energy yield than its single-axis counterpart since it can follow that path directly.

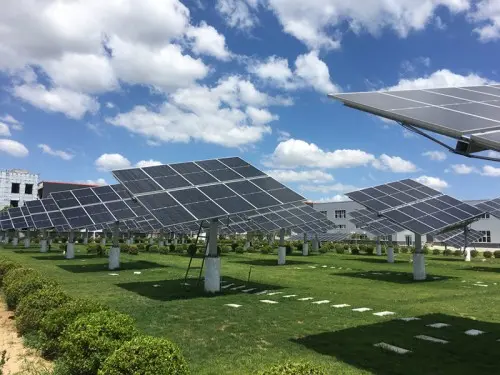

ZRD dual-axis solar tracking system has two automatic axes tracking the azimuth angle and elevation angle of the sun automatically every day. It has a straightforward structure, no back shadows for bi-facial solar panels, very easy to install and maintain. Each set mounts 6 - 10 pieces of solar panels (about 10 - 22 square meters of solar panels).
The control system of the ZRD dual-axis solar tracking system can control the driving system to track the sun according to the longitude, latitude, and local time data downloaded by the GPS device, keeping solar panels at the best angle for receiving sunlight so that it can make full use of sunlight, it produces 30% to 40% more energy yield than fixed-tilt solar systems., reduces LCOE and bring more revenue for investors.

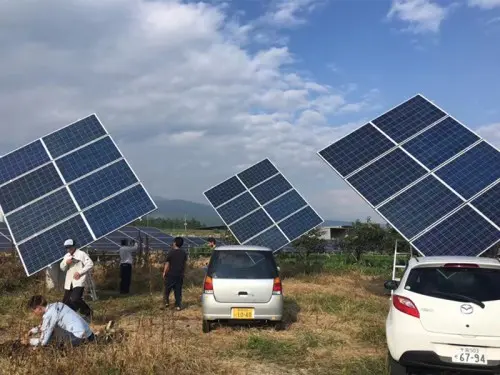

It is an independent support structure, with the best terrain adaptability, widely used in mountain projects, solar parks, green belt projects, etc.
We have been committed to the research of dual-axis tracking systems for more than 10 years. Our technical team develops all the driving and control units, specially designed for solar tracking systems. Therefore, we can control the cost of the dual-axis tracking system in a very low area, and we are using a brushless D/C motor for a driving system that has a very long service time.

                                                            Control mode
                                                            Time + GPS

                                                            Average tracking accuracy
                                                            0.1°- 2.0°(adjustable)

                                                            Total power per set
                                                            1.5kW - 5.0kW

                                                            Weight per set
                                                            150 KGS - 240 KGS

                                                            Gear motor
                                                            24V/1.5A

                                                            Output torque
                                                            5000 N·M

                                                            Tracking power consumption
                                                            ＜0.02kwh/day

                                                            Azimuth angle tracking range
                                                            ±45°

                                                            Elevation angle tracking range
                                                            45°

                                                            Max. wind resistance in horizontal
                                                            ＞40 m/s

                                                            Max. wind resistance  in operation
                                                            ＞24 m/s

                                                            Material
                                                            Hot-dipped galvanized＞65μm

                                                            System guarantee
                                                            3 years

                                                            Working temperature
                                                            -40℃ — +75℃

                                                            Technical standard & certificate
                                                            CE 、TUV
