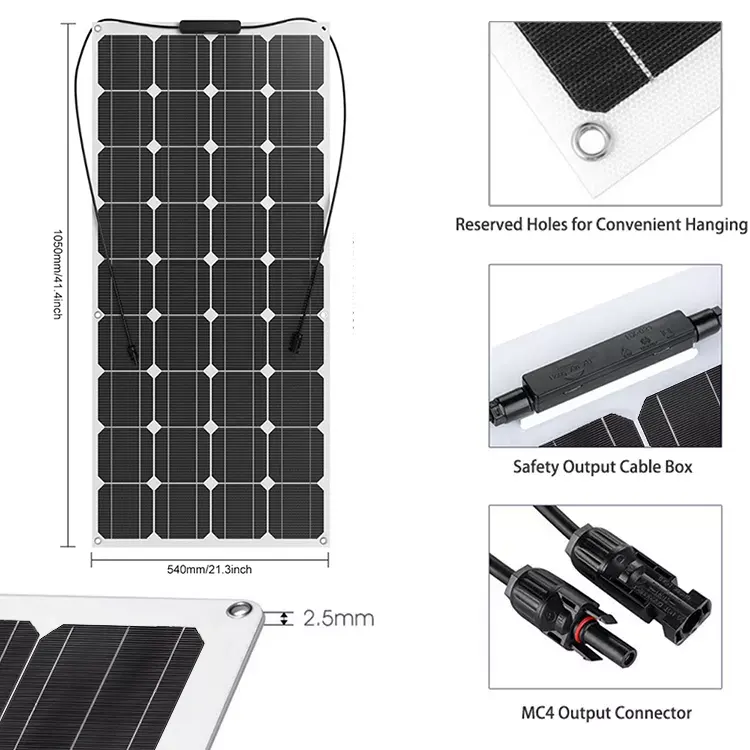

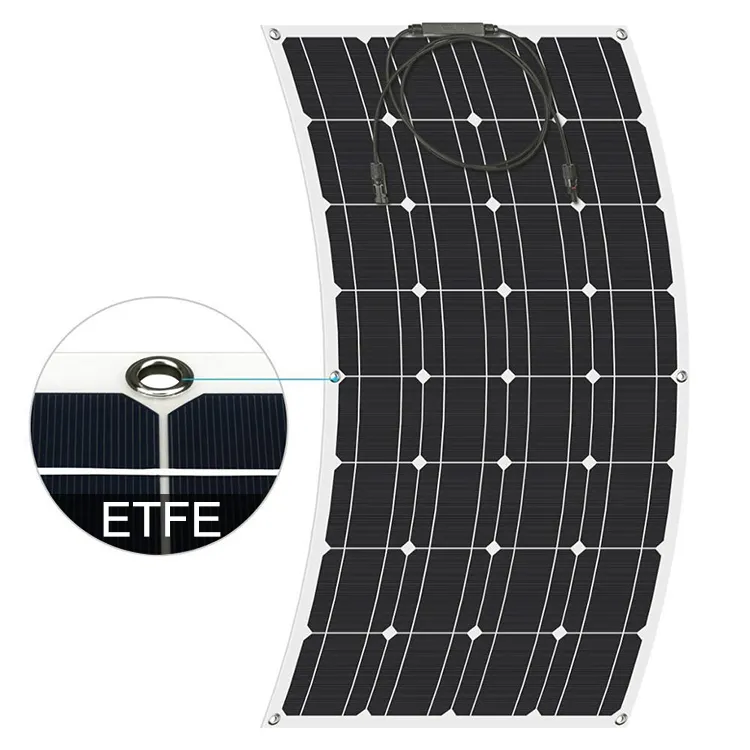

Monocrystalline Solar Panel

(0 reviews)

Get Price

(317) Views

(0) Contacts

100 - 999 watts 1000 - 99999 watts
$0.67 $0.58
100000 - 999999 watts >= 1000000 watts
$0.55 $0.49

Contact Company

Shenzhen Huada New Energy Technology Co., Ltd.

messages.no address inserted..

(1852) Views

(10) Contacts

                                                            Maximum power (Pmax）
                                                            400W 405W 410W 415W 420W

                                                            Optimum operating voltage (Vmp）
                                                            37.78V 37.82V 38.31V 38.32V 38.44V

                                                            Power tolerance
                                                            ±3%

                                                            Recommended current (Imp）
                                                            10.59A 10.72A 10.71A 10.83A 10.93A

                                                            Maximum system voltage
                                                            1000V DC

                                                            Open circuit voltage (Voc）
                                                            43.50V 43.58V 43.61A 43.66V 43.68V

                                                            Short circuit current (Isc）
                                                            11.33A 11.43A 11.44A 11.53A 11.54A

                                                            Operating temperature
                                                            -40℃ to 85℃

                                                            Short-circuit current temperature coefficient
                                                            (0.065±0.015）%/℃

                                                            Peak power temperature coefficient
                                                            -（0.5±0.05）%/℃ NOCT (Air 20℃; Sun 0.8kW/m wind 1m/s) 47±2℃

                                                            Open-circuit voltage temperature coefficient
                                                            -（80±10）mV/℃

                                                            Product certification
                                                            IEC61215, IEC61730

Monocrystalline Solar Panel Advantages
IP68 Junction Box, Connector.
IP68 Junction Box and Connector have a high degree of waterproofing. effectively resist the harsh environment.
15A current
The junction box carries a current of 1EA, ensuring a high current flow through the modules.
Super strong frame
The glue-spilled tank has a double-layer waterproof. Cross-section with a hook-shaped aluminum frame, enhanced by 10°A of the mechanical load strength.
Current division
The module refines the current division. this effectively reduces the loss of up to 2°A due to mismatch and increases the power output of the
system.
Salt spray. Ammonia and PID test
Resistance Excellent salt spray. anti-ammonia and anti-PID. TUV, SUD certification approved.
Strong Mechanical load capacity
Passed the 2400pa wind load and 5400pa snow load test ensuring that the module has a stable mechanical life.
Color Classification
Modules are packaged according to color classification. to achieve a consistent appearance after installation.
