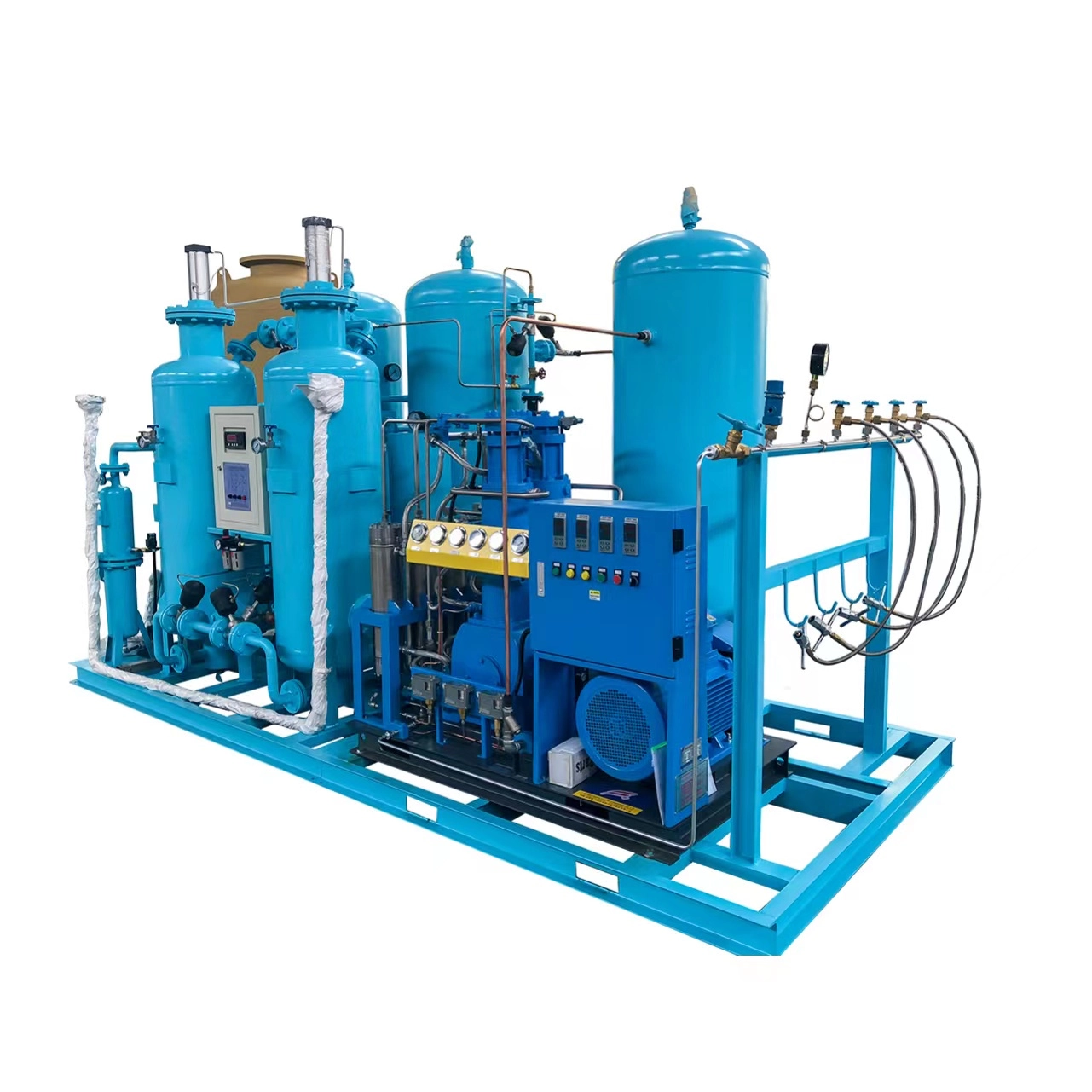

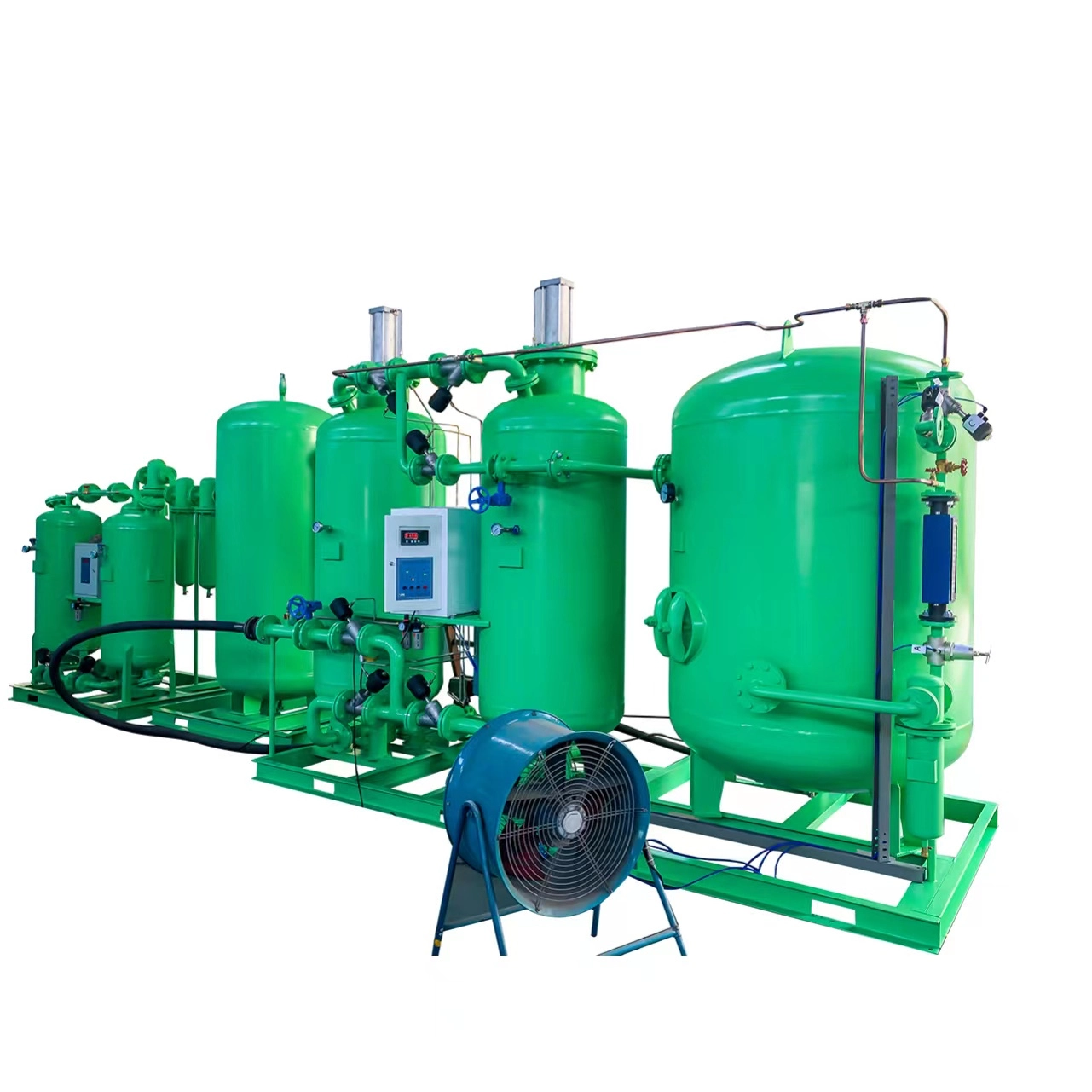

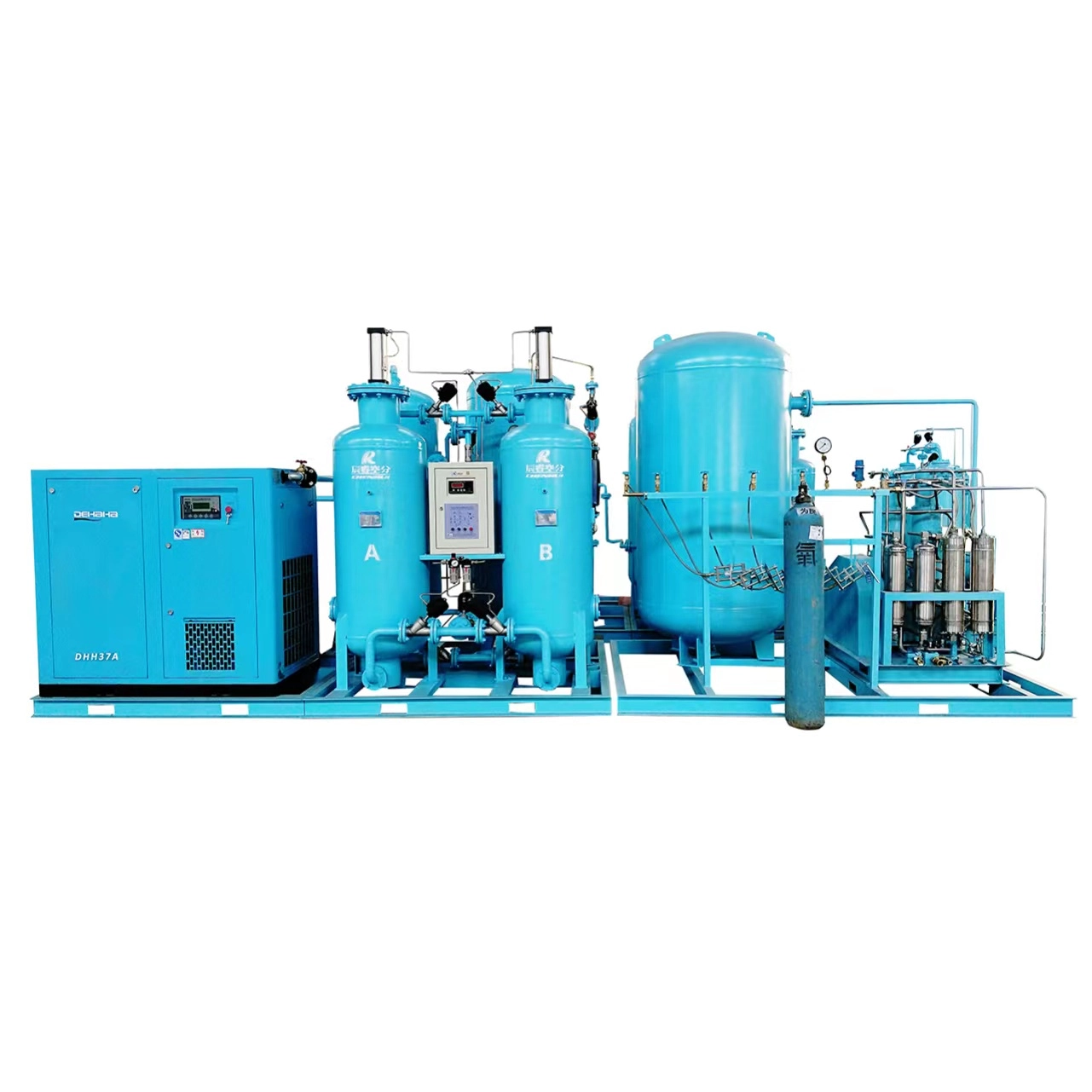

PSA Oxygen Generator

(0 reviews)

Get Price

(124) Views

(0) Contacts

Contact Company

Hangzhou Chenrui Air Separator Installation Manufacture CO., Ltd

Zhejiang, China

(301) Views

(0) Contacts

Working Principle of Oxygen Generator
PSA oxygen generator is an automatic equipment which separate oxygen from air. According to the performanceof molecular sieve, its adsorption when pressure risen and desorption when pressure loose. Molecular sieve’s surfaceand inner surface and interior are filled with micro pores. Nitrogen molecule has a faster diffusion rate of molecularsieve and oxygen molecules has a slower diffusion rate. Oxygen molecules are enriched in the end from the absorption tower. Oxygen generator is constructed according to the principle of operation PSA (pressure swing adsorption) andit
compressed by two absorption towers filled up with molecular sieve. The two absorption towers are crossed by compressed air (previously purified oil, water,dust, etc) . While one of the absorption tower produce oxygen, the other one release nitrogen gas to atmosphere. The process comes in cycle way. The generator is controlled byaPLC.

                                                            Oxygen capacity
                                                            3-200Nm3/h

                                                            Oxygen purity
                                                            90%-93%

                                                            Output pressure
                                                            0.1-0.3MPa(1-3Bar) adjustable / 15MPa filling pressure offered

Oxygen Generator Applications

Ferrous metallurgy: For electric furnace steel making, blast furnace iron making, cupola oxygen blastingandheating and cutting, etc
Non-ferrous metal refinery: It can improve productivity and reduce energy cost, also protect our
environment.
Water process: For oxygen aeration active mud process, reaeration of surface water, fish farming, industrial
oxidation process, humid oxygenation.
Customized equipment with pressure high up to 100bar, 120bar, 150bar, 200bar and 250 bar are availablefor cylinder filling.
Medical-grade O2 gas can be obtained by equipping extra purifying device for removing bacteria, dust andodor.
Others: Chemical industry production, solid garbage burning, concrete production, glass manufacturing...etc.
