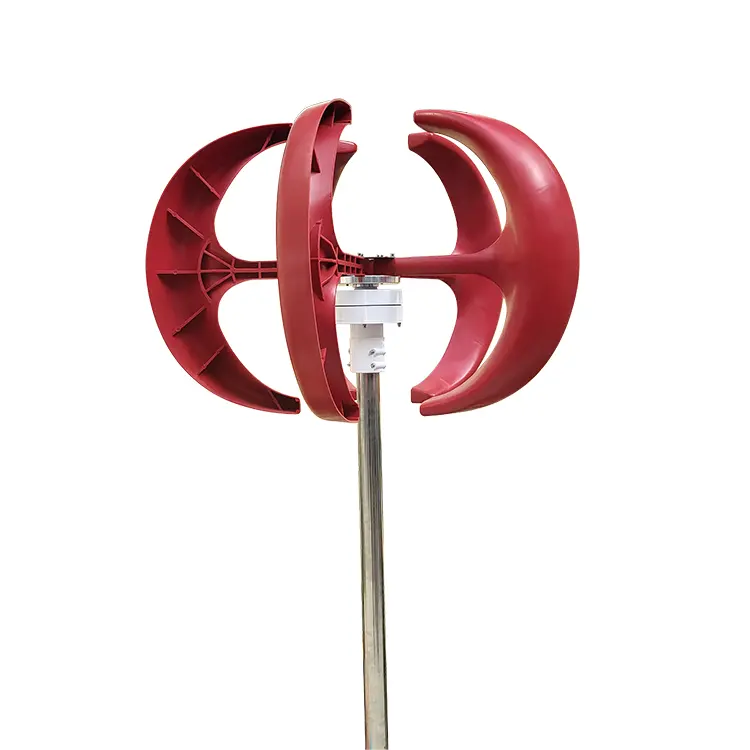

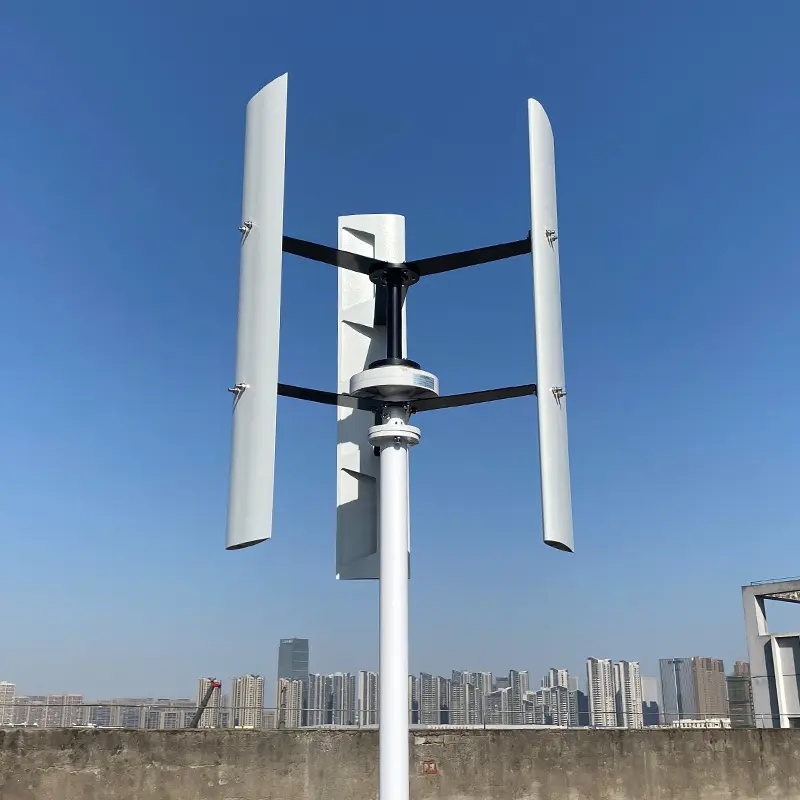

Vertical Axis Wind Turbine 400w

(0 reviews)

Get Price

(105) Views

(0) Contacts

Contact Company

Nantong R&X Energy Technology Co.,Ltd.

Jiangsu, China

(374) Views

(1) Contacts

                                                            Rated power
                                                            300W, 400W, 500W

                                                            Work temperature
                                                            -40℃-80℃

                                                            Rated voltage
                                                            12V/24V

                                                            Start up speed
                                                            1.5m/s

                                                            Rated wind speed
                                                            12m/s

                                                            Safe wind speed
                                                            40m/s

                                                            Diameter of wind wheel
                                                            1.05m, 1.25m

                                                            Wind turbine height
                                                            0.9m, 1.0m

                                                            Blades material
                                                            aluminium alloy

                                                            Dynamo
                                                            3 phase AC permanent magnet synchronous generator

                                                            Control system
                                                            electromagnetism

                                                            Speed governing
                                                            automatic adjustment windward angle

                                                            Lubricating system
                                                            Refueling lubricant

characteristics of Vertical Axis Wind Turbine
1. Low start-up wind speed, high wind energy utilization, lovely appearance, low vibration operation, and low noise.
2. Having been installed using human design, and being simple to install, maintain, and repair
3. High-quality aluminum alloy blades provide anti-corrosion performance from surface oxidation treatment. Being formed using a new, accurate injection technique, along with an improved design for the aerodynamic contour and structure, results in a high use of wind energy, which increases the annual energy output.
4. By using a revolutionary permanent magnet rotor alternator and a unique type of stator design, our generators effectively reduce the resistance torque of the generators to a level that is just a quarter of a typical generator. Wind turbine and generator might coexist while performing considerably more effectively and dependably.
