Ceramic Membrane Industrial System BNCM37-6-A

(0 reviews)

Get Price

(94) Views

(0) Contacts

Contact Company

Shandong Bona Biological Technology Group Co., Ltd.

Shandong, China

(340) Views

(0) Contacts

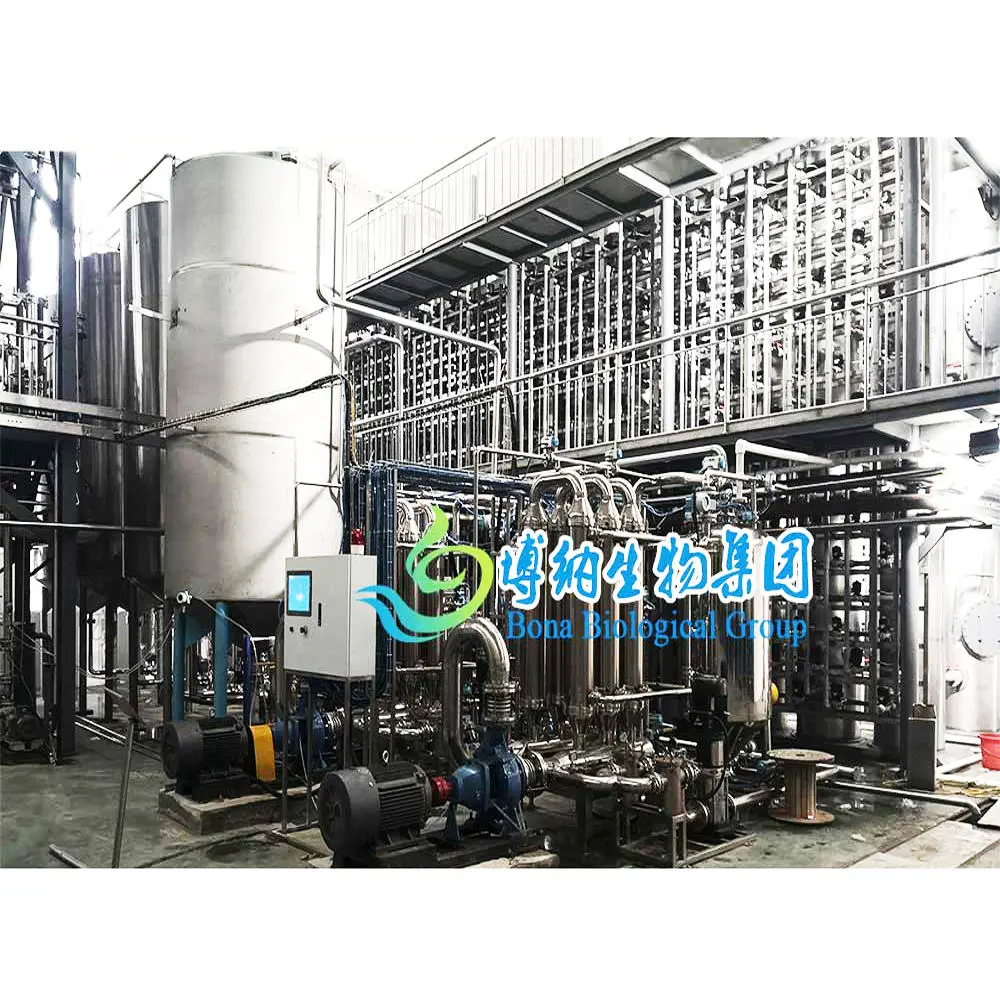

A ceramic membrane filtration system used in industrial manufacturing, the BNCM37-6-A uses automatic control. The apparatus consists of six 37-core membrane modules, each of which has 37 ceramic membrane components that can be utilized to produce operations including material and liquid concentration, separation, purification, and clarity. Ceramic membrane elements with a wavelength range of 5nm–1500nm can take its place. The feeding pump, circulating pump, slag discharge pump, ceramic membrane module, control cabinet and system pipeline, cleaning tank, etc. are the key parts of this system.

                                                            Model no.
                                                            BNCM37-6-A

                                                            Filtration area
                                                            64m2/set

                                                            Filtration Precision
                                                            As required

                                                            Filtration rate
                                                            4 - 6m3 /h (depends on the feed)

                                                            Working temperature
                                                            5 - 70℃

                                                            Working pressure
                                                            0-6 bar

                                                            PH range
                                                            0-14

                                                            Total Power
                                                            63KW

                                                            Material of overflow
                                                            SUS304

                                                            Membrane element	Model
                                                            JDM30-19-4-1200

                                                            Membrane element Length
                                                            1200±0.2mm

                                                            Membrane element Filter surface
                                                            0.286㎡

                                                            Membrane element Runner size
                                                            19channel*4mm

                                                            Membrane element OD
                                                            Φ30mm±0.1mm

                                                            Mode of control
                                                            Manual / PLC  Automatic control

                                                            Structure of system
                                                            Integrated structure.

                                                            Power demand
                                                            AC/380V/50HZ or as required

Features of Ceramic Membrane Industrial System

1. It can achieve Clarification or concentration of the feed liquid due to its homogeneous pore size distribution, which enables it to meet the filtration requirements of clients with varying degrees of precision.

2. It is performed at standard temperature under benign conditions without component damage, making it particularly ideal for materials that are sensitive to heat.

3. Modular design, which makes it simple to replace elements, regenerate online, clean, and release sewage, lower labor costs, and increase production efficiency.

4. In order to fully resolve the issue of pollution and blockage, the cross flow operation design of the system does not require the addition of filter assist and will not introduce new contaminants.
