Easy 20 Wafer

(0 reviews)

Get Price

(85) Views

(0) Contacts

Contact Company

Bortek

Istanbul, Turkey

visit website

(335) Views

(7) Contacts

                                                            Body Material
                                                            AISI 304 Stainless Steel *AISI 316L Stainless Steel *AISI 1024 Galvanized Steel

                                                            FITTINGS Miller
                                                            Dacromat500 Coated Steel *AISI 304 Stainless Steel *AISI 316L Stainless Steel

                                                            Gasket Material
                                                            EPDM (Water, Wastewater, Air, solid and chemical products are also used) *NBR (Used in hydrocarbons such as Water, Gas, Oil, Petrol etc.)

                                                            FITTINGS Bolt
                                                            Dacromat 500 Coated Steel *AISI 304 Stainless Steel *AISI 316L Stainless Steel

                                                            Size
                                                            DN 88 mm – DN 530 mm

Areas of Application:

Steel, FRP, HDPE-100, PVC, PIK, and Ductile Font.
It is applicable to ACU pipe kinds.

Characteristics of Easy 20 Wafer

EPDM has a temperature range of -20° C to +120° C and NBR has a temperature range of -20° C to +80° C.
Working pressure: maximum water pressure of 16 bar, maximum gas pressure of 6 bar.
The diameter tolerance is 20 mm.
The appropriate body width should be between 200, 250, 300, 400, and 500 mm.

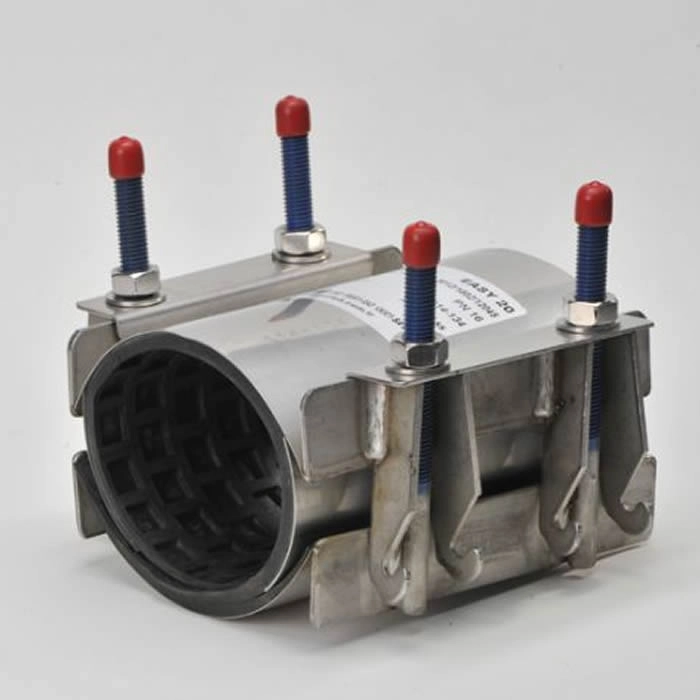

BORFLEX EASY 20 couplings have a double-piece cylindrical body and gasket.
Connections are bidirectional.
The sleeve may be opened and fastened directly to the pipes because it is double-pieced to the damaged location in the pipes.
Production is not required.
