EV DC Charging Stack

(0 reviews)

Get Price

(105) Views

(0) Contacts

Contact Company

Shenzhen Sunfly Intelligent Power Technology Co.,Ltd.

Guangdong, China

(287) Views

(0) Contacts

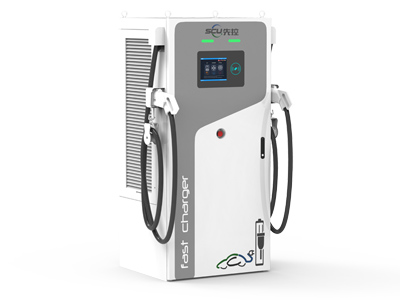

Supper EV Charging Stack 720KW
The 720 KW fully flexible DC charging pile uses a new generation of AC relay control scheme, flexible and fully flexible power distribution, and integrates the charging module, energy distribution unit PDU, charging controller, communication, and other functions. It can satisfy the arbitrary power output of a single or double gun, and the equipment has benefits such as high utilization rate, small floor area, flexible application, minimal investment, and so on. New solutions emerge as facilities evolve.

                                                            Rated power
                                                            720kw

                                                            Cooling way
                                                            Air cooling (intelligent speed regulation)

                                                            Input voltage range
                                                            AC:260-485V

                                                            Size
                                                            1250*940*1800mm

                                                            Frequency
                                                            50/60HZ

                                                            Input Voltage range
                                                            DC:200-1000V

                                                            Constant power voltage range
                                                            DC300-1000V

                                                            Payment way
                                                            Card, Scan code, Pin code, Password

                                                            Max charging AMP ( 1 port )
                                                            250A

                                                            communication port
                                                            Ethernet/4G

                                                            Power factor
                                                            ≥98%

                                                            Display
                                                            7 Inch LCD Touch screen

                                                            Efficiency
                                                            ≥95%（full load efficiency）

                                                            Protection
                                                            IP54

                                                            Noise
                                                            ≤65dB

                                                            Voltage regulation accuracy
                                                            ≤±0.5％

                                                            Out put charing port
                                                            1-12

                                                            Steady current accuracy
                                                            ≤±1％

Features of EV DC Charging Stack

The entire matrix mode is used for energy allocation, and any module can be assigned to any charging gun.
Energy allocation plan, support allocation based on needs, allocation based on priority, automatic allocation based on Soc level, and so on.
Single and dual terminal charging are supported.
Support simultaneous high-power dual-gun charging, as well as any two guns across piles charging at the same time.
Support single liquid cooling overcharging; allow users to create their own secondary development based on system setup. The charging interface in the same power cabinet supports 1-12 guns, and the number of charging guns can be arbitrarily set.
Adopt the CAN networking method for high real-time control and reliable communication, which is especially suitable for network connection between medium and large stations.
Powerful fault location feature, covering more than 95% of system component status monitoring, and prompt information of component failures is clear and precise, making after-sales and maintenance easier.
