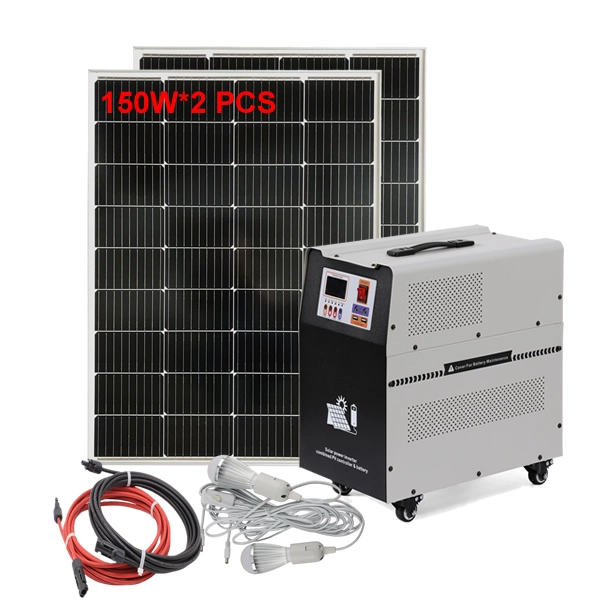

500W/24V Portable Solar Generator

(0 reviews)

Get Price

(418) Views

(0) Contacts

Contact Company

Foshan Nanhai Senhu Optoelectronics Technology Co., Ltd

Guangdong, China

(1376) Views

(2) Contacts

                                                            Model
                                                            SHW500W-24V

                                                            Humidity
                                                            0-90%  No condensation

                                                            Rated Power
                                                            500W

                                                            Product Size
                                                            450mm×263mm×476mm

                                                            Gross Weight
                                                            47.5KG

                                                            Package Size
                                                            530mm×350mm×540mm

                                                            Net Weight
                                                            44.5KG

                                                            Battery Voltage
                                                            24V

                                                            Operating Ambient Temperature
                                                            0℃ ~ 40℃

                                                            Built-in Battery Specs
                                                            2×55Ah/12V

                                                            Storage Ambient Temperature
                                                            -25℃ ~ +55℃

                                                            Output Voltage
                                                            220VAC/110VAC

                                                            Output Port
                                                            2×12V/2A Maximum

                                                            Output Frequency
                                                            50Hz/60Hz

                                                            Output waveform
                                                            Pure Sine Wave

                                                            Rated Voltage
                                                            220VAC/110VAC

                                                            Charging Current
                                                            10A

                                                            Max.PV Voltage
                                                            32V

                                                            Charging Voltage Range
                                                            20~50V

                                                            Rated Charging Current
                                                            30A

                                                            Max. Power
                                                            720W

                                                            Overcharge Protection Voltage
                                                            28.4V

                                                            Overcharge Recovery Voltage
                                                            28V

                                                            Float Charging Voltage
                                                            27.4V

                                                            High Voltage Protection Voltage
                                                            32V

                                                            High Voltage Recovery Voltage
                                                            30.4V

                                                            Low Voltage Protection Voltage
                                                            22V

                                                            Low Voltage Recovery Voltage
                                                            25.2V 5VDC

                                                            USB Output
                                                            2×5V/2A Maximum 12VDC

Characteristics of Portable Solar Generator

Excellent performance with dual MCU intelligent technology control.
It is possible to select between AC mode, battery mode, and energy-saving mode.
It produces a pure sine wave and can respond to a variety of loads.
Real-time running data is shown on an LCD and LED display.
Two USB rapid charging connectors for mobile phones and two 12Vdc output ports make this device both easy and practical.
Integrated battery design, no wiring or installation necessary, simply plug and play;
Overcharge protection, overvoltage protection, short circuit protection, high temperature protection, overload protection, overdischarge protection, and other features are available.

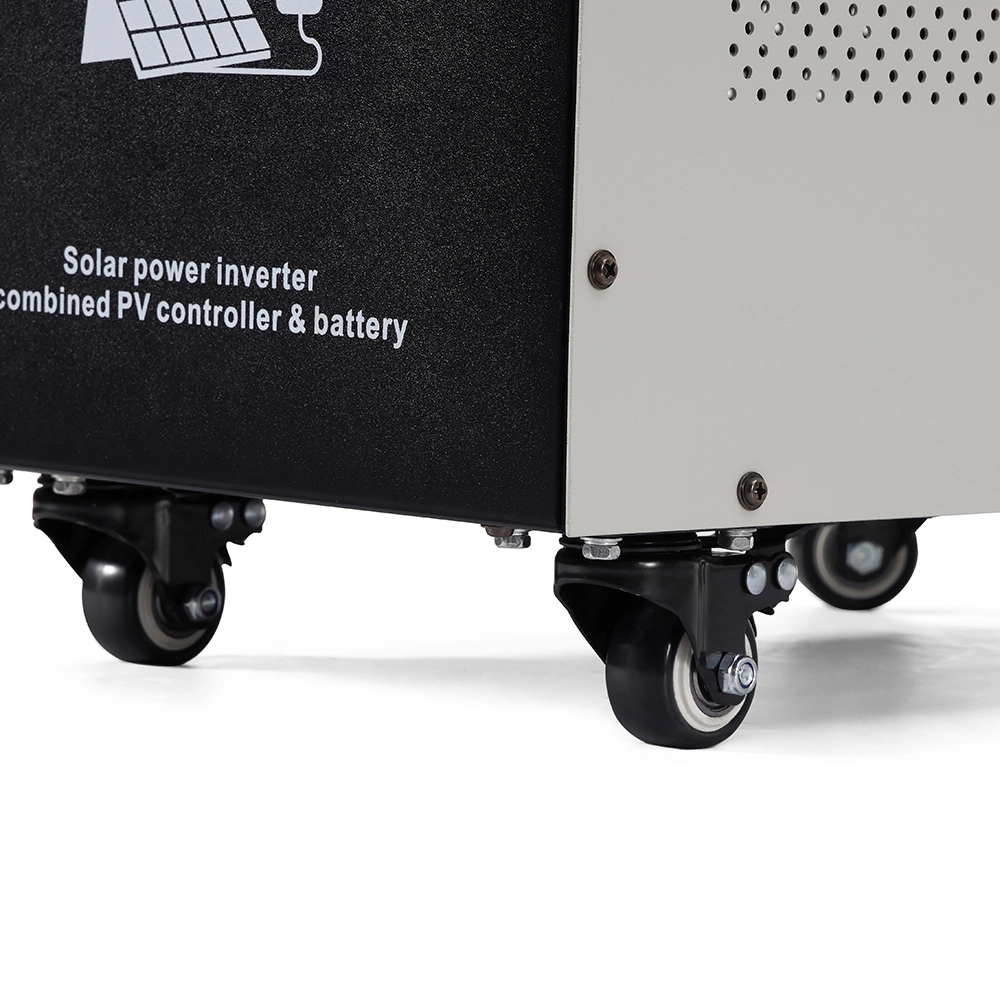

Above the 1000W model, the bottom of the machine is equipped with a wheel and brake, making it easy to move.
