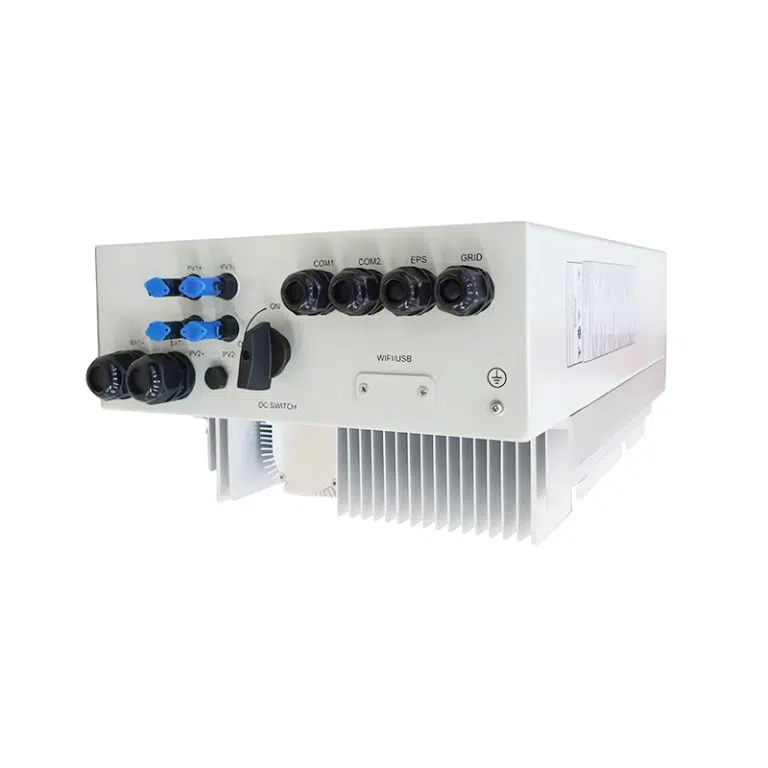

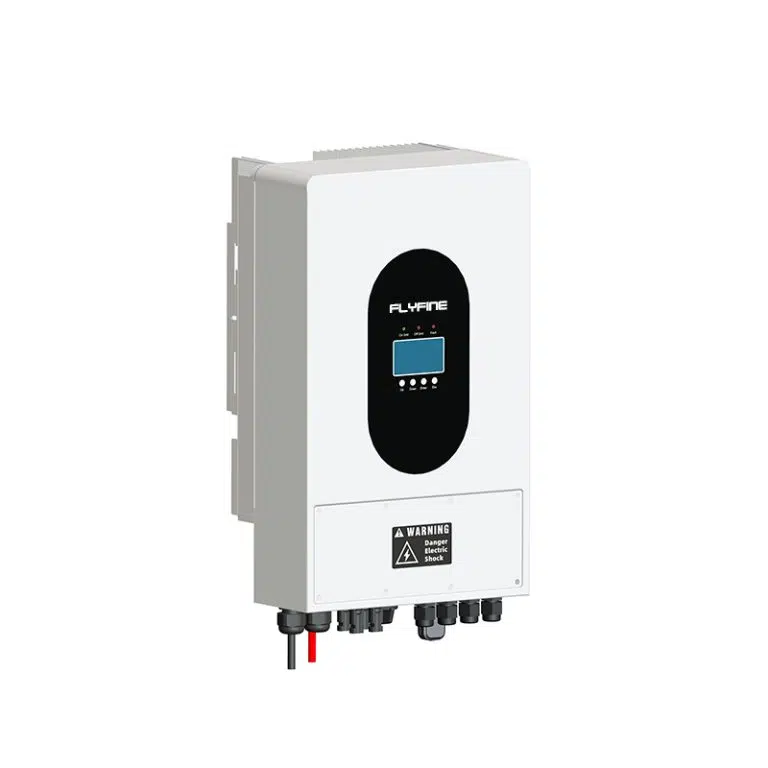

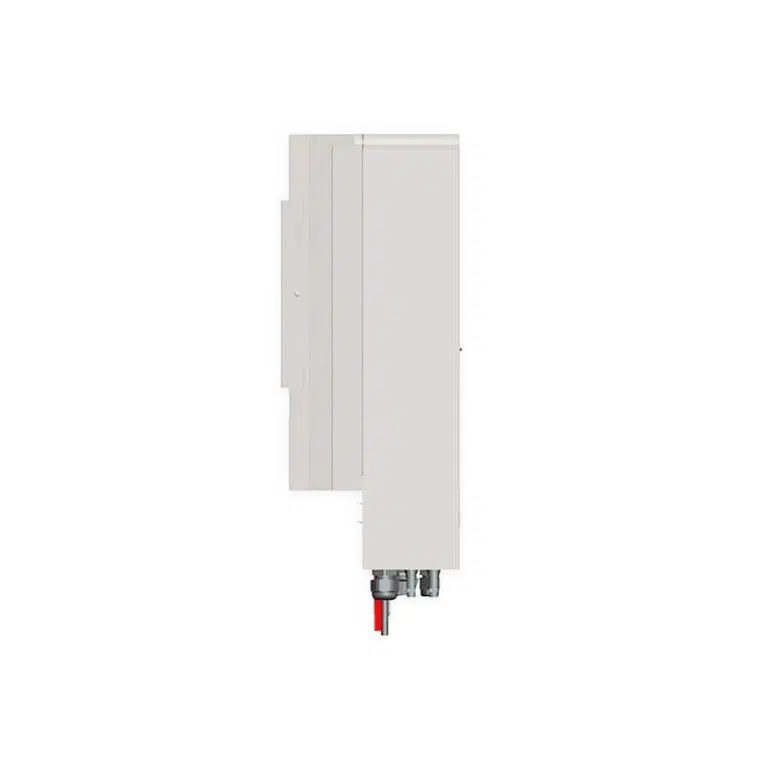

Single Phase Solar Hybrid Inverter 3/4/5KW
(0 reviews)
Get Price
(598) Views
(0) Contacts


Contact Company





Flyfine Digital Energy Co., Ltd
Guangdong, China
(2979) Views
(15) Contacts

PERFORMANCE SPECIFICATIONS
Model
FH-3600S
FH-4600S
FH-5000S
PV Input (DC)
Max. DC input power (W)
5200W
6600W
7000W
Max input current
15A/15A
Output/Input AC
Rating output power
3600W
4600W
5000W
Maximum output apparent power
3960VA
5000VA
5500VA
Max output current
17.2A
22A
23.9A
Off grid output
Max output power
3600W
4500W
4500W
Rating output voltage
230V
Battery
Max charging current
80A (PV&AC Hybrid charging)
95A (PV&AC Hybrid charging)
Max discharging current
85A
100A

Battery type Lithium battery / lead-acid battery
Weight 23.5Kg
Communication interface RS485/Can
Efficiency Max efficiency:98%; European efficiency:97%; Max discharge efficiency:95%; MPPT efficiency:99.90%
Install method Wall mounted
IP inclosure IP65
Size L*W*H 580mmx350mmx230mm
Noise <35dB
Shutdown self power consumption <3W
Warranty 5 Years (Standard)
Ambient temperature -25°C~60°C
Cooling mode Natural cooling
Ambient humidity 0-95%non-condensing
Altitude No derating below 2000m
Display LCD
Communication RS485/USB/CAN/Wifi(GPRS optional)
Certificate IEC62109-1,IEC62109-2,EN61000-6-1,EN61000-1-3,VDE-AR-N4105,EN50549,G99,CEI-021,AS/NZS4777.2,RD1699(UNE 206006 1N:2011/UNE206007-1 IN:2013/UNE 217002:2020)
Rating output voltage 230V
Rating output frequency 50Hz(60Hz Optional)
Overload capacity 110%,30S/120%10S/150%80ms
UPS switching time <20ms
Total harmonic distortion (linear load) <3%
Max PV input voltage (V) 500V
Max string quantity to each MPPT group 1
MPPT voltage range 120V-430V
MPPT quantity 2
Starting voltage 150V
PV input voltage range 150V-500V
Rating grid voltage 220V/230V/240V
Rating grid frequency 50/60Hz autotracking
Total current waveform distortion rate <3%(Rating power)
DC component <0.5%In
Power factor range >0.99@ Full power(Adjustable range 0.8 lead ~0.8 lag)
Voltage range 41.6V-58.5V

Characteristics of Single-Phase Solar Hybrid Inverter
  1. Multiple operating modes, on-grid, off-grid, and UPS MPPT control are available.
  2. Almost all 24V/48V LiFePO4 battery packs and lead-acid batteries are compatible.
  3. The integrated smart APP allows for remote diagnosis and updating.
  4. One key is used to activate the LiFePO4 battery pack and pre-charge the input stage.
  5. Maximum parallel frequency droop control is 6pcs. To retrofit an existing solar system, both DC and AC coupling are used.
