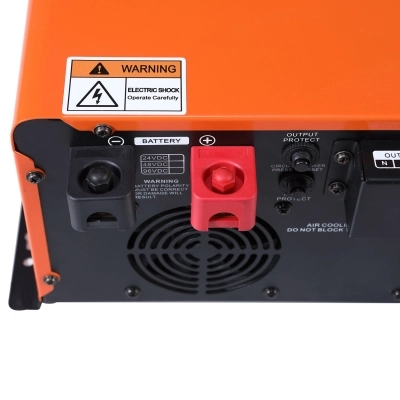

Hybrid Solar Inverter 3000W/48V

(0 reviews)

Get Price

(453) Views

(0) Contacts

Contact Company

Foshan Nanhai Senhu Optoelectronics Technology Co., Ltd

Guangdong, China

(1372) Views

(2) Contacts

                                                            Model
                                                            SHM3000

                                                            Gross Weight
                                                            24KG

                                                            Rated Power
                                                            3000W

                                                            Net Weight
                                                            22KG

                                                            Rated Voltage
                                                            48Vdc

                                                            Packing Size
                                                            580*430*240mm

                                                            AC Charging Current
                                                            Maximum 30A

                                                            Product Size
                                                            453*320*178mm

                                                            Battery Type
                                                            Lead acid /Lifepo4/ Lithium

                                                            Operating/Storage Environment
                                                            0-90%  No condensation

                                                            Voltage Range
                                                            85-138VAC / 170-275VAC

                                                            Storage Temperature
                                                            -20℃ ~ +50℃

                                                            Frequency
                                                            45-65Hz

                                                            Operating Temperature
                                                            -15℃ ~ +50℃

                                                            Output Voltage Range
                                                            110VAC / 220VAC ± 5% (Battery mode)

                                                            Float Charging Voltage
                                                            55Vdc

                                                            Frequency
                                                            50/60Hz ± 1% (Battery mode)

                                                            Equalizing Charging Voltage
                                                            56.8Vdc

                                                            Output Waveform
                                                            Pure Sine Wave Conversion Time ≤10ms Efficiency	>85% Overload	110-120% / 30S; >160% / 300ms

                                                            Rated Charging Current
                                                            60Amp

                                                            Protective Function
                                                            Battery overvoltage and low voltage protection, overload protection, short circuit protection, over temperature protection, etc.

                                                            MPPT Efficiency
                                                            ≥99%

                                                            Built-in Mppt Charger
                                                            60A

                                                            Mppt Voltage Range
                                                            65Vdc~150Vdc

                                                            PV Max. Input Power
                                                            3200W

Characteristics of Hybrid Solar Inverter

Dual MCU design, high performance.
It is possible to select between AC mode, battery mode, and energy-saving mode.
It produces a pure sine wave and can respond to a variety of loads.
With a wide input voltage range and an AC charging feature.
MPPT solar charge controller integrated, autonomous 3-stage PV charging management, safe and efficient.
Real-time display of equipment operation parameters through LCD module.
Battery overcharge protection, high voltage and low voltage protection, overload protection, short circuit protection, and over temperature. protection is all included.
